2-22
2-21

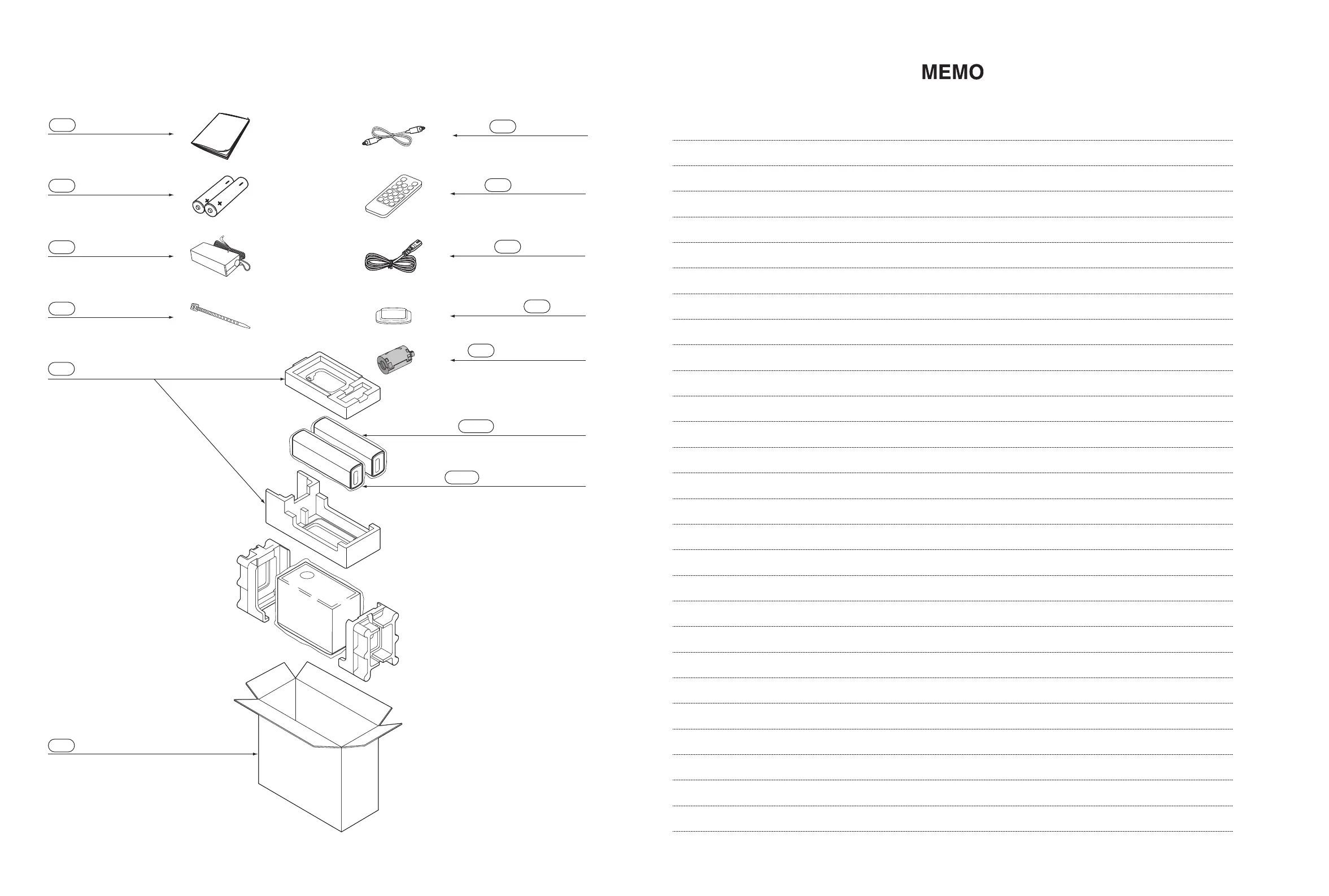

4. PACKING ACCESSORY SECTION
802 Box, Master
803 Packing, Main
300 Power cord
808 Batteries (2)
804M Bag, Primary unit
804S Bag, Secondary unit
8
0
1
Owner’s manual
833 AC adapter
9
0
0
Remote control
8
2
6
Filter (Ferrite Core)
837 Stand
829 Cable tie
806 Optical cable
34
36
