3-22
FIG 8-7. Front L
384.14 KHz
FL+
FL-
29
FIG 8-8. Front R
384.17 KHz
FR+ FR-
30
29
27
30
28

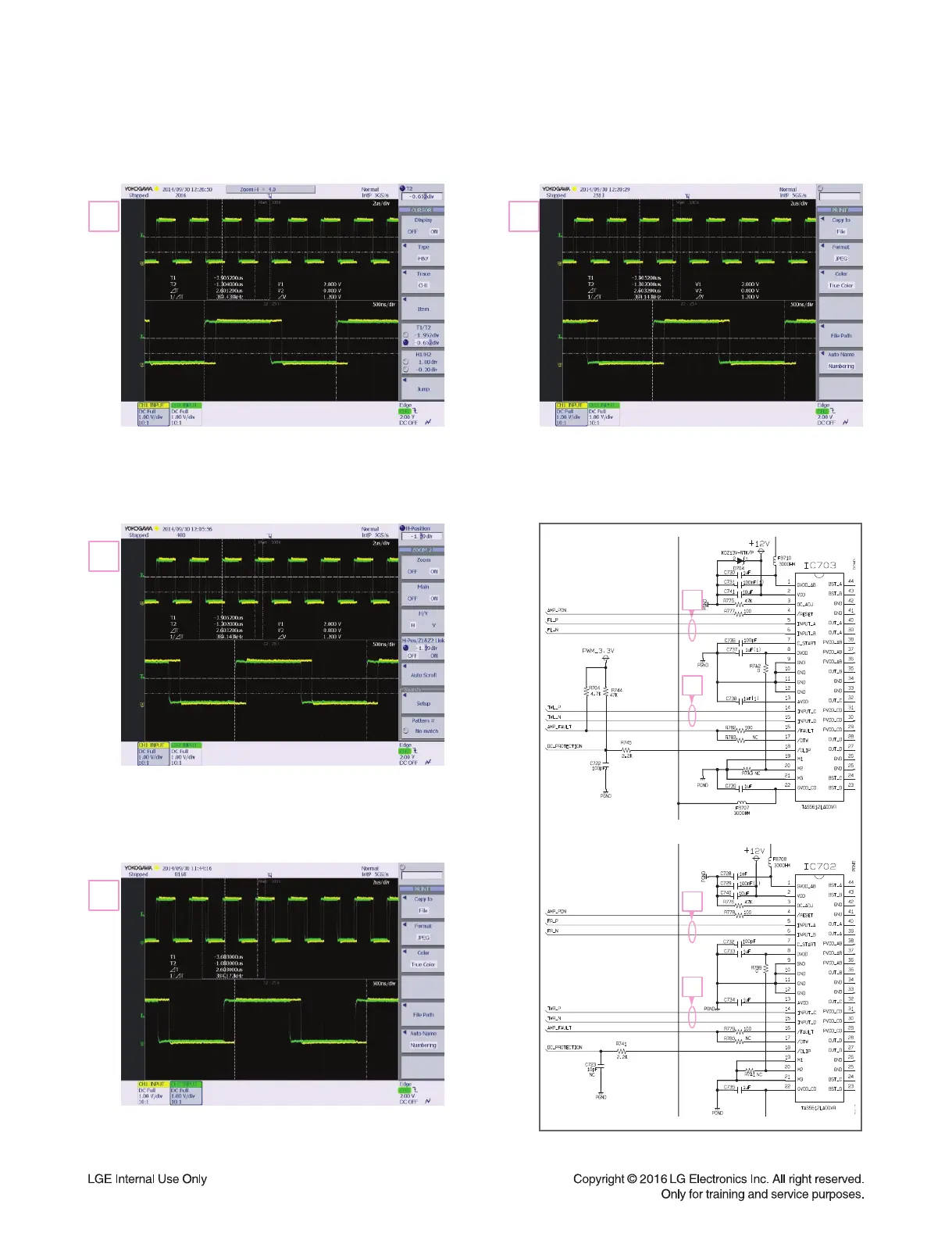

AUDIO PWM (2/2)
FIG 8-5. Tweeter L
384.14 KHz
TWL+
TWL-
27
FIG 8-6. Tweeter R
384.17 KHz
TWR+ TWR-
28
