Connecting 23
Connecting
2
Additional information for HDMI
y
When you connect an HDMI or DVI compatible
device make sure of the following:
- Try switching off the HDMI/DVI device and this
unit. Next, switch on the HDMI/DVI device and
leave it for around 30 seconds, then switch on
this unit.
- The connected device’s video input is set
correctly for this unit.
- The connected device is compatible with
720 x 576p (or 480p), 1280 x 720p,
1920 x 1080i, 1920 x 1080p, 4096 x 2160p
or 3840 x 2160p video input.
y
Not all HDCP-compatible HDMI or DVI devices will
work with this unit.
- The picture will not be displayed properly with
non-HDCP device.
y
If a connected HDMI device does not accept
the audio output of the unit, the HDMI
device’s audio sound may be distorted or may
not output.
y
Changing the resolution when the connection
has already been established may result in
malfunctions. To solve the problem, turn off
the unit and then turn it on again.
y
When the HDMI connection with HDCP is not
veried, TV screen is changed to black screen.
In this case, check the HDMI connection, or
disconnect the HDMI cable.
y
If there are noises or lines on the screen,
please check the HDMI cable (length is
generally limited to 4.5 m(15 ft)).
y
You cannot change the video resolution in the
HDMI mode. Change the video resolution of
the connected component.
y
If the video output signal is abnormal when
your personal computer is connected to HDMI
IN jack, change the resolution of your personal
computer to 576p (or 480p), 720p, 1080i or
1080p.
,
Note

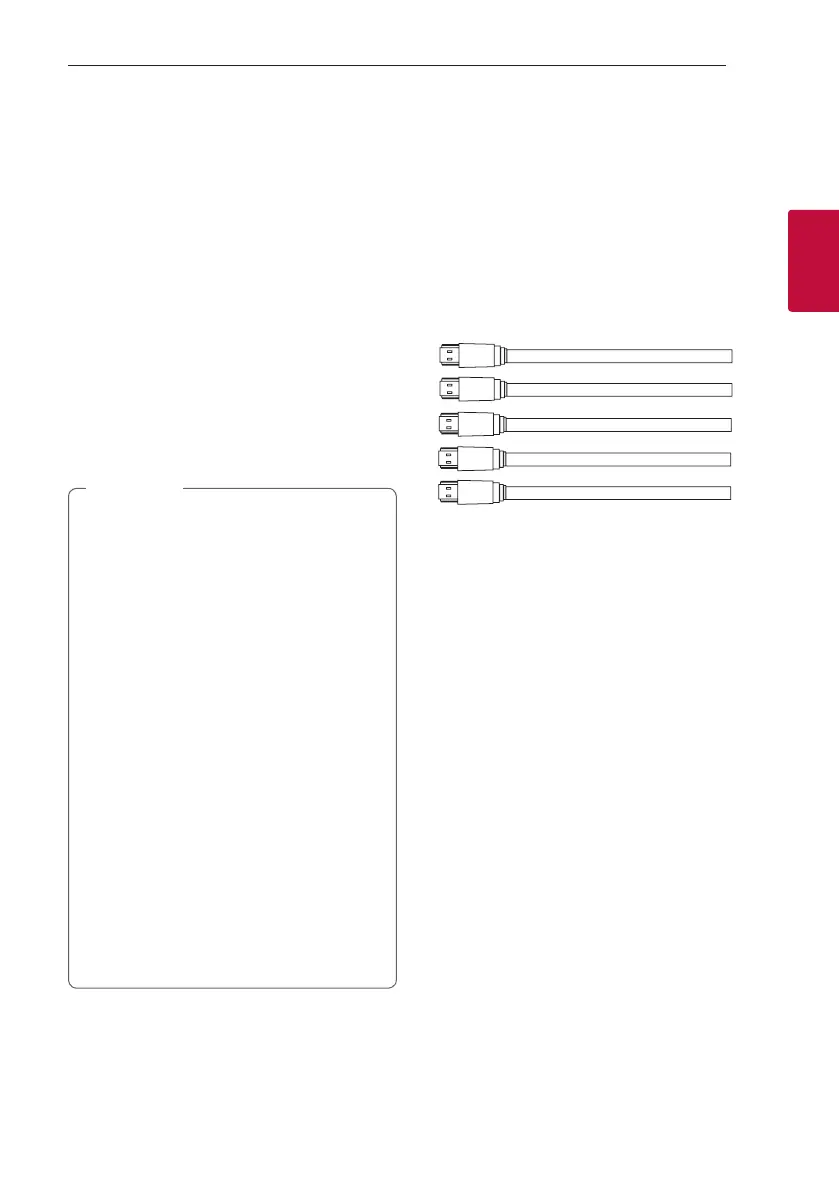

HDMI cable Checklist
Some HDMI cables have poor signal transmission,
which can cause problems with sound and video
transmission.
Even after HDMI cable connections, if no sound,
sound interrupted, noise occurring from the sound
bar and/or no video, no smooth video on your TV, the
HDMI cable may be the problem.
Use the cable marked with the premium HDMI
certication logo. We recommend using “High Speed
HDMI Cable with Ethernet” or later version.
STANDARD HDMI CABLE WITH ETHERNET
HIGH SPEED HDMI CABLE
HIGH SPEED HDMI CABLE WITH ETHERNET
(X)
(X)
(O)
Premium High Speed HDMI® Cable with Ethernet
ULTRA HIGH SPEED HDMI® CABLE
(O)
(O)
Connection through HDMI Cable*
Your television must support the newest HDMI
features (HDMI CEC
1)
/ ARC (Audio Return Channel))
to fully enjoy the Live broadcasting channel with
audio system through an HDMI cable. Unless your
TV supports these HDMI features, the audio system
should be connected through an OPTICAL cable.
1) HDMI CEC (High-Denition Multimedia Interface
Consumer Electronics Control)
Consumer Electronics Control (CEC) is an HDMI
feature designed to allow the user to command and
control the CEC-enabled devices, that are connected
through HDMI by using only one of their remote
controls.
* Trade names for CEC are SimpLink (LG) , Anynet+
(Samsung), BRAVIA Sync (Sony), EasyLink (Philips),
etc.

LG SPM7A Specifications

General

Display type	LCD
Product color	Black
Built-in display	Yes
Audio formats supported	AAC, LPCM, MP3, OGG, WAV
High Dynamic Range (HDR) technology	High Dynamic Range 10 (HDR10)
Audio decoders	DTS Digital Surround, DTS-HD HR, DTS-HD Master Audio, DTS:X, Dolby Atmos, Dolby Digital, Dolby Digital Plus, Dolby TrueHD
Equalizer modes	AI Sound Pro, Bass Blast, Bass Blast+, Movie, Music, Standard
RMS rated power	- W
Audio output channels	3.1.2 channels
Center speaker RMS power	30 W
Front speakers RMS power	60 W
Audio sample rate (24bit)	96 kHz
Soundbar speaker RMS power	90 W
Subwoofer type	Active subwoofer
Subwoofer connectivity	Wireless
Soundbar power consumption	38 W
Power consumption (standby)	0.5 W
Subwoofer power consumption	33 W
Cables included	Optical
Number of products included	1 pc(s)
Package type	Box
Package depth	589.28 mm
Package width	982.98 mm
Package height	226.06 mm
Package weight	11748 g
Wi-Fi	No
HDMI in	1
HDCP version	2.3
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Connectivity technology	Wired & Wireless

Weight and Dimensions

Depth	119.38 mm
Width	899.16 mm
Height	66.04 mm
Soundbar weight	3719.46 g
Subwoofer depth	292.1 mm
Subwoofer width	180.34 mm
Subwoofer height	391.16 mm
Subwoofer weight	7801.8 g
