LG StudioWorks 570LE - Disassembly

- 8 -

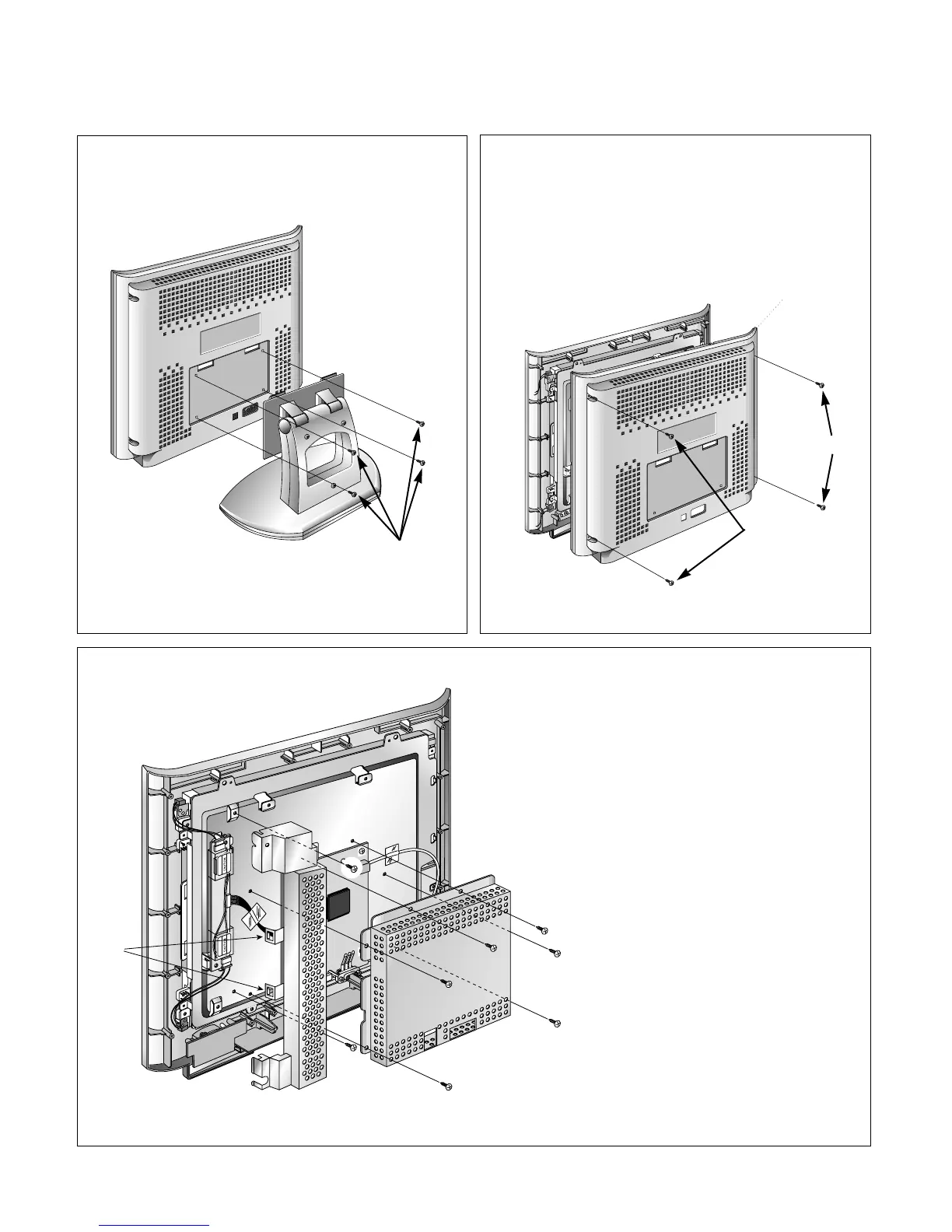

DISASSEMBLY
(a)
1. TILT/SWIVEL REMOVAL
(1) Remove four screws (a).
(2) Remove the Tilt/swivel.
2. BACK COVER REMOVAL
(1) Remove four screws (a) from the Back Cover.
(2) Remove the Back Cover.
3. TOP SHIELD & INVERTER SHIELD REMOVAL
(1) Remove six screws (a).
(2) Remove the Top Shield.
(3) Remove two screws (b).
(4) Release two latchs (c).
(5) Remove the Inverter Shield.
(b)
(b)
(a)
(a)
(a)
(a)
(a)
(c)
(a)
(a)
(a)
Back Cover
