12
INSTALLATION

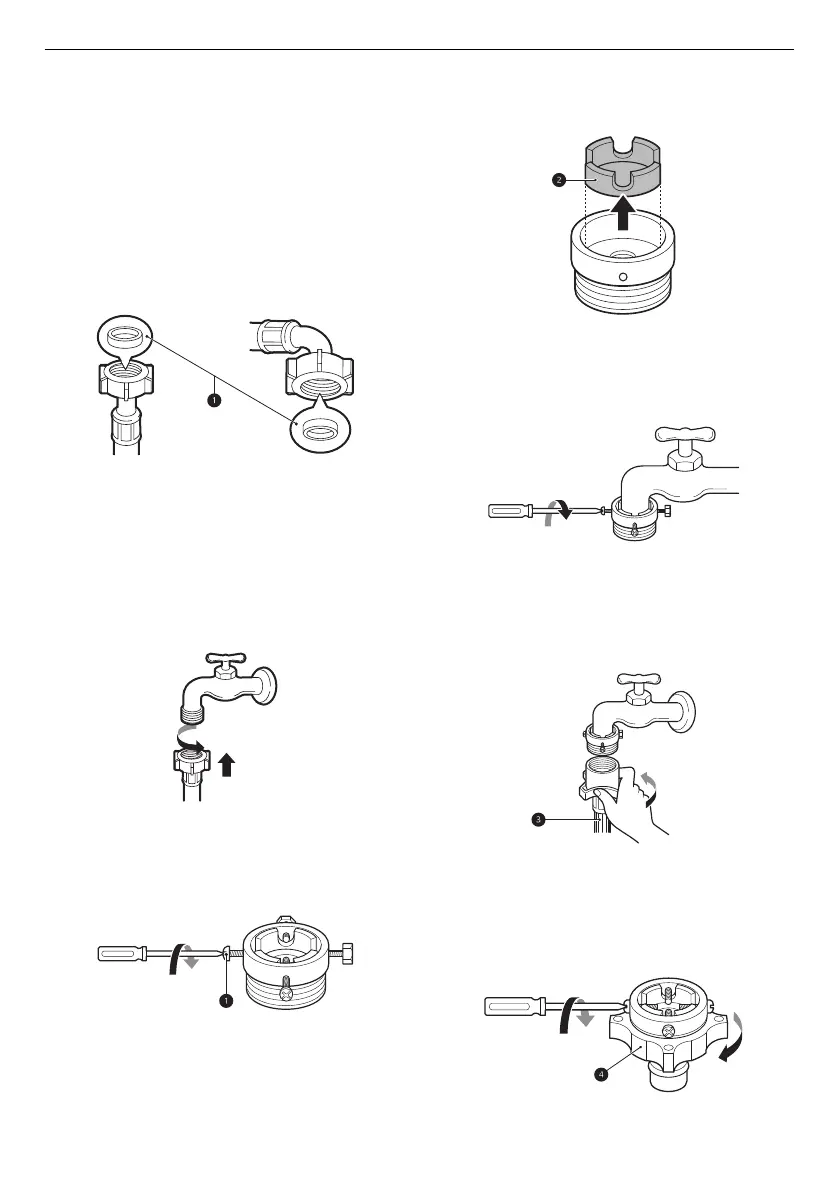

Checking the Rubber Seals
Two rubber seals
a
are supplied with the water
inlet hoses. They are used to prevent leaks when
the connections to the taps are properly tightened.
Do not over tighten connections.
• Do not use mechanical devices such as multi
grips to tighten the inlet hoses. Ensure that the
curved end of the water inlet hose is connected
to the appliance.
Connecting the Hose to the
Water Tap
Connecting Screw-Type Hose to Tap with Thread
Screw the hose connector onto the water supply
tap.
Connecting Screw-Type Hose to Tap Without
Thread
1
Loose the 4 fixing screws
a
.
2
Remove the guide plate
b
if the tap is too large
to fit the adapter.
3
Push the adapter onto the end of the tap so
that the rubber seal is connected to be
watertight. Tighten the 4 fixing screws.
4
Push the inlet hose
c
vertically upwards so
that the rubber seal within the hose can adhere
completely to the tap and then tighten the
hose by screwing it to the right.
Connecting One Touch Type Hose to Tap
Without Thread
1
Unscrew the adapter ring plate
d
and loose
the 4 fixing screws.
To Next Page
