13
INSTALLATION
ENGLISH
2

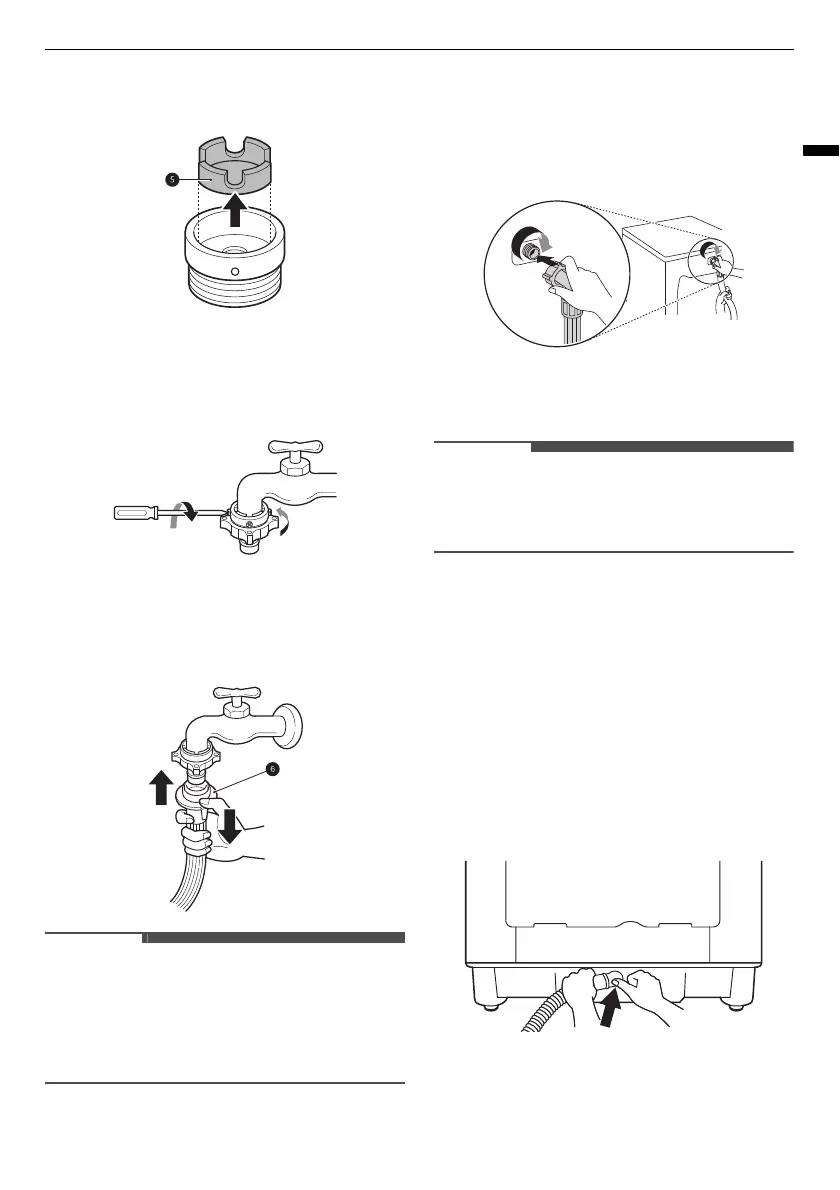

Remove the guide plate
e
if the tap is too large
to fit the adapter.
3
Push the adapter onto the end of the tap so
that the rubber seal is connected to be
watertight. Tighten the 4 fixing screws and the
adapter ring plate.
4
Pull the connector latch plate
f
down, push
the inlet hose onto the adapter, and release the
connector latch plate. Make sure the adapter
locks into place.
• After connecting the water inlet hose to the
water tap, turn on the water tap to flush out
foreign substances (dirt, sand, sawdust, and etc.)
in the water lines. Let the water drain into a
bucket, and check the water temperature.
Connecting the Hose to the
Appliance
Screw the water inlet hose to the water inlet valve
on the back of the appliance.
• On models with only one water inlet, do not
connect the hose to the hot water supply.
Connect to the cold water supply only.
• After completing the connections, check for
leaks and tighten or reassemble the connections
if needed.
Installing the Drain Hose
Before connecting the drain hose, check your drain
hose model and follow the instructions for that
model.
Installing the Drain Hose in a
Floor Drain
1
Push the elbow end of the hose onto the drain
outlet on the back of the appliance.
To Next Page
