DIASSEMBLY INSTRUCTIONS
11
COVER BASE
GUIDE AIR
Motor
Grille
HOOK

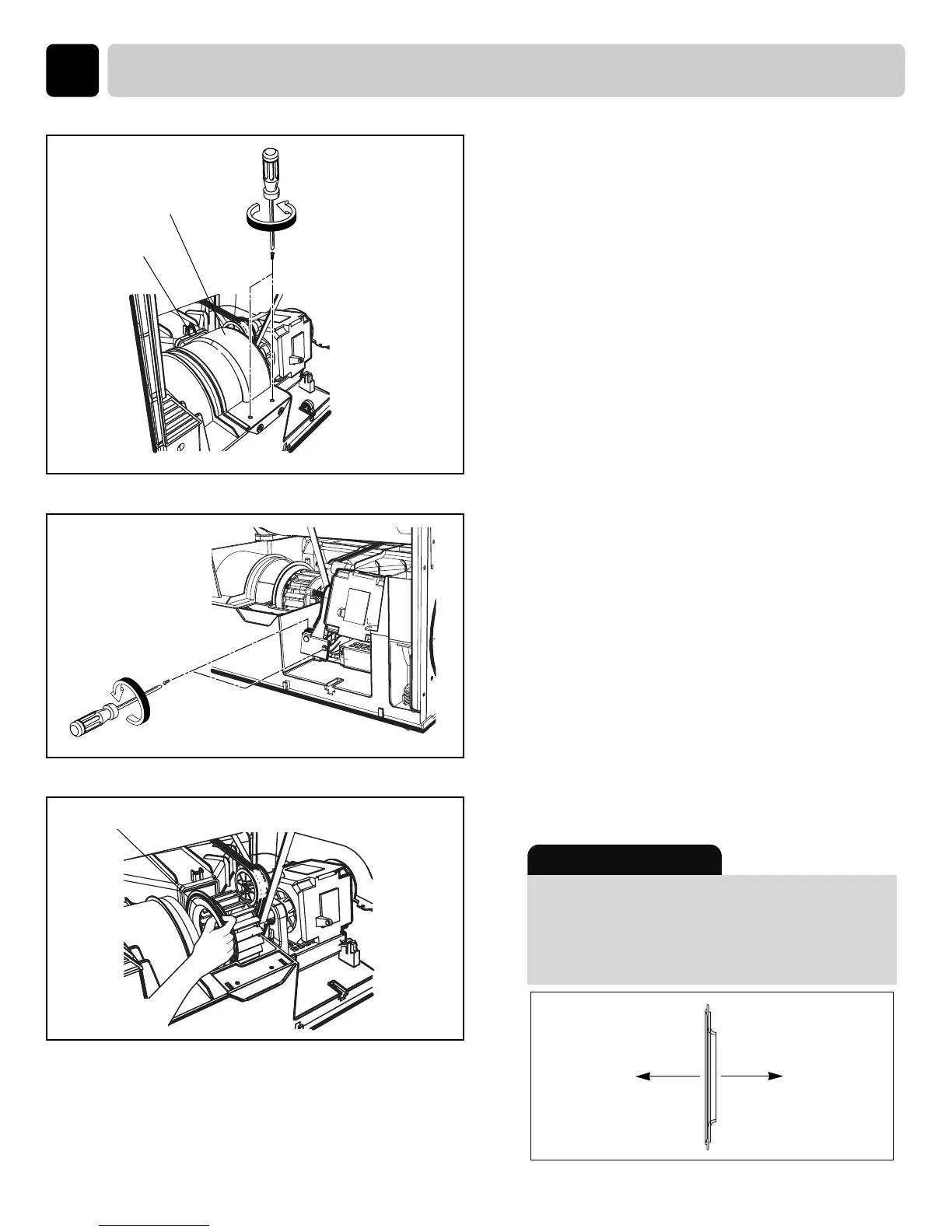

1. Disassemble Blower cover by
unscrewing 2 screws.
(Note : Make sure that hook is properly
fit after assembling Cover Base
Wrong assembly will cause abnormal
noise.)
2. Disassemble Motor Supporter from
Base by rotating after unscrewing 2
screws.
3. Disassemble Air Guide.
Note !
Assembly direction of Air Guide should be
same as belows.
Wrong assembly will cause abnormal
noise.
