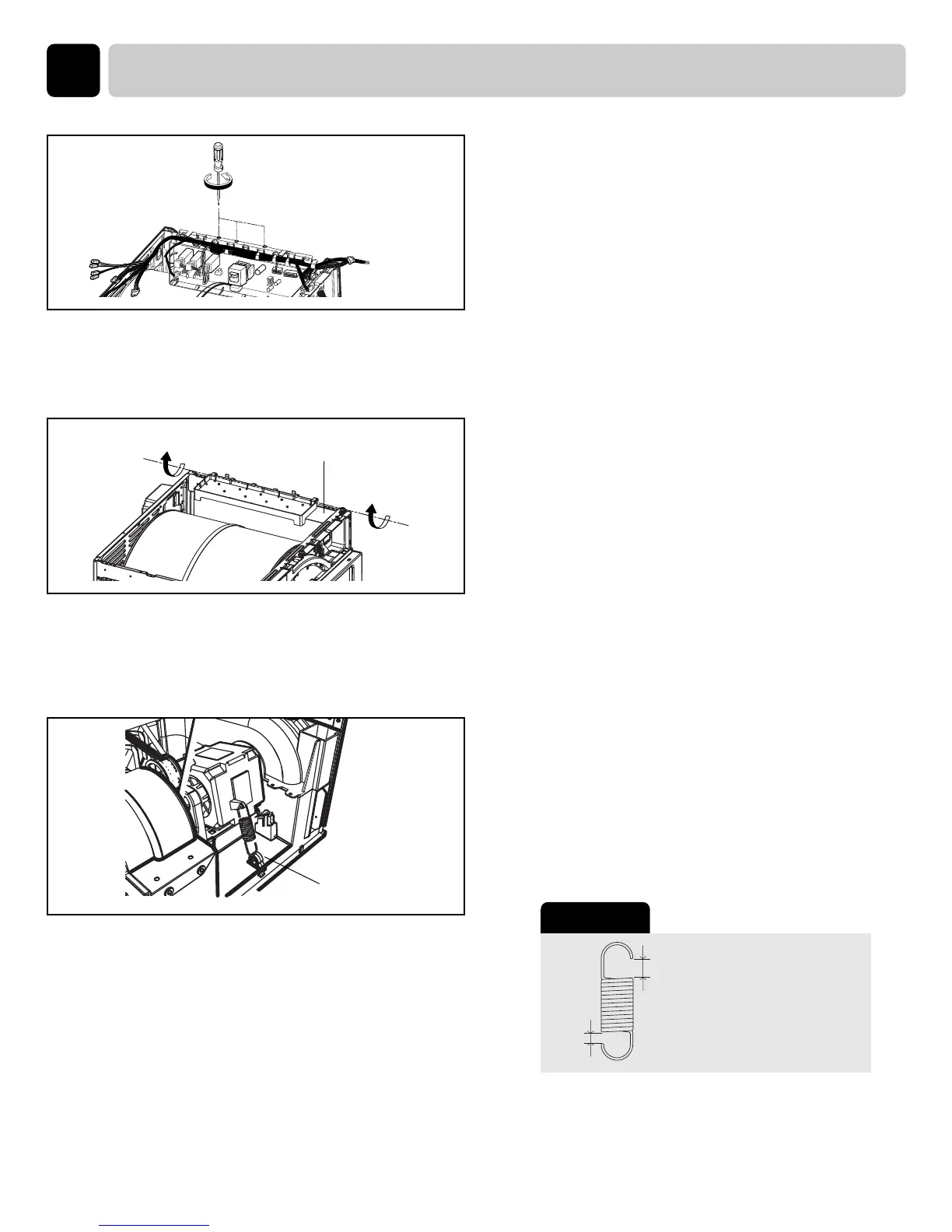

1. Disassemble Harness by unscrewing 2
Earth screws and disassemble
connectors.
2. Disassemble Main PWB from TOP
FRAME by rotating after unscrewing 2
screws.
3. Disassemble Holder and Spring by
pressing down and pulling the low hook
of holder.
11
DIASSEMBLY INSTRUCTIONS
TOP FRAME
90 。
90 。
HOLDER
Large Gap
Small Gap
Motor
Holder
Note
Be carefal of the
direction of Spring
hanger during
assemble to prevent
possible noise.
