LG V-net PDRYCB000

Installation Guide
12 Dry Contact

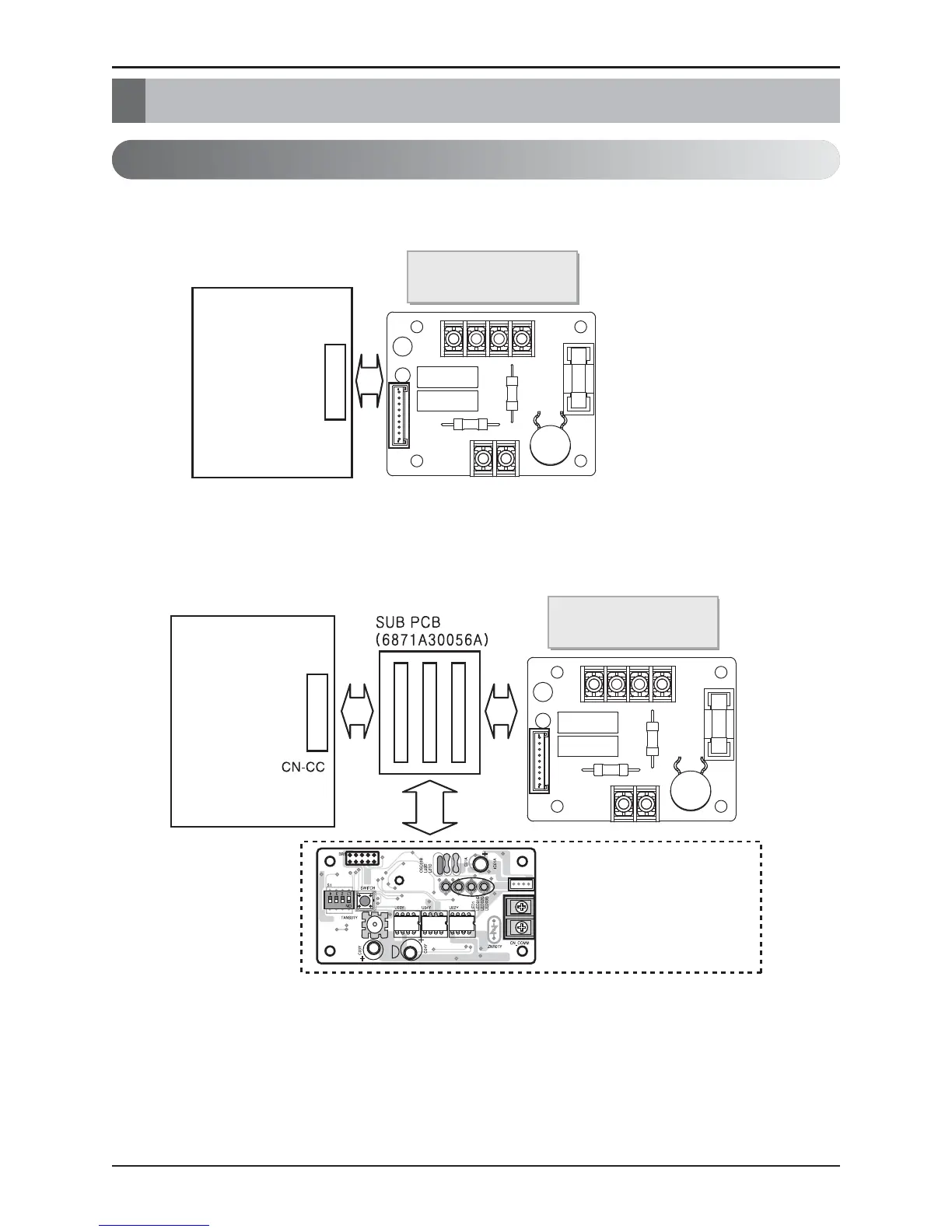

Step 1
DRY CONTACT
PI485 : Connect to central controller
Indoor unit
PCB
CN-CC
AC 220V
CN-CC
DRY CONTACT
CN-CC
AC 220V
Indoor unit
PCB
* Single Only
- When you install single product this PCB have to add.
Connect CN-CC with Indoor PCB by the cable(provided)
- Connection of Dry contact only
- Connection of Dry contact & LG Central Controller in case of single constant models.
