LG WD-1036(0~9)SD User Manual

23
NO
YES
YES
YES
NO
NO
YES
NO
NO
YES

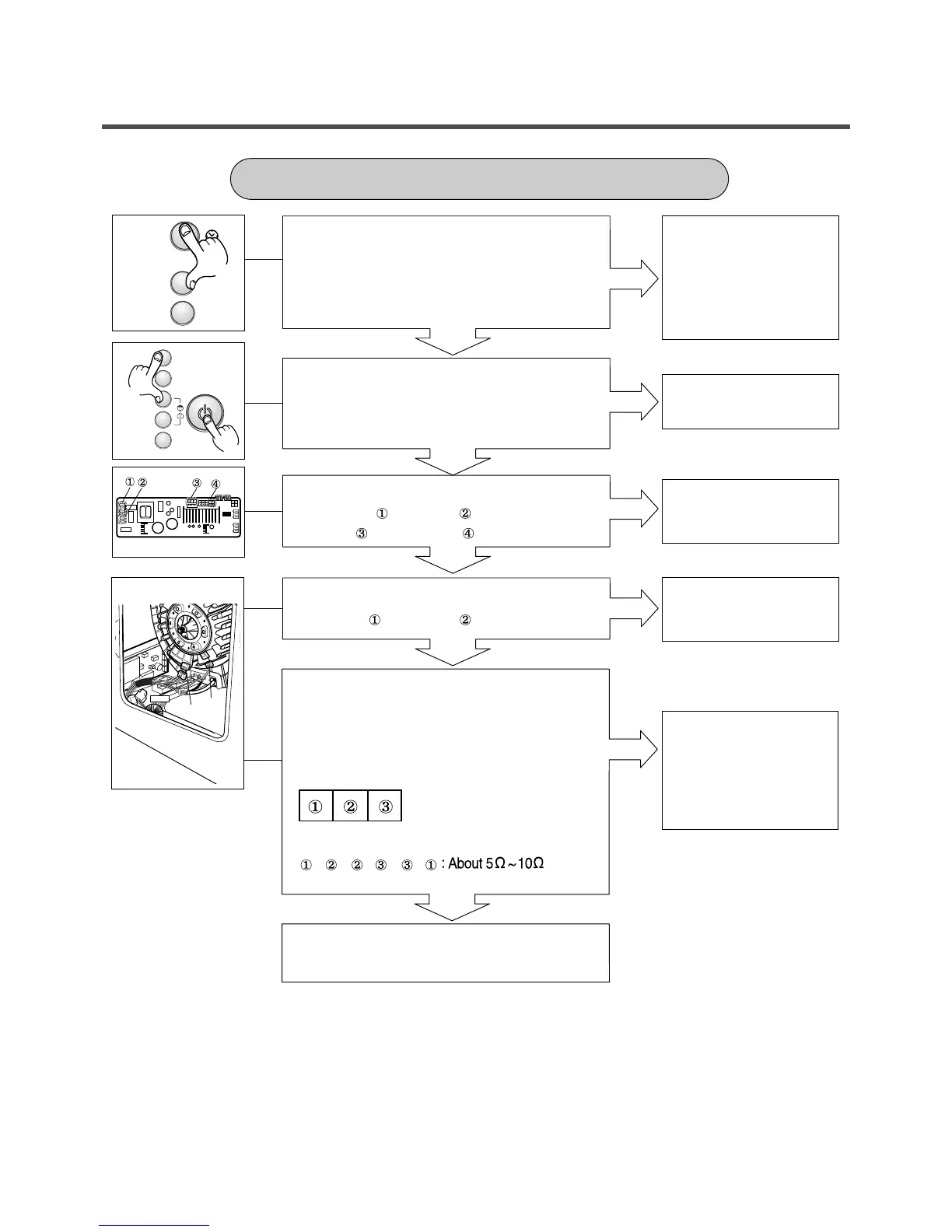

SPIN TROUBLE
Check the sensor
(Pressure) or hose
(Sensor).
If the problem is on the
sensor or the hose, replace
the sensor or the hose.
Normal
Correct the connector.
Correct the connector.
Replace the STATOR
assembly.
(4417EA1002D)
While spinning, is the frequency of the
water level 248 or more? The frequency can be
checked by pressing the Medic Care Rinse button
and Time Delay button at the same time
on the program.
When pressing
Medic Care Rinse button and Rinse
+
button and POWER button at the same time after
power off, press the START/PAUSE button 2 times,
is the drum low speed spin?
Is it disconnected, or disassembled?
[White : 3pin ( ), Red:3pin ( ),
Red:3pin ( ), National:4pin ( )]
Is it disconnected, or disassembled?
White : 3pin( ), White:4pin( )]
Check the motor connector, Is the resistance of
the terminal same as the figure?
MOTOR TERMINAL (1)
Resistance of terminal:
Replace the PWB assembly.
(2)
(1)
~~~
//
Power
Intensive
Medic Care
Rinse
Intensive
Rinse
+
Pre Wash
Crease Care
Medic Care
Rinse
