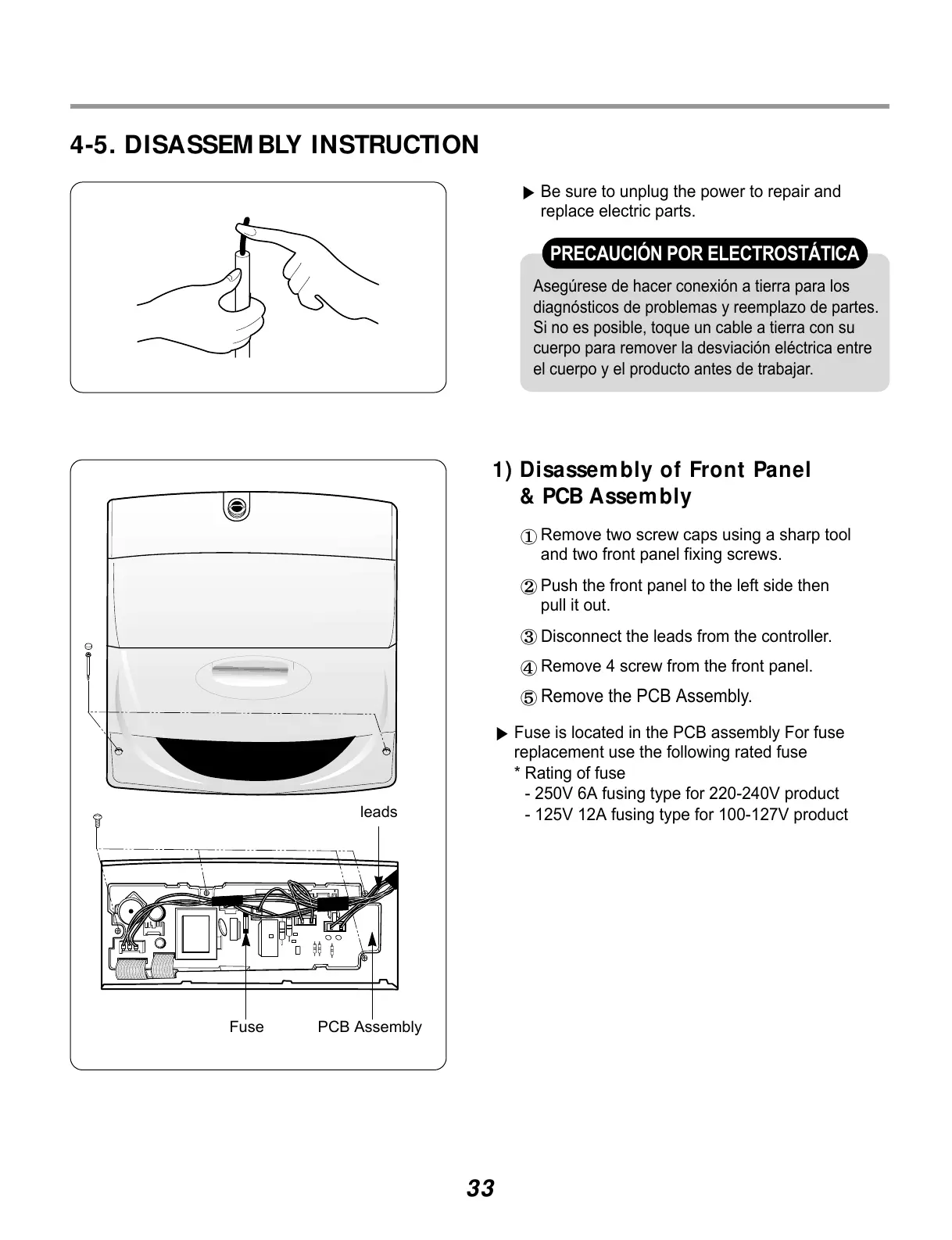

4-5. DISASSEM BLY INSTRUCTION
Be sure to unplug the power to repair and
replace electric parts.
Asegúrese de hacer conexión a tierra para los
diagnósticos de problemas y reemplazo de partes.
Si no es posible, toque un cable a tierra con su
cuerpo para remover la desviación eléctrica entre
el cuerpo y el producto antes de trabajar.
PRECAUCIÓN POR ELECTROSTÁTICA
1) Disassembly of Front Panel
& PCB Assembly
Remove two screw caps using a sharp tool
and two front panel fixing screws.
Push the front panel to the left side then
pull it out.
Disconnect the leads from the controller.
Remove 4 screw from the front panel.
Remove the PCB Assembly.
Fuse is located in the PCB assembly For fuse
replacement use the following rated fuse
* Rating of fuse
- 250V 6A fusing type for 220-240V product
- 125V 12A fusing type for 100-127V product
leads
PCB AssemblyFuse
