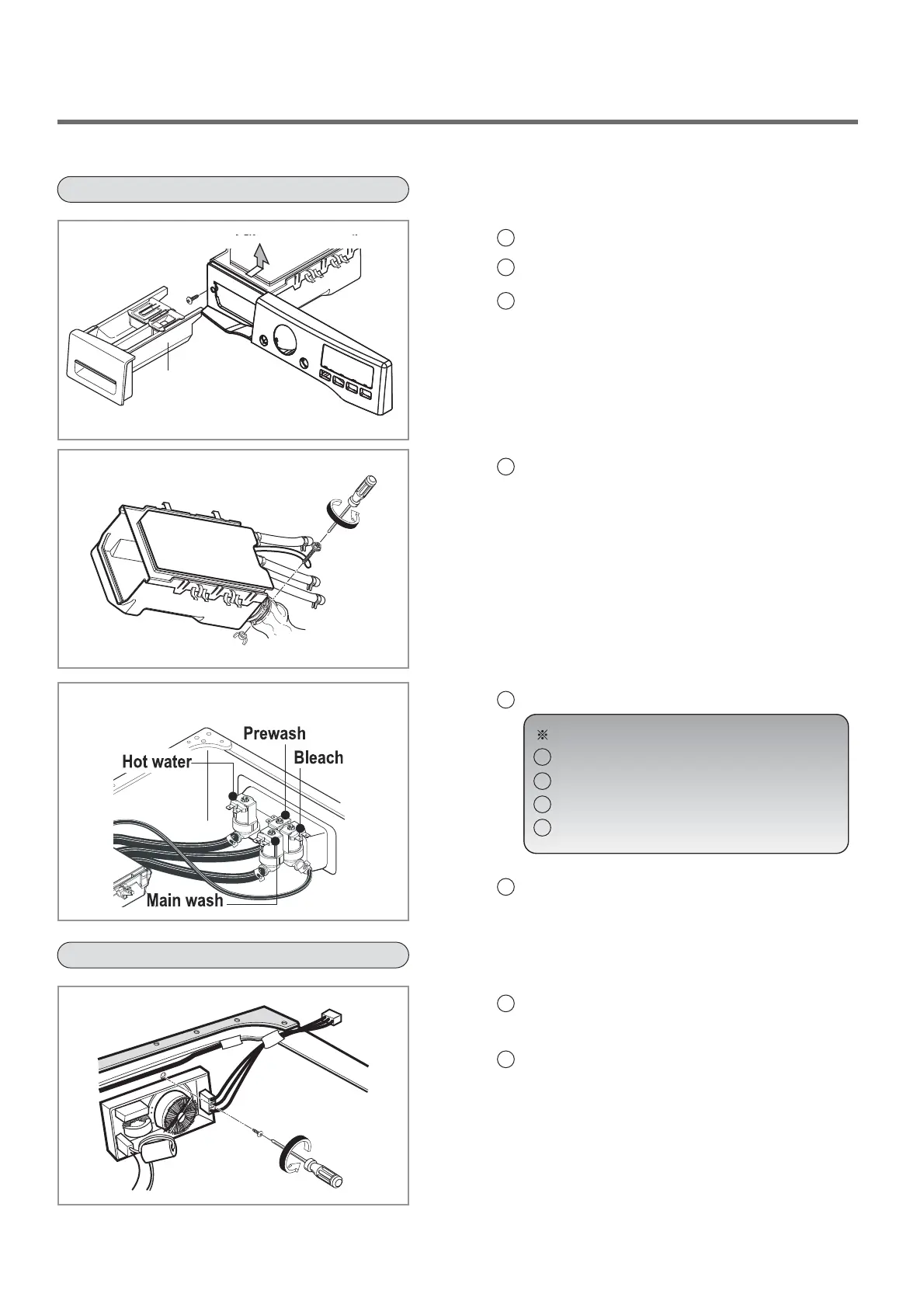

DISPENSER ASSEMBLY
Disassemble the top plate assembly.
Pull out the drawer.
Push out the dispenser assembly after
unscrewing 2 screws.
NOISE FILTER
Disassemble two (or three) connectors from
the noise filter.
Unscrew a screw from the top bracket.
Unscrew the clamp nut at the lower part of the
dispenser.
Unscrew 2 screws from the back of the cabinet.
Disassemble the 4 connectors from the valves.
Wire Color
Blue Housing (YL-BK)
White Housing (WH-BK)
Blue Housing (GY-BK)
Red Housing (BL-BK)
1
2
3
4
DRAWER
1
3
2
4
5
6
1
2
76
Copyright © 2016 - 2017 LG Electronics Inc. All rights
reserved. Only training and service purposes.
