11. EXPLODED VIEW
A152
A139
A153
M410
A485
A455
A410
A150
A154
A151
A450
A110
A111
A390
A131
A130
A134
A140
A133
A310
A303
A300
A200
A201
A220
A155
A440
A430
A100
A101
A105
A104
F211
A102
A103
F215
F210
Printed materials
Description
*Owner’s Manual
*Energy Label
Loc No.
*Tech Sheet
*Service Manual
*Quick Start Guides
*Inst allation Sheet
G001
G002
G003
G004
G006
G007
“The following parts are not illustrated"
*Non-Skid Pa ds
G010
F110
A156
A141

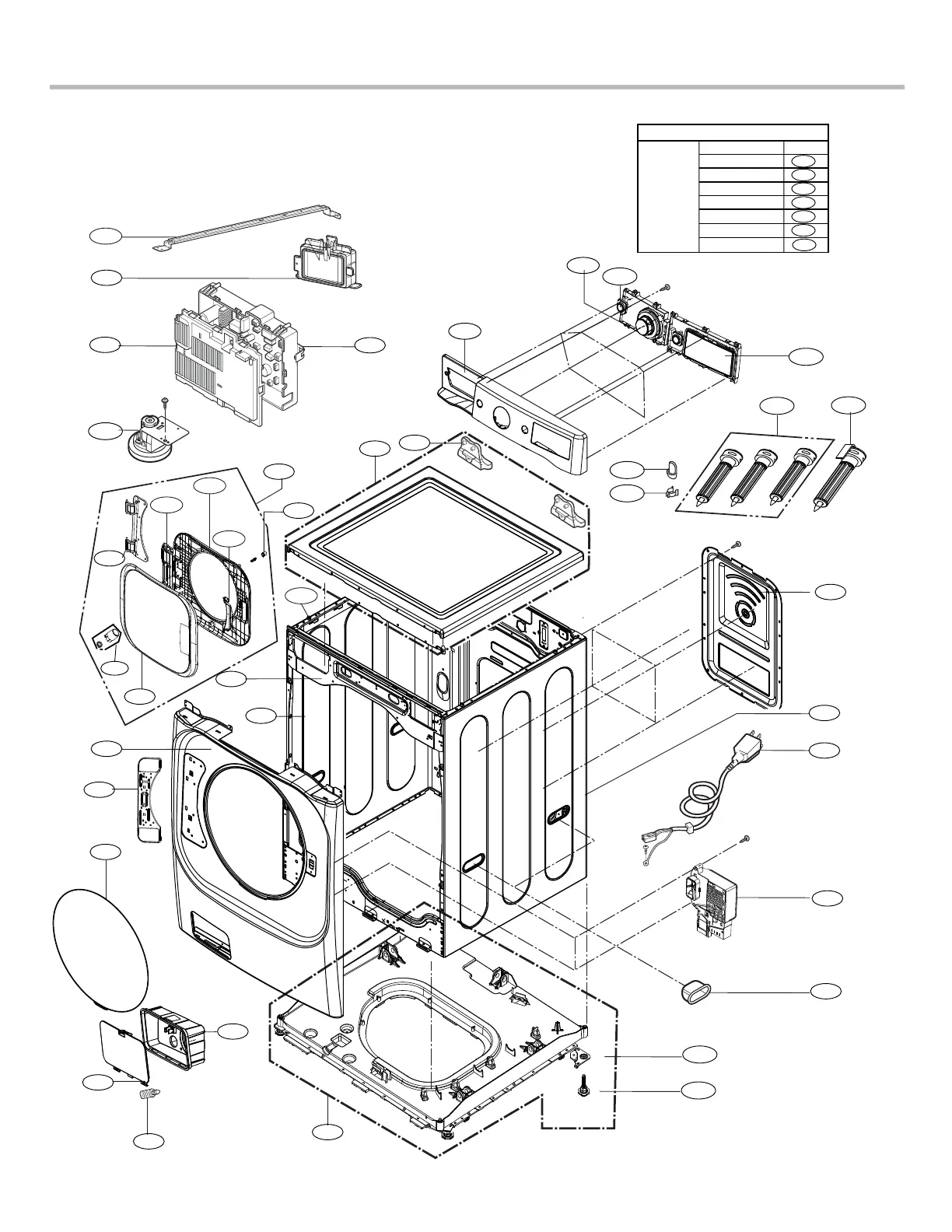

11-1. Cabinet and Control Panel Assembly
