LGEMM

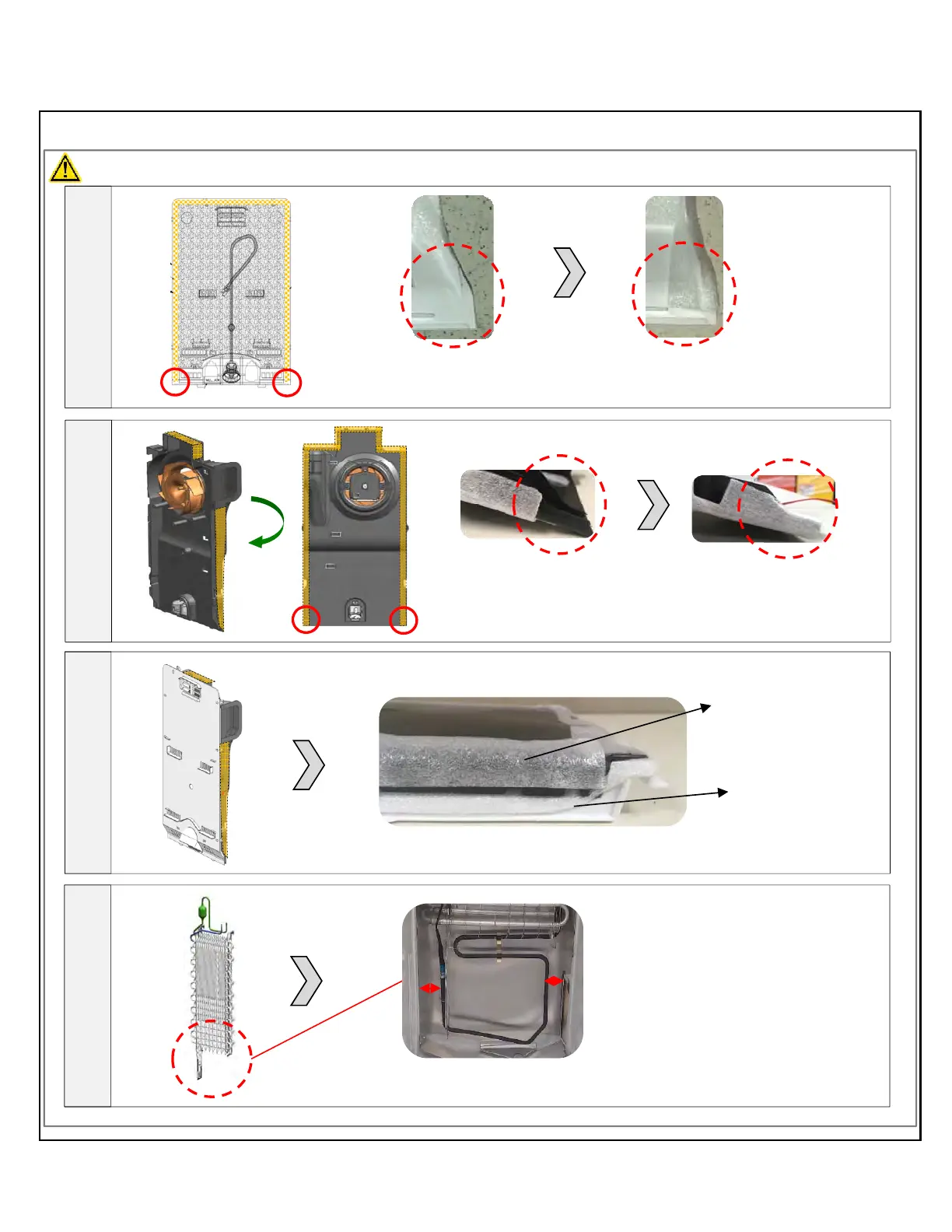

Repair Instruction
embly, Fan
Warning: Check the components before replacing them.
NG OK
it is necessary to check the foam location around the edges on Grille, Fan.
Grille As
er
It is necessary to check the foam location around the edges on shroud.
NG
OK
Shroud Assembly, Free
It is necessary to check the foam location around the edges on shroud.
mbly, Fan
Shroud Assembly, Fan
Full Ass
Make sure all corners are properly sealed
Grill Assembly, Fan
30mm30mm
Evaporator Assembly
LG(61)-FO-DI-008.07
Check position of Sheath Heater. 30mm from the Left and Right side of liner
To Next Page
