LG WTG1434 HF Series Service Manual

6
3
Push the adapter onto the end of the tap so
that the rubber seal forms a watertight
connection. Tighten the four fixing screws.
4
Push the supply hose vertically upwards so
that the rubber seal within the hose can
adhere completely to the tap and then
tighten it by screwing it to the right.
Plate
Supply
hose

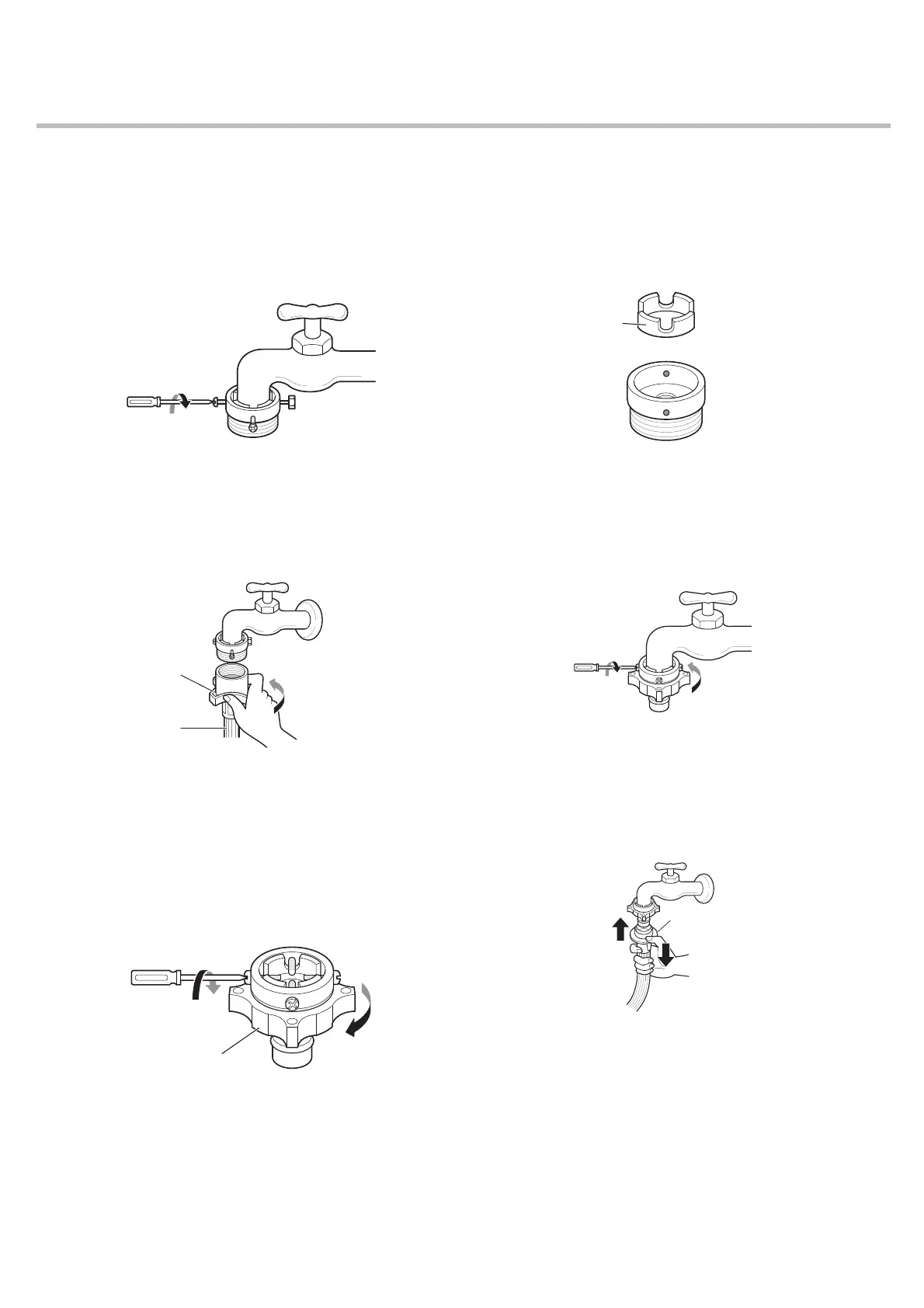

Connecting One Touch Type Hose to
Tap Without Thread
1
Unscrew the adapter ring plate and loose
the four fixing screws.
Ring plate
2
Remove the guide plate if the tap is too
large to fit the adapter.
Guide plate
3
Push the adapter onto the end of the tap so
that the rubber seal forms a watertight
connection. Tighten the four fixing screws
and the adapter ring plate.
4
Pull the connector latch plate down, push
the supply hose onto the adapter, and
release the connector latch plate. Make
sure the adapter locks into place.
Latch plate
NOTE
ҟAfter connecting the supply hose to the water
tap, turn on the water tap to flush out foreign
substances (dirt, sand, sawdust, and etc.) in
the water lines. Let the water drain into a
bucket, and check the water temperature.
