LG WTG1434 HF Series Service Manual

8

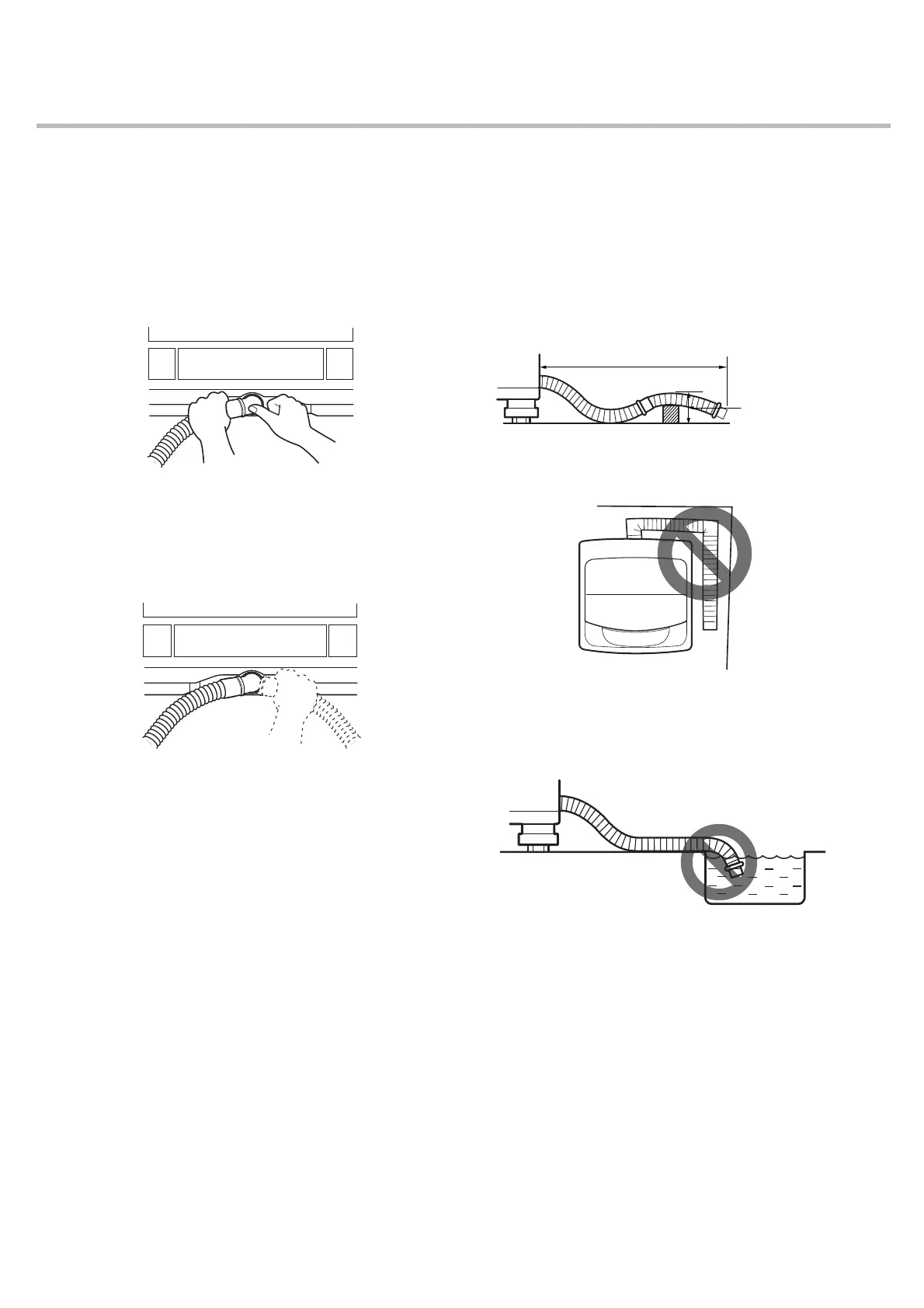

Non-pump Model
1
Push the elbow hose toward the body of the
washing machine.
2
To change the direction of the hose, pull out
the elbow hose and change the direction.
Repeat Step 2.
Positioning the Drain Hose
ҟThe length of the drain hose should not
exceed 3 m.
ҟDo not place the drain hose on a threshhold
of 6 cm or more.
max. 6 cm
max. 3 m
ҟMake sure the drain hose is not kinked.
ҟThe outlet of the drain hose should not be
submerged in water.
ҟMake sure the drain hose is not kinked.
