Lian-Li O11 DYNAMIC EVO XL User Manual

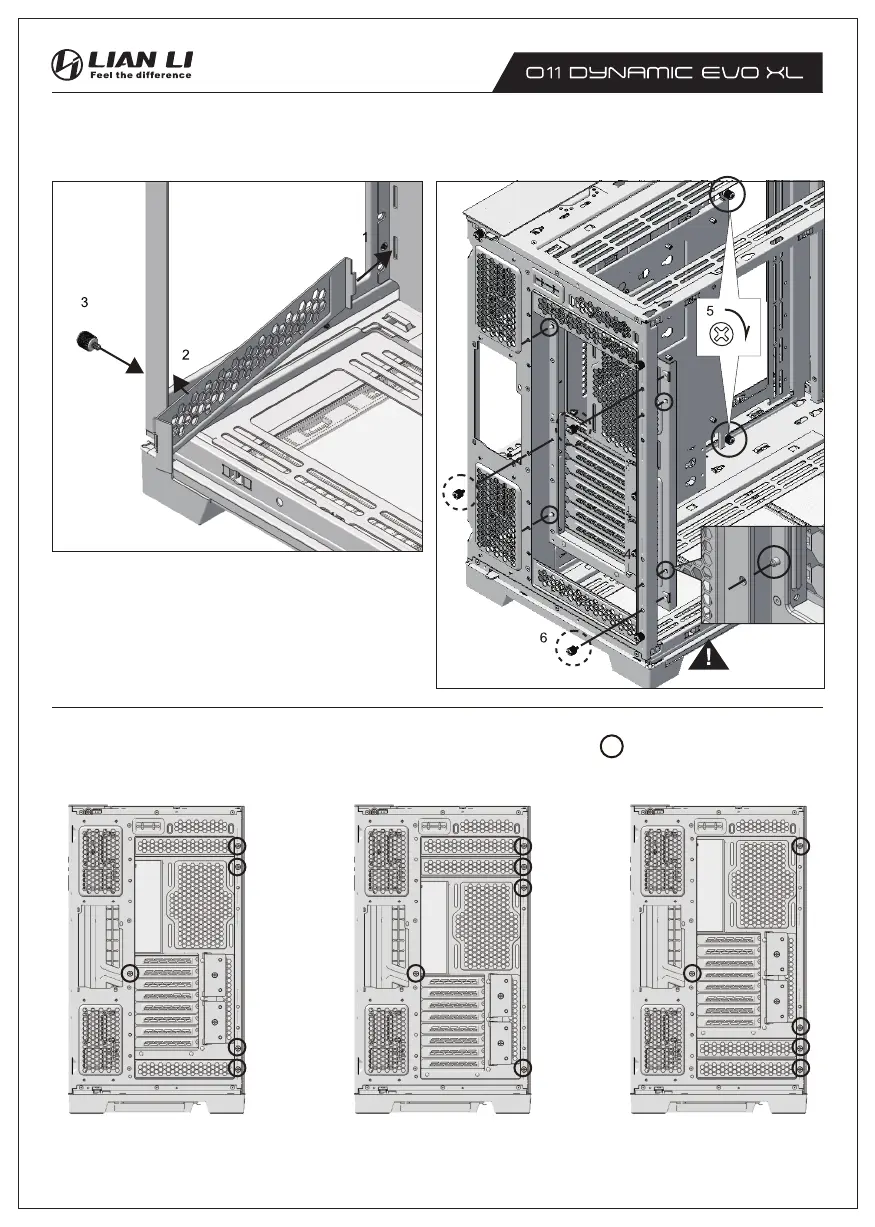

Install the Back Plate and the Motherboard Tray
安裝後板與遮⽚ / Installez la plaque arrière et le masque / Installieren Sie die Rückplatte und die Maske /
Instale la placa posterior y la máscara / バックプレートとマスクを取り付けます
Middle Mode(Factory Defult)/ /出廠配置
Mode moyen (valeur par défaut)
Low Mode/ /下置配置
Mode bas
Top Mode/ /上置配置
Mode supérieur
Screw here
圓框處請鎖上螺絲
Visser ici
Schema of the Modes
配置⽰意圖 / Schéma de configuration / Konfigurationsdiagramm /
Diagrama de configuración / 構成のヒント
- 8 -
Do align (x 4)/
確實對⿑(x 4)/
Al ignez (x 4)

Lian-Li O11 DYNAMIC EVO XL Specifications

General

Case Type	Full Tower
Motherboard Compatibility	E-ATX, ATX, Micro-ATX, Mini-ITX
Expansion Slots	8
Color	Black, White
Material	Steel, Tempered Glass, Aluminum
Drive Bays	3 x 3.5"
Front I/O	1x USB 3.1 Type-C, 2x USB 3.0, HD Audio
Fan Support	Rear: 1 x 120mm
Radiator Support	Top: Up to 360mm, Bottom: Up to 360mm, Side: Up to 360mm, Rear: 1 x 120mm
PSU Support	ATX (Up to 220mm)
GPU Clearance	460mm
CPU Cooler Clearance	167mm
