Lian-Li PC-O11 Dynamic EVO Svart User Manual

Reverse

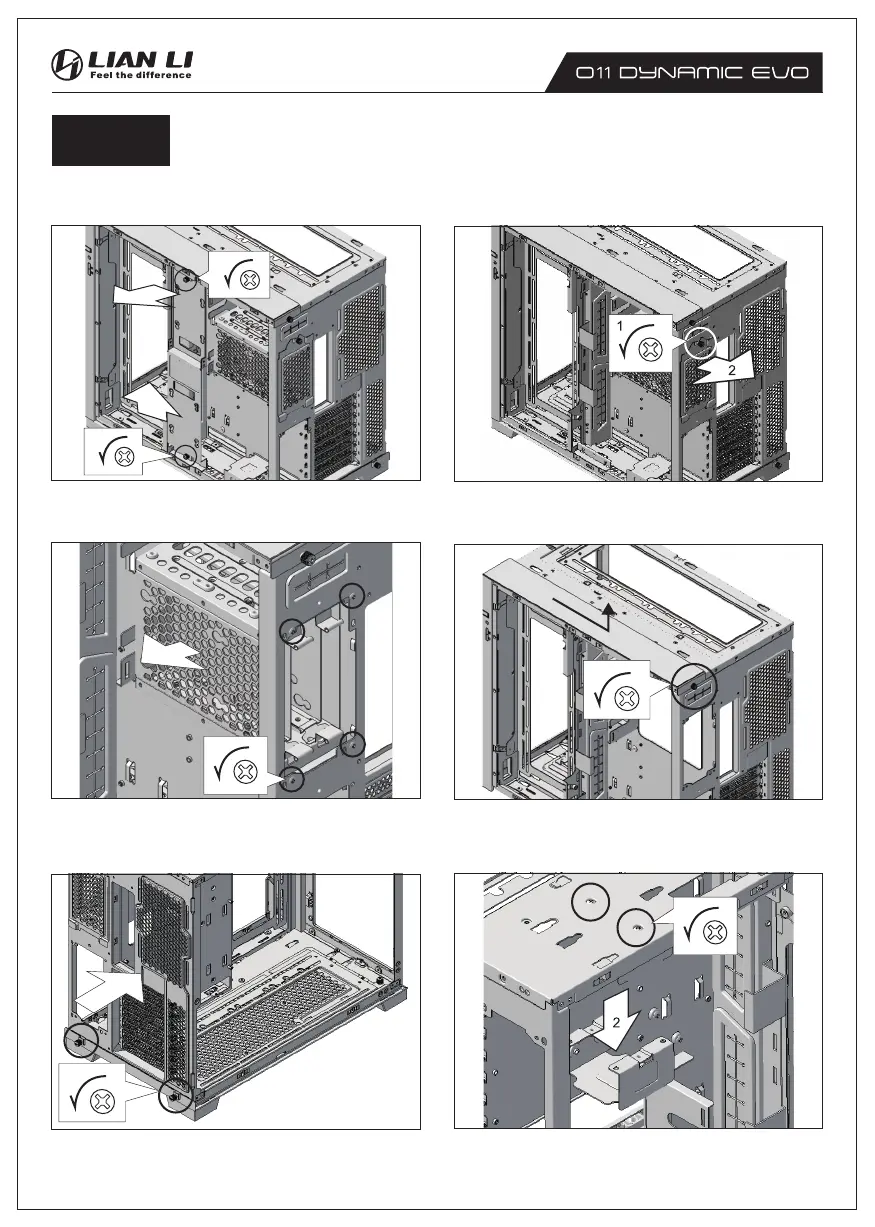

Reverse Mode Installation
反向模式 / Installation en mode inverse / Installation im umgekehrten Modus / 安裝
Instalación en modo inverso / リバースモードのインストール
2
1
3
1
- 18 -
1.卸下線材 遮板。
1. Remove the cable management bar.
5. Detach the feet frame from the chassis
(Remove the IO module before).
5.將腳座和機殼分離(先拔掉IO線）。
6. Remove the PSU support bracket.
2.卸下硬碟蓋。
2. Remove the HDD cage cover.
3.卸下硬碟 架 。
3. Remove the HDD cage.
1
2
2
1
4.卸下上板。
4. Remove the top panel.
1
6 .將 機 殼 倒 置,拆 除 電 源 ⽀ 撐 架 並 裝 回 蓋 ⼦ 與 I O線 。
1
2
機殼往前推
Push the chassis

Lian-Li PC-O11 Dynamic EVO Svart Specifications

General

Type	Mid Tower
Expansion Slots	8
Color	Black
Dust Filters	Bottom, Side, Top
Motherboard Support	E-ATX, ATX, Micro-ATX, Mini-ITX
Material	Steel, Tempered Glass, Aluminum
Front I/O Ports	1 x USB 3.1 Type-C, 2 x USB 3.0, 1 x Audio
Radiator Support	Top: 360mm, Bottom: 360mm, Side: 360mm
GPU Length Clearance	420mm
CPU Cooler Height Clearance	167mm
PSU Length Clearance	220mm (Max.)
Drive Bays	2 x 2.5", 2 x 3.5"
