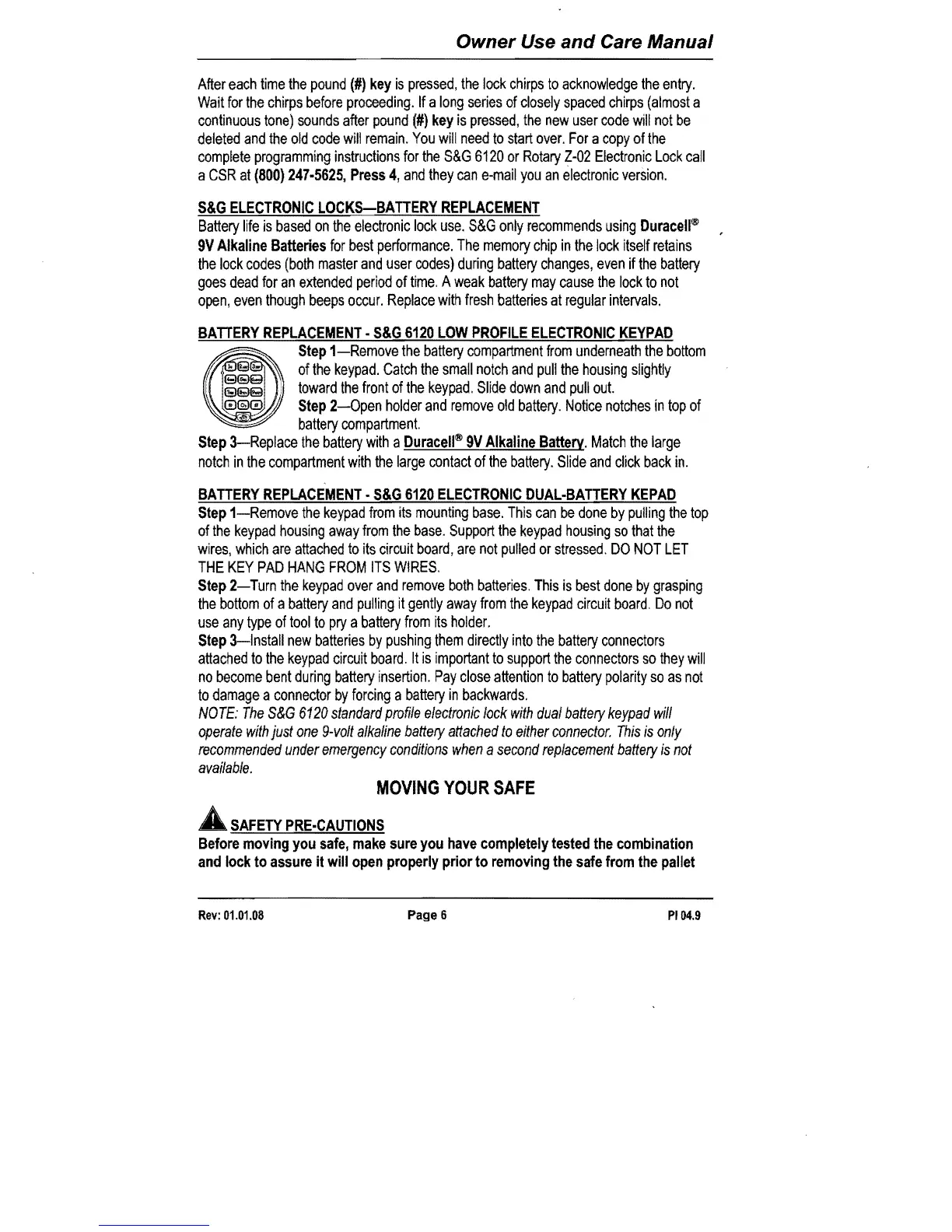

Owner Use and Care Manual
After each time the pound (#) key is pressed, the lock chirps to acknowledge the entry.
Wait for the chirps before proceeding. If a long series of closely spaced chirps (almost a
continuous tone) sounds after pound (#) key is pressed, the new user code will not be
deleted and the old code will remain. You will need to start over. For a copy of the
complete programming instructions for the S&G 6120 or Rotary Z -02 Electronic Lock call
a CSR at (800) 247·5625, Press 4, and they can e-mail you an electronic version.
saG ELECTRONIC LOCKS-BATIERY REPLACEMENT
Battery life is based on the electronic lock use. S&G only recommends using Duracell®
9V Alkaline Batteries for best performance. The memory chip in the lock itself retains
the lock codes (both master and user codes) during battery changes, even if the battery
goes dead for an extended period of time. A weak battery may cause the lock to not
open, even though beeps occur. Replace with fresh batteries at regular intervals.
BATIERY REPLACEMENT - SaG 6120 LOW PROFILE ELECTRONIC KEYPAD
~ Step 1-Remove the battery compartment from underneath the bottom
f(( f~~~l ~ of the keypad. Catch the small n~tch and pull the housing slightly
"" 113151 . toward the front of the keypad. Slide down and pull out.
0@0JlJJ Step 2-0pen holder and remove old battery. Notice notches in top of
~
~ battery compartment.
Step 3-Replace the battery with a Duracell® 9V Alkaline Battery. Match the large
notch in the compartment with the large contact of the battery. Slide and click back in.
BATIERY REPLACEMENT - SaG 6120 ELECTRONIC DUAL·BATIERY KEPAD
Step 1-Remove the keypad from its mounting base. This can be done by pulling the top
of the keypad housing away from the base. Support the keypad housing so that the
wires, which are attached to its circuit board, are not pulled or stressed. DO NOT LET
THE KEY PAD HANG FROM ITS WIRES.
Step 2- Turn the keypad over and remove both batteries. This is best done by grasping
the bottom of a battery and pulling it gently away from the keypad circuit board. Do not
use any type of tool to pry a battery from its holder.
Step 3-lnstall new batteries by pushing them directly into the battery connectors
attached to the keypad circuit board. It is important to support the connectors so they will
no become bent during battery insertion. Pay close attention to battery polarity so as not
to damage a connector by forcing a battery in backwards.
NOTE: The S&G 6120 standard profile electronic lock with dual battery keypad will
operate with just one 9-volt alkaline battery attached to either connector. This is only
recommended under emergency conditions when a second replacement battery is not
available.
MOVING YOUR SAFE
.A.. SAFETY PRE·CAUTIONS
Before moving you safe, make sure you have completely tested the combination
and lock to assure it will open properly prior to removing the safe from the pallet
Rev: 01.01.08
Page 6
PI 04.9
