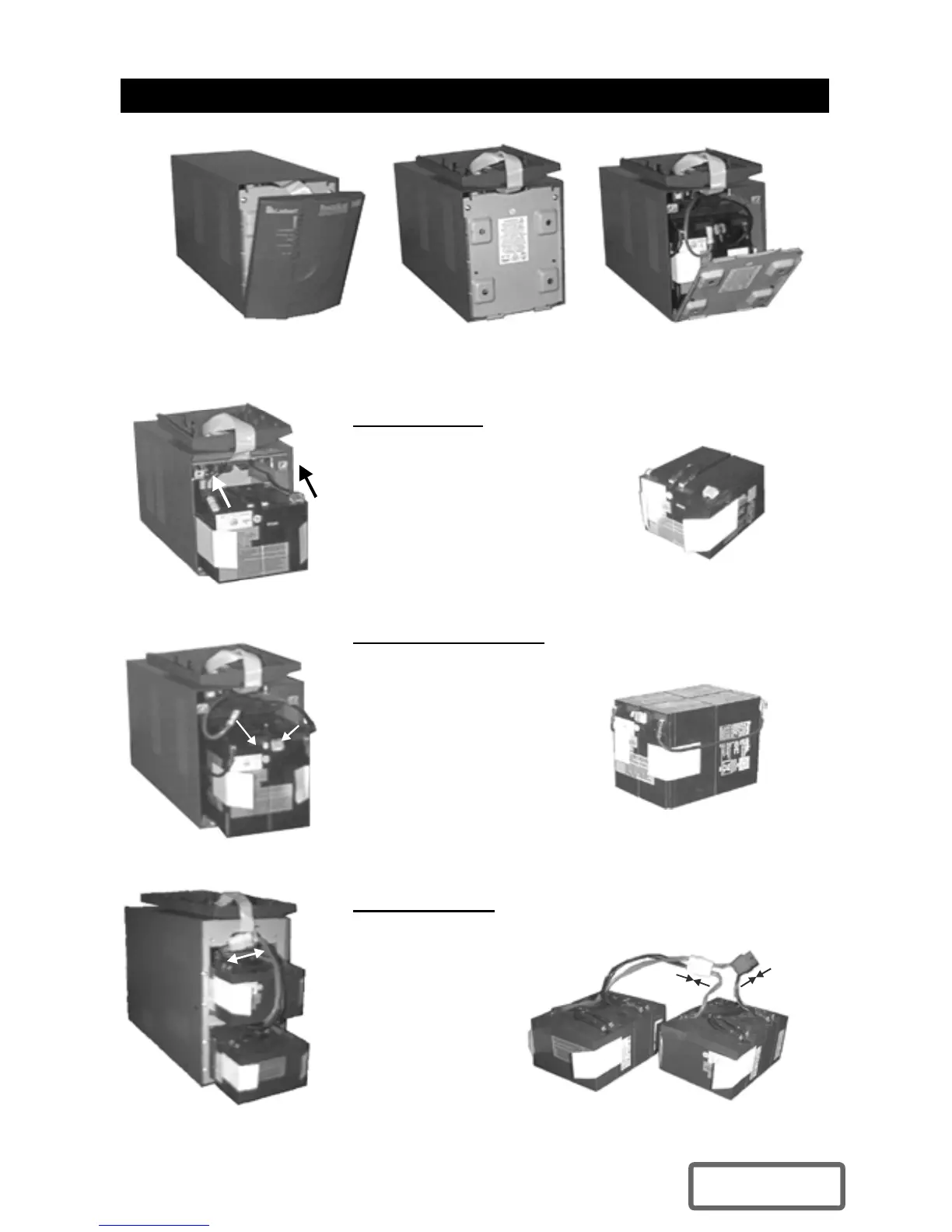

MINI-TOWER BATTERY REPLACEMENT
700 VA Model
To Disconnect: Gently pull wiring
away
To Connect: Connect red wire to
red terminal, then black wire to
black terminal by pushing towards
connector
1000/1400 VA Model
To Disconnect: Gently pull
wiring away
To Connect: Connect red
wire to red terminal, then black
wire to black terminal by
pushing upward
2200 VA Model
To Disconnect:
Pull apart
connections A & B
To Connect:
Push connections
A together &
connections B
together
Pull bezel forward Rotate bezel on top Remove battery door
