Introduction
2

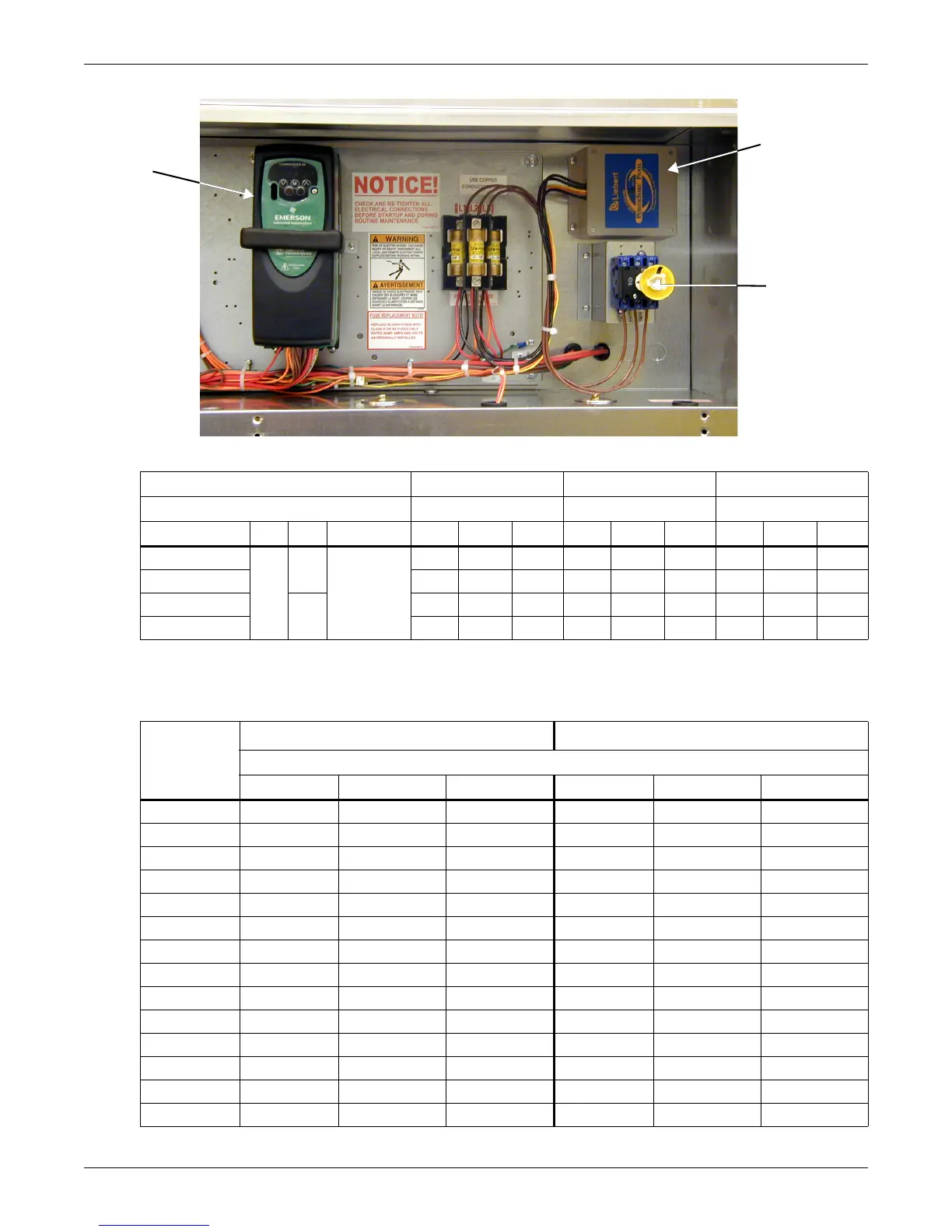

Figure 2 Major electrical control components
Table 1 Electrical data—50 and 60 Hz
Model # 165, 205 251, 308 415, 510
Number of Fans 2 3 4
Input Voltage Ph Hz Motor Hp FLA WSA OPD FLA WSA OPD FLA WSA OPD
208/230
3
60
0.75
7.2 8.1 15 10.7 11.6 15 14.2 15.1 20
460 3.5 4.0 15 5.2 5.7 15 6.9 7.4 15
200/230
50
7.2 * * 10.7 * * 14.2 * *
380/415 3.5 * * 5.2 * * 6.9 * *
FLA = Full Load Amps; WSA = Wire Size Amp; OPD = Maximum Overcurrent Protection Device Rating
* = Follow local electrical code to determine WSA and OPD
Table 2 VFD condensers for indoor units, 50 and 60Hz
Indoor Unit
R-22 R-407C
Outdoor Design Ambient Temperature
95°F (35°C) 100°F (38°C) 105°F (41°C) 95°F (35°C) 100°F (38°C) 105°F (41°C)
DH/VH75A N/A N/A TCDV165 N/A N/A N/A
DH/VH114A TCDV165 TCDV165 TCDV205 N/A N/A N/A
DH/VH125A TCDV165 TCDV165 TCDV205 N/A N/A N/A
DH/VH199A TCDV205 TCDV308 TCDV308 N/A N/A N/A
DH/VH245A TCDV308 TCDV308 TCDV415 N/A N/A N/A
DH/VH290A TCDV308 TCDV415 TCDV415 N/A N/A N/A
DH/VH380A TCDV415 TCDV510 N/A N/A N/A N/A
DS/VS028A TCDV165 TCDV165 TCDV205 TCDV205 TCDV205 TCDV251
DS/VS035A TCDV165 TCDV205 TCDV205 TCDV205 TCDV205 TCDV251
DS/VS042A TCDV205 TCDV205 TCDV308 TCDV205 TCDV251 TCDV308
DS/VS053A TCDV205 TCDV308 TCDV308 TCDV251 TCDV308 TCDV415
DS/VS070A TCDV308 TCDV415 TCDV415 TCDV308 TCDV415 TCDV415
DS/VS077A TCDV308 TCDV415 TCDV510 TCDV308 TCDV415 TCDV510
DS/VS105A TCDV415 TCDV510 N/A TCDV415 N/A N/A
Variable
Frequency
Drive control
Liebert’s
Transient
Voltage
Surge
Suppression
Locking
Disconnect
