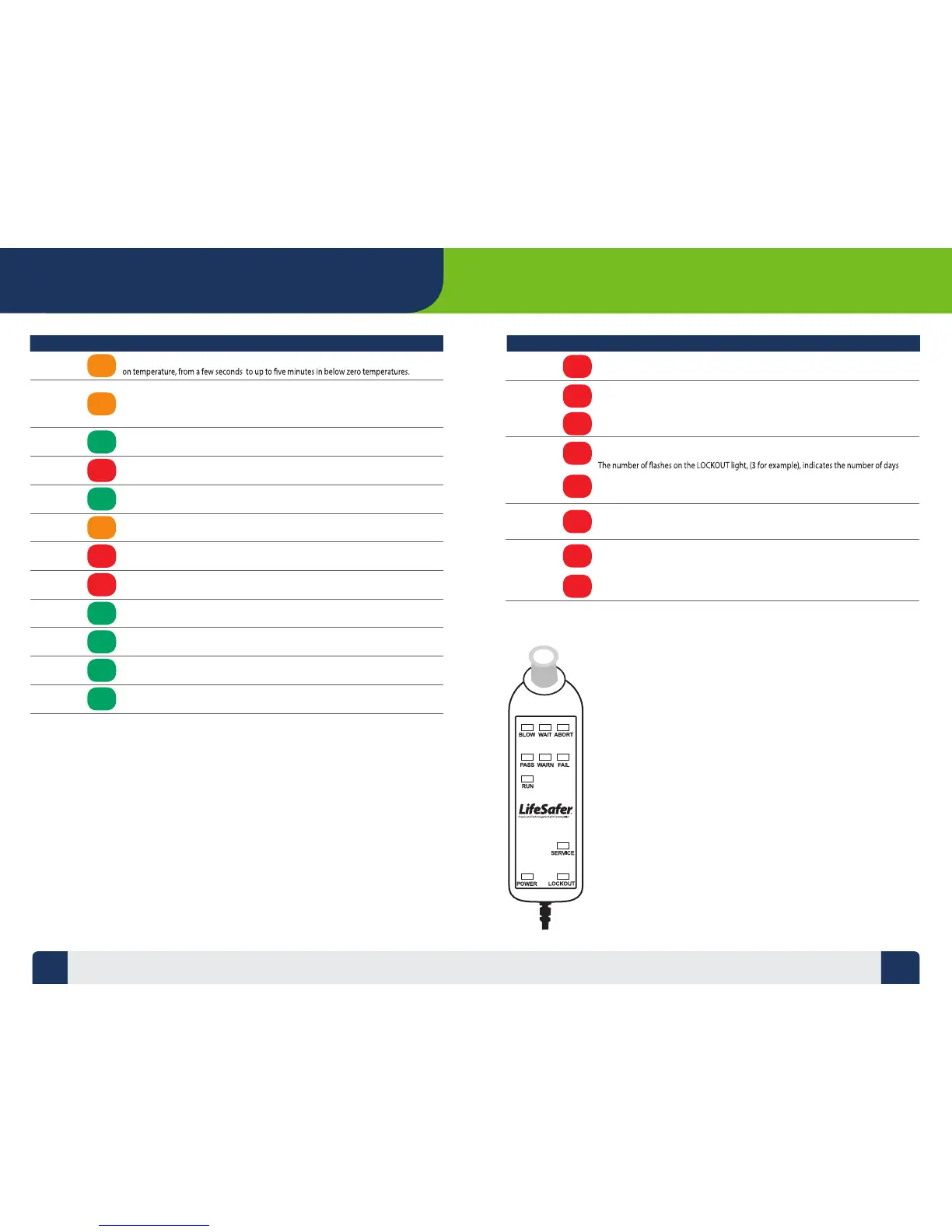

HANDSET DISPLAY OVERVIEW
Indicator Color Description
WAIT
(On Steady)
ORANGE
The Device is preparing to accept a breath test. This lasts for varying amounts of time depending
WAIT
(Flashing)
ORANGE
Before a test is taken: This indicates that the Camera has not detected the Handset in the
image. The Handset will emit a ‘BLAP BLAP’ tone.
After a test is taken: This indicates that the Camera was not able to detect or track the Handset
during the test.
BLOW
(Flashing)
GREEN
The Device is ready to accept a breath test. Hum and blow into the Device for about 5 seconds.
Device will emit a low tone indicating that you are blowing properly.
ABORT
(On Steady)
RED
Improper breath test delivered. User did not hum and/or blow in a steady solid fashion.
Device will default back to the WAIT stage and you may repeat the test.
PASS
(On Steady)
GREEN
User has properly passed the test and may start the vehicle.
WARN
(On Steady)
ORANGE
After delivering a breath test, alcohol was detected at a low level, but not enough to FAIL and
you may still start the vehicle.
FAIL
(On Steady)
RED
User has failed the alcohol breath test.
Device will either default to WAIT or to TEMPORARY LOCKOUT.
FAIL
(Flashing)
RED
You have failed the breath test with a very high BAC reading.
Device will either default to WAIT or to TEMPORARY LOCKOUT.
RUN
(Flashing)
GREEN
You may start your vehicle at this time by turning the key either after passing a test or
while in Stall Protect if your vehicle stalls out.
RUN
(On Steady)
GREEN
This indicates that the engine is running.
POWER
(On Steady)
GREEN
This light comes ON when key is ON and goes OFF when the Key is turned OFF,
indicating proper power to the Device.
POWER
(Flashing)
GREEN
Indicates your vehicle battery is weak or the voltage is low.
SERVICE
(Flashing)
RED
This is a reminder that the scheduled monitoring appointment is coming due.
SERVICE
(Flashing)
RED
You are either past due for service or in EARLY RECALL due to violations, tampering,
circumvention or a device problem. The device will enter a PERMANENT LOCKOUT if you fail to
return to the service center.
LOCKOUT
(Flashing)
RED
SERVICE
(Flashing in
Sequence)
RED
before the Device goes into PERMANENT LOCKOUT.
LOCKOUT
(Flashing in
Sequence)
RED
LOCKOUT
(On Steady)
RED
Your vehicle is temporarily inoperable because you had too many failed tests, high BAC tests
or aborts or is due to a pre-set restricted driving period. The TEMPORARY LOCKOUT Period can
vary from 5 minutes to 24 hours before it will accept another breath test.
SERVICE
(On Steady)
RED
Your vehicle is inoperable and the Device and Vehicle are in PERMANENT LOCKOUT.
You must call the Service Center to make arrangements for a service call or to have the
vehicle towed.
LOCKOUT
(On Steady)
RED
Indicator Color Description
WAIT
(On Steady)
ORANGE
The Device is preparing to accept a breath test. This lasts for varying amounts of time depending
WAIT
(Flashing)
ORANGE
Before a test is taken: This indicates that the Camera has not detected the Handset in the
image. The Handset will emit a ‘BLAP BLAP’ tone.
After a test is taken: This indicates that the Camera was not able to detect or track the Handset
during the test.
BLOW
(Flashing)
GREEN
The Device is ready to accept a breath test. Hum and blow into the Device for about 5 seconds.
Device will emit a low tone indicating that you are blowing properly.
ABORT
(On Steady)
RED
Improper breath test delivered. User did not hum and/or blow in a steady solid fashion.
Device will default back to the WAIT stage and you may repeat the test.
PASS
(On Steady)
GREEN
User has properly passed the test and may start the vehicle.
WARN
(On Steady)
ORANGE
After delivering a breath test, alcohol was detected at a low level, but not enough to FAIL and
you may still start the vehicle.
FAIL
(On Steady)
RED
User has failed the alcohol breath test.
Device will either default to WAIT or to TEMPORARY LOCKOUT.
FAIL
(Flashing)
RED
You have failed the breath test with a very high BAC reading.
Device will either default to WAIT or to TEMPORARY LOCKOUT.
RUN
(Flashing)
GREEN
You may start your vehicle at this time by turning the key either after passing a test or
while in Stall Protect if your vehicle stalls out.
RUN
(On Steady)
GREEN
This indicates that the engine is running.
POWER
(On Steady)
GREEN
This light comes ON when key is ON and goes OFF when the Key is turned OFF,
indicating proper power to the Device.
POWER
(Flashing)
GREEN
Indicates your vehicle battery is weak or the voltage is low.
SERVICE
(Flashing)
RED
This is a reminder that the scheduled monitoring appointment is coming due.
SERVICE
(Flashing)
RED
You are either past due for service or in EARLY RECALL due to violations, tampering,
circumvention or a device problem. The device will enter a PERMANENT LOCKOUT if you fail to
return to the service center.
LOCKOUT
(Flashing)
RED
SERVICE
(Flashing in
Sequence)
RED
before the Device goes into PERMANENT LOCKOUT.
LOCKOUT
(Flashing in
Sequence)
RED
LOCKOUT
(On Steady)
RED
Your vehicle is temporarily inoperable because you had too many failed tests, high BAC tests
or aborts or is due to a pre-set restricted driving period. The TEMPORARY LOCKOUT Period can
vary from 5 minutes to 24 hours before it will accept another breath test.
SERVICE
(On Steady)
RED
Your vehicle is inoperable and the Device and Vehicle are in PERMANENT LOCKOUT.
You must call the Service Center to make arrangements for a service call or to have the
vehicle towed.
LOCKOUT
(On Steady)
RED
Indicator Color Description
WAIT
(On Steady)
ORANGE
The Device is preparing to accept a breath test. This lasts for varying amounts of time depending
WAIT
(Flashing)
ORANGE
Before a test is taken: This indicates that the Camera has not detected the Handset in the
image. The Handset will emit a ‘BLAP BLAP’ tone.
After a test is taken: This indicates that the Camera was not able to detect or track the Handset
during the test.
BLOW
(Flashing)
GREEN
The Device is ready to accept a breath test. Hum and blow into the Device for about 5 seconds.
Device will emit a low tone indicating that you are blowing properly.
ABORT
(On Steady)
RED
Improper breath test delivered. User did not hum and/or blow in a steady solid fashion.
Device will default back to the WAIT stage and you may repeat the test.
PASS
(On Steady)
GREEN
User has properly passed the test and may start the vehicle.
WARN
(On Steady)
ORANGE
After delivering a breath test, alcohol was detected at a low level, but not enough to FAIL and
you may still start the vehicle.
FAIL
(On Steady)
RED
User has failed the alcohol breath test.
Device will either default to WAIT or to TEMPORARY LOCKOUT.
FAIL
(Flashing)
RED
You have failed the breath test with a very high BAC reading.
Device will either default to WAIT or to TEMPORARY LOCKOUT.
RUN
(Flashing)
GREEN
You may start your vehicle at this time by turning the key either after passing a test or
while in Stall Protect if your vehicle stalls out.
RUN
(On Steady)
GREEN
This indicates that the engine is running.
POWER
(On Steady)
GREEN
This light comes ON when key is ON and goes OFF when the Key is turned OFF,
indicating proper power to the Device.
POWER
(Flashing)
GREEN
Indicates your vehicle battery is weak or the voltage is low.
SERVICE
(Flashing)
RED
This is a reminder that the scheduled monitoring appointment is coming due.
SERVICE
(Flashing)
RED
You are either past due for service or in EARLY RECALL due to violations, tampering,
circumvention or a device problem. The device will enter a PERMANENT LOCKOUT if you fail to
return to the service center.
LOCKOUT
(Flashing)
RED
SERVICE
(Flashing in
Sequence)
RED
before the Device goes into PERMANENT LOCKOUT.
LOCKOUT
(Flashing in
Sequence)
RED
LOCKOUT
(On Steady)
RED
Your vehicle is temporarily inoperable because you had too many failed tests, high BAC tests
or aborts or is due to a pre-set restricted driving period. The TEMPORARY LOCKOUT Period can
vary from 5 minutes to 24 hours before it will accept another breath test.
SERVICE
(On Steady)
RED
Your vehicle is inoperable and the Device and Vehicle are in PERMANENT LOCKOUT.
You must call the Service Center to make arrangements for a service call or to have the
vehicle towed.
LOCKOUT
(On Steady)
RED
