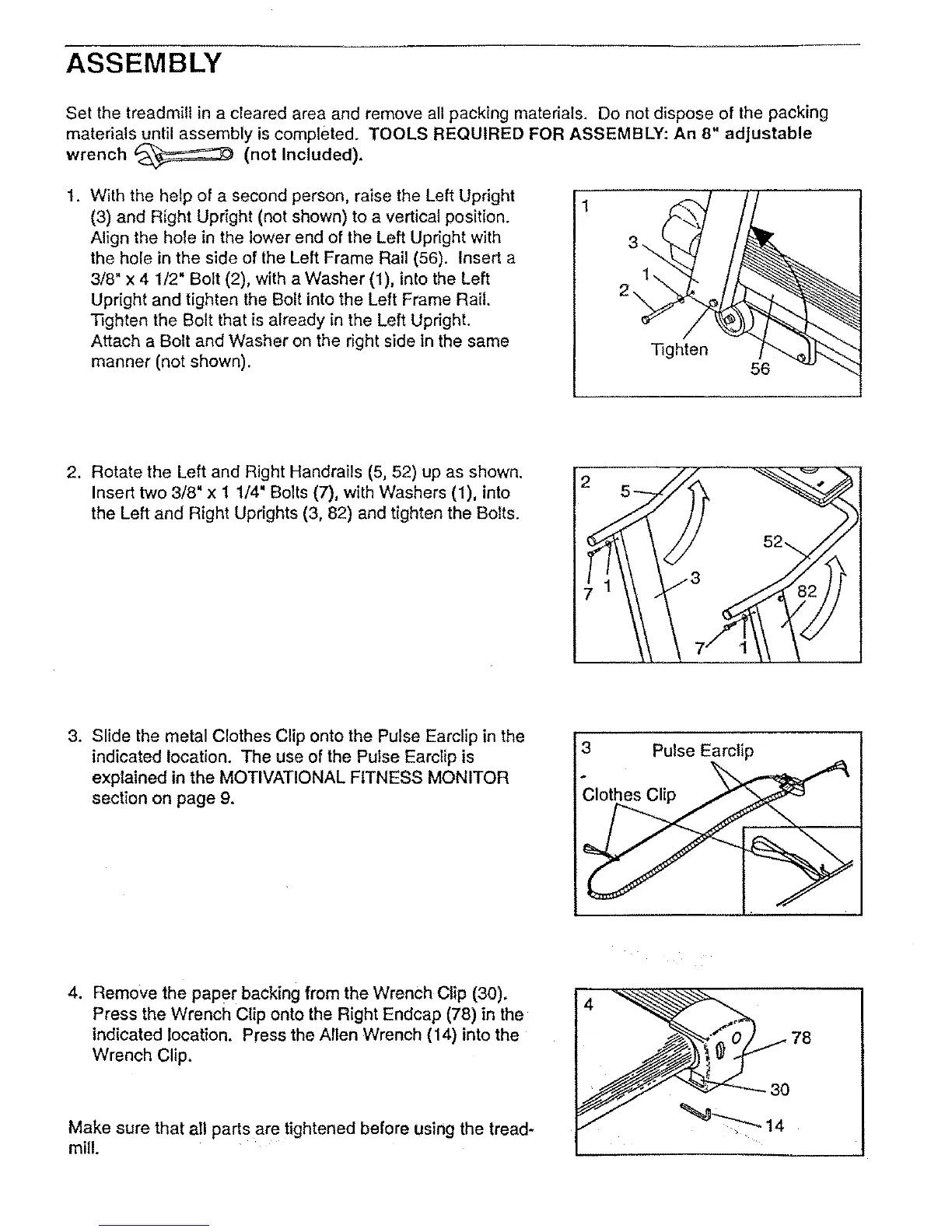

ASSEMBLY
Set the treadmill in a cleared area and remove all packing materials. Do not dispose of the packing
materials until assembly is completed. TOOLS REQUIRED FOR ASSEMBLY: An 8" adjustable
wrench _ (not Included).
1. With the help of a second person, raise the Left Upright
(3) and Right Upright (not shown) to a vertical position.
Align the hole in the lower end of the Left Upright with
the hole in the side of the Left Frame Rail (56). Insert a
3/8" x 4 1/2" Bolt (2), with a Washer (1), into the Left
Upright and tighten the Bolt into the Left Frame Rail
Tighten the Bolt that is already in the Left Upright.
Attach a Bolt and Washer on the right side in the same
manner (not shown).
2
Tighten
58 -- "--
2. Rotate the Left and Right Handrails (5, 52) up as shown.
Insert two 3/8" x I 1/4" Bolts (7), with Washers (1), into
the Left and Right Uprights (3, 82) and tighten the Bolts.
3. Slide the metal Clothes Clip onto the Pulse Earclip in the
indicated location. The use of the Pulse Earclip is
explained in the MOTIVATIONAL FITNESS MONITOR
section on page 9.
3 Pulse Earclip
4. Remove the paper backing from the Wrench Clip (30),
Press the Wrench Clip onto the Right Endcap (78) in the
indicated location. Press the Allen Wrench (14) into the
Wrench Clip,
Make sure that all parts are tightened before using the tread-
mill.
