AM-HLTMC-OM
Rev AA January 2018
TECHNICAL INFORMATION

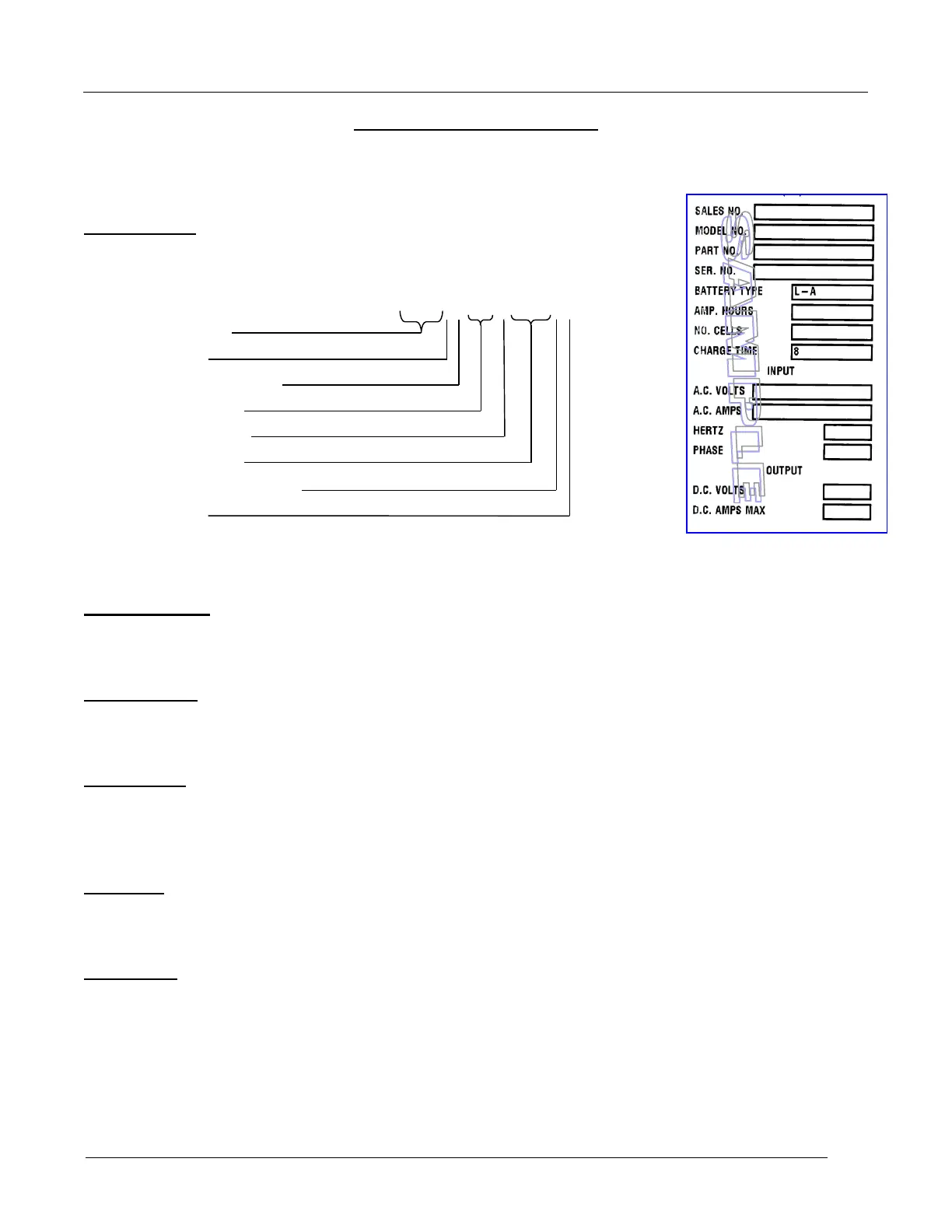

The nameplate, located on the outside of the charger, should be used to check this application
before installation.
Part Number
This number specifies in general the characteristics of this particular
charger and for this reason it is required in any discussion or
correspondence regarding this unit.
LCM1C 24 A 100 YO
Model type
Phase
Standard or CEC
DC Voltage
Cabinet Size
DC Current
Input Voltage Code
Options
Serial Number
This number indicates complete information about the specific charger. It must be supplied with
the part number on any correspondence or discussion regarding this charger.
Battery Type
The chemical content construction of the battery this unit is designed to charge is given in this
part of the nameplate. (L-A = Lead-Acid)
Amp-Hours
The information supplied here is the maximum ampere-hours capacity of this charger. Charging
batteries of ampere-hour capacities not specified here might cause the charger to deviate from
the specifications.
No. Cells
This portion of the nameplate gives the number of cells this unit will charge. This number must
match exactly with any battery connected to the charger output.
A.C. Volts
The nameplate shows the input voltage accommodated by this charger.
IMPORTANT: The charger will operate only on nominal line voltages stamped on the
nameplate.
Failure to select the correct voltage will result in damage to the charger and/or the battery.
