TOOLS AND HARDWARE REQUIRED FOR THIS PAGE
10
SEC
1
SEC
1.3

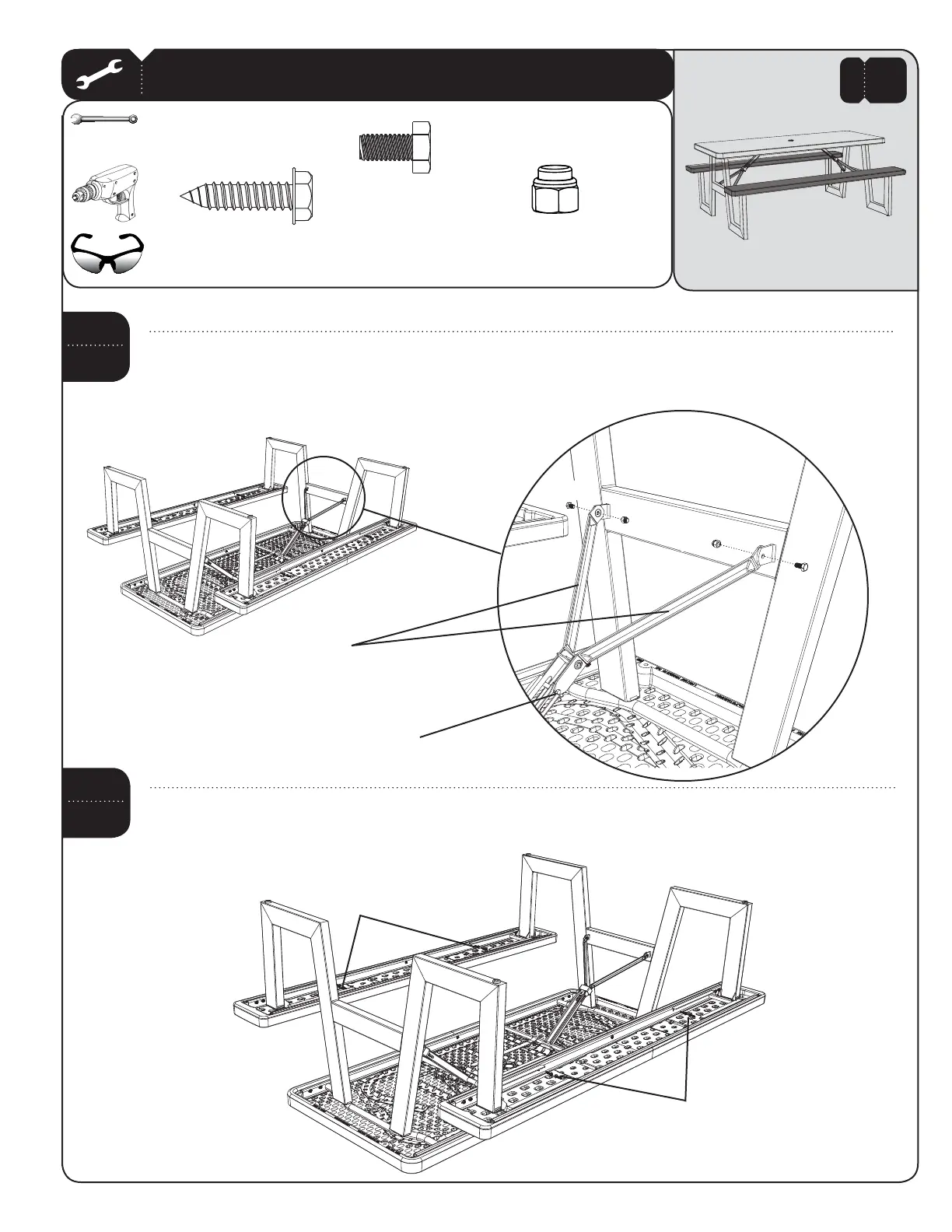

Lift the Legs upright and, while another adult holes the Table Legs in place, rotate the diagonal supports of a
Table Leg Brace until the locking pin snaps into the notches located at the ends of the diagonal supports as
illustrated. Connect the other ends of the supports to the Table Leg using two (2) M6 x 1 x 12mm Hex Bolts (BWG) and
two (2) M6 x 1 Nylock Cap Nuts (AON). Repeat this step for the other Table Leg Brace.
Locking Pin
Diagonal Supports
SEC
1.9
BWG
BWG
AON
AON
10mm (x2)
BWG (x4)
AON (x4)
SEC
1.10
While another adult holds the Table Legs upright, insert four (4) 6.3mm x 1.8 x 25mm Hex-Head Screws (BWH) through
the holes in the Bench Channels and into the Bench as shown to keep the Sliding End Caps under the Glide
Rails. Do not overtighten. Repeat this step for the other Bench.
BWH
BWH
2 ADULTS REQUIRED FOR THESE STEPS
BWH (x8)
To Next Page
