TOOLS AND HARDWARE REQUIRED / INSTRUMENTAL Y HERRAJE REQUERIDO / OUTILS ET QUINCAILLERIE REQUIS
X SECTION 13 (CONTINUED) / SECCIÓN 13 (CONTINUACIÓN) / SECTION 13 (SUITE)
ARV (x7)

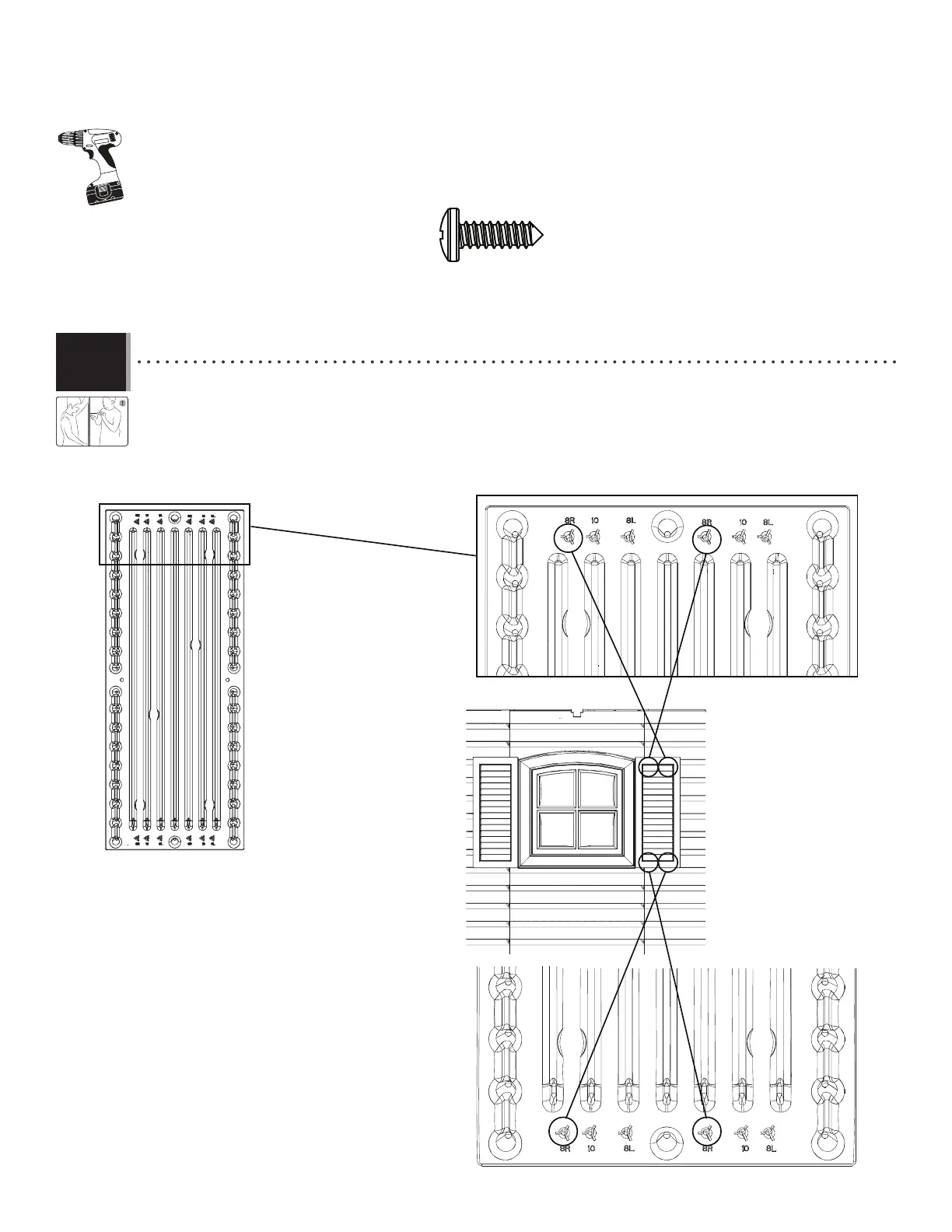

• Align the screw bosses in the Shutter (AYI) with the holes in the Wall Panels. Secure the Shutter to the Panels using
the Screws (ARV) provided.
• Alinee los huecos de montaje en la Contraventana (AYI) con los agujeros en los Paneles murales. Sujete la
Contraventana a los Paneles usando los Tornillos (ARV) incluidos.
• Alignez les bossages de montage dans le Volet (AYI) avec les trous dans les Panneaux muraux. Attachez le Volet
aux Panneaux à l’aide des Vis (ARV) fournies.
AYI
R
13.2
