Lifetime 60231 - Page 18

18

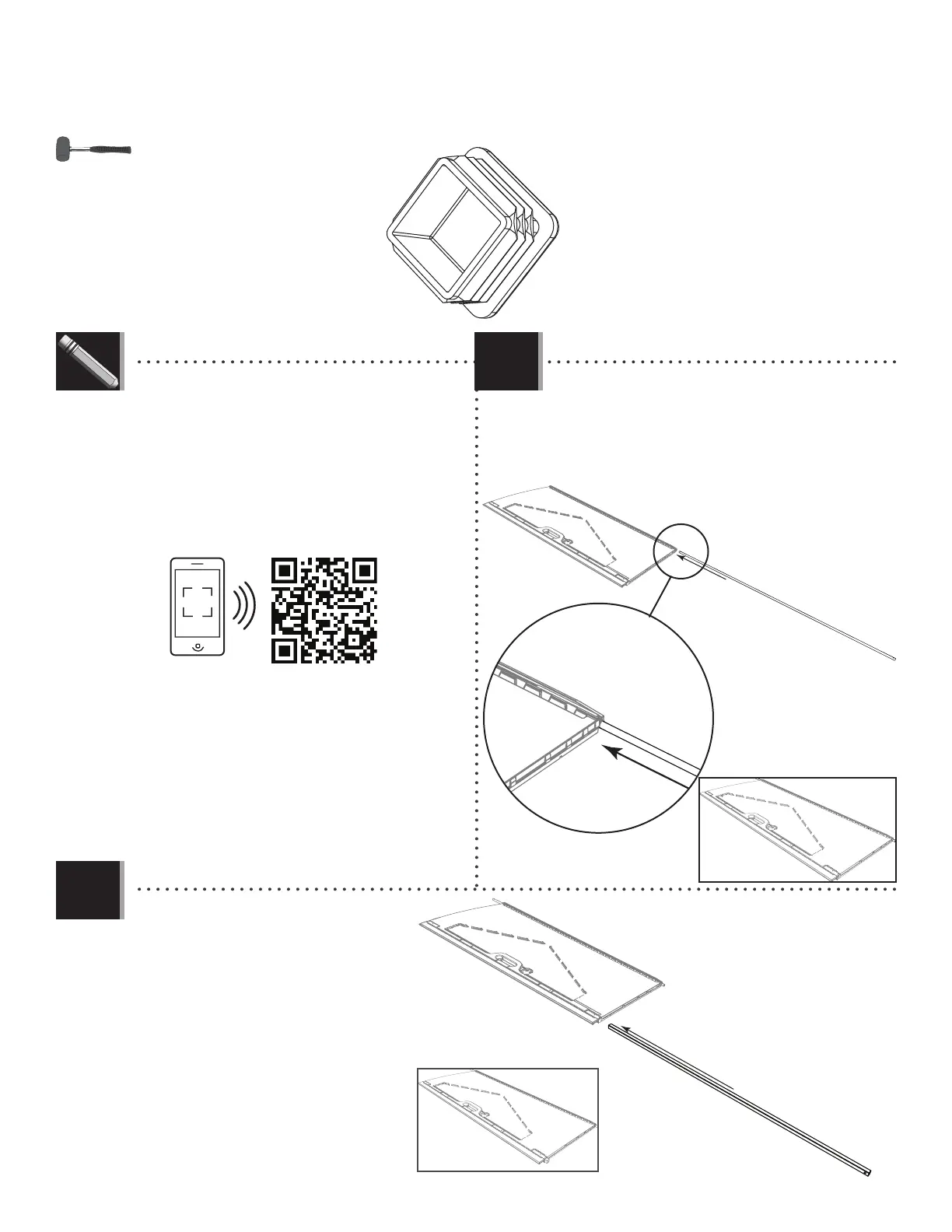

TOOLS AND HARDWARE REQUIRED
X SECTION 4 (CONTINUED)
4.2
• If you have trouble with this section, follow the code below
to view a video on the assembly in this section.
http://go.lifetime.com/7leftdoor
CHI
CHH
AGO
• Slide a Hinge Tube (CHH) down into the hole in the
Left Door (AGO).
BBH (x1)
4.1
LIFETIME
©
• Insert a Square Tube (CHI) into the square
hole in the bottom of the Door until the
end hangs out about 1/2" (12 mm).
