26
TOOLS AND HARDWARE REQUIRED
X SECTION 5 (CONTINUED)

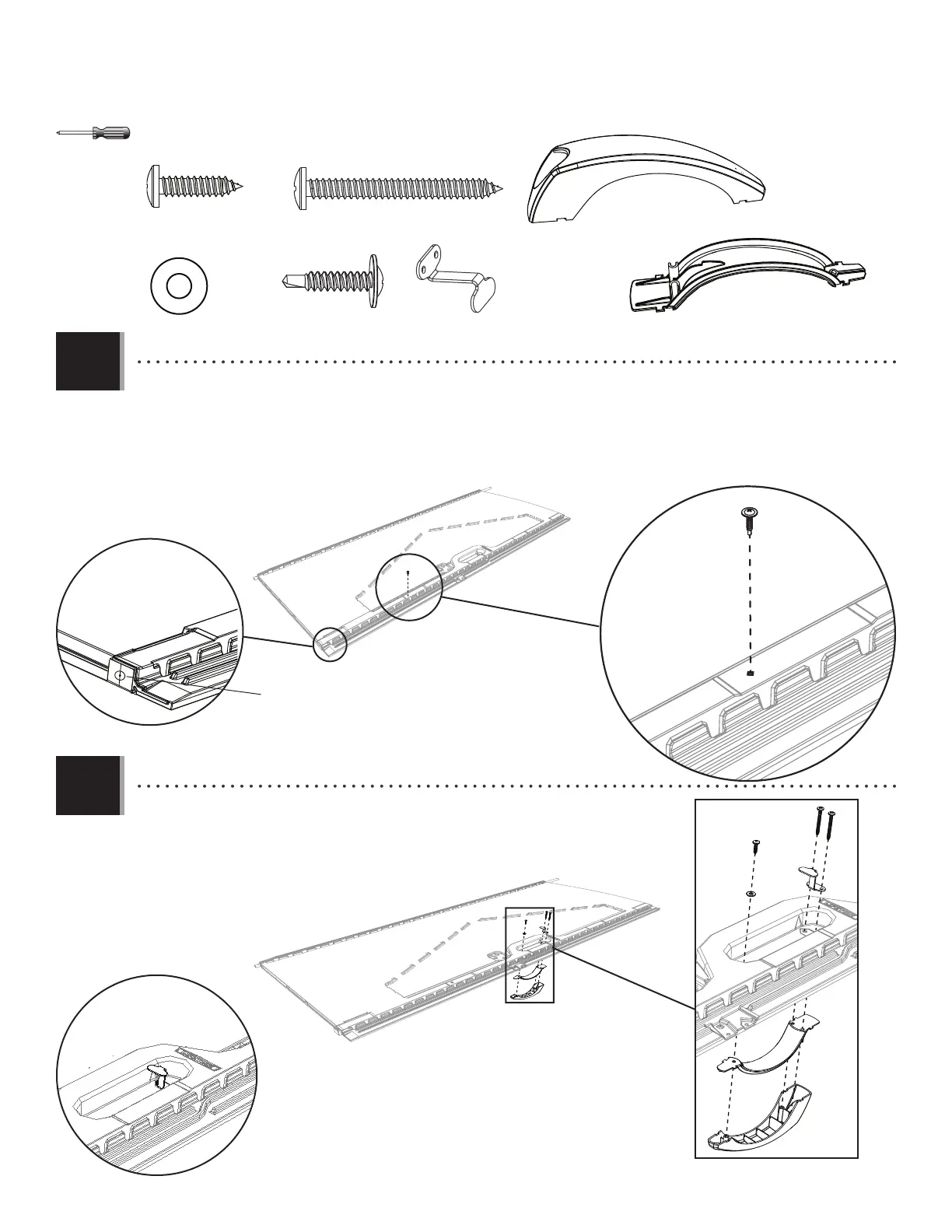

• Attach the Handle pieces (BYR & BYS) using the hardware provided.
AEE (x1)
ADW (x1)
BYZ (x2)
BBI (x1)
BBI
BBI
ADW
AEE
5.5
5.6
BYZ
BYZ
BYS
BYR
CHK
• Flush with the Right Door
• Once the End Cap is fl ush with the bottom of the Door, insert Self-Drilling/Self-Tapping Screw (CHK) into the Door Panel
at the location shown to hold the Square Tube in place.
CHK (x1)
BYR (x1)
BYS (x1)
To Next Page
