Lifetime 60231 - Page 37

37
TOOLS AND HARDWARE REQUIRED
X SECTION 7 (CONTINUED)
ADZ (x15)
AHD
AHD
AGL
EUF
Click!

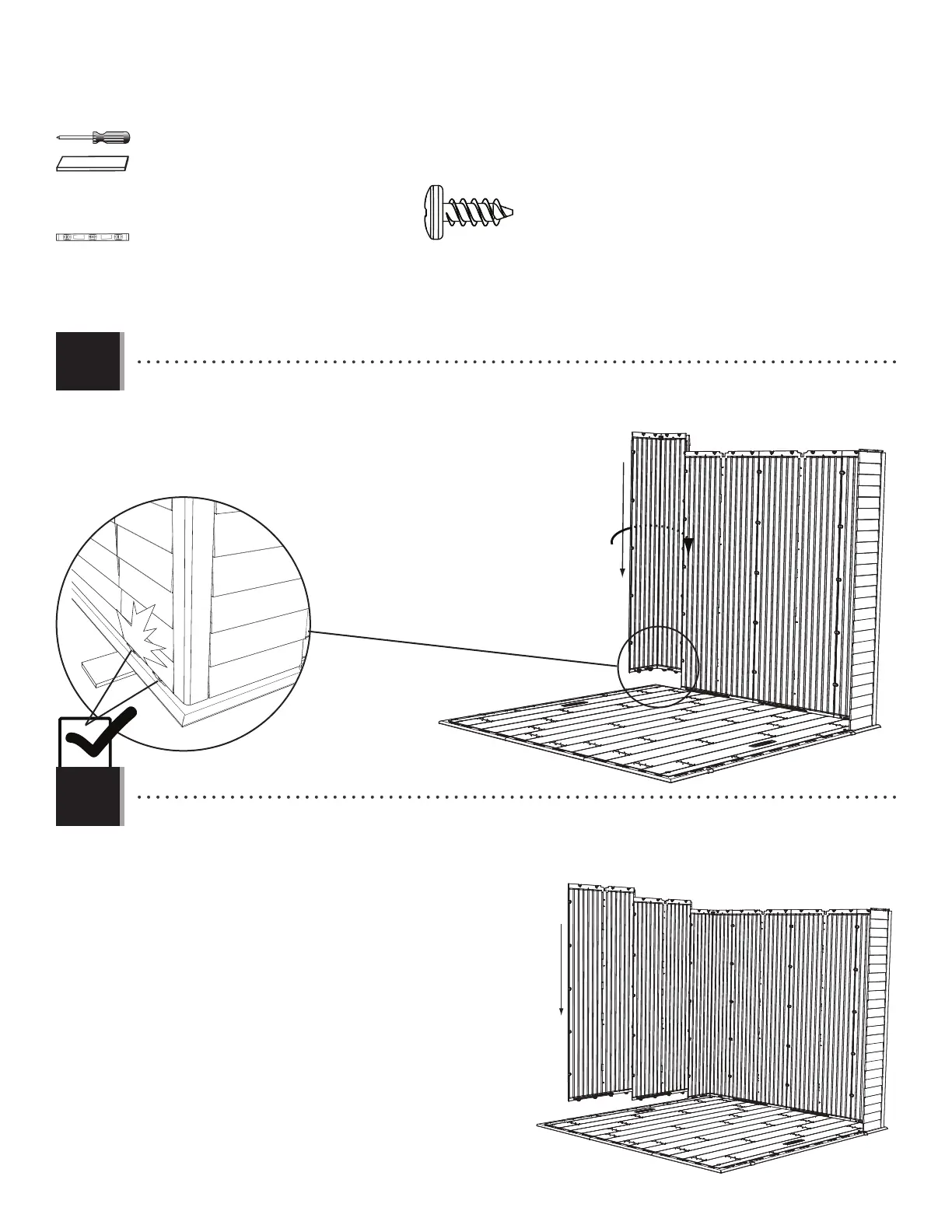

• Insert the tabs of two (2) Wall Panels (AHD) into the slots along the rear edge of the Floor. Slide the Panels toward
the Corner Panel. Secure the Panels to one another using fi ve (5) Screws (ADZ) for each Panel.
• Attach this Corner Panel in the same manner you did the previous Corner Panel.
7.7
7.8
(EUF)
