57

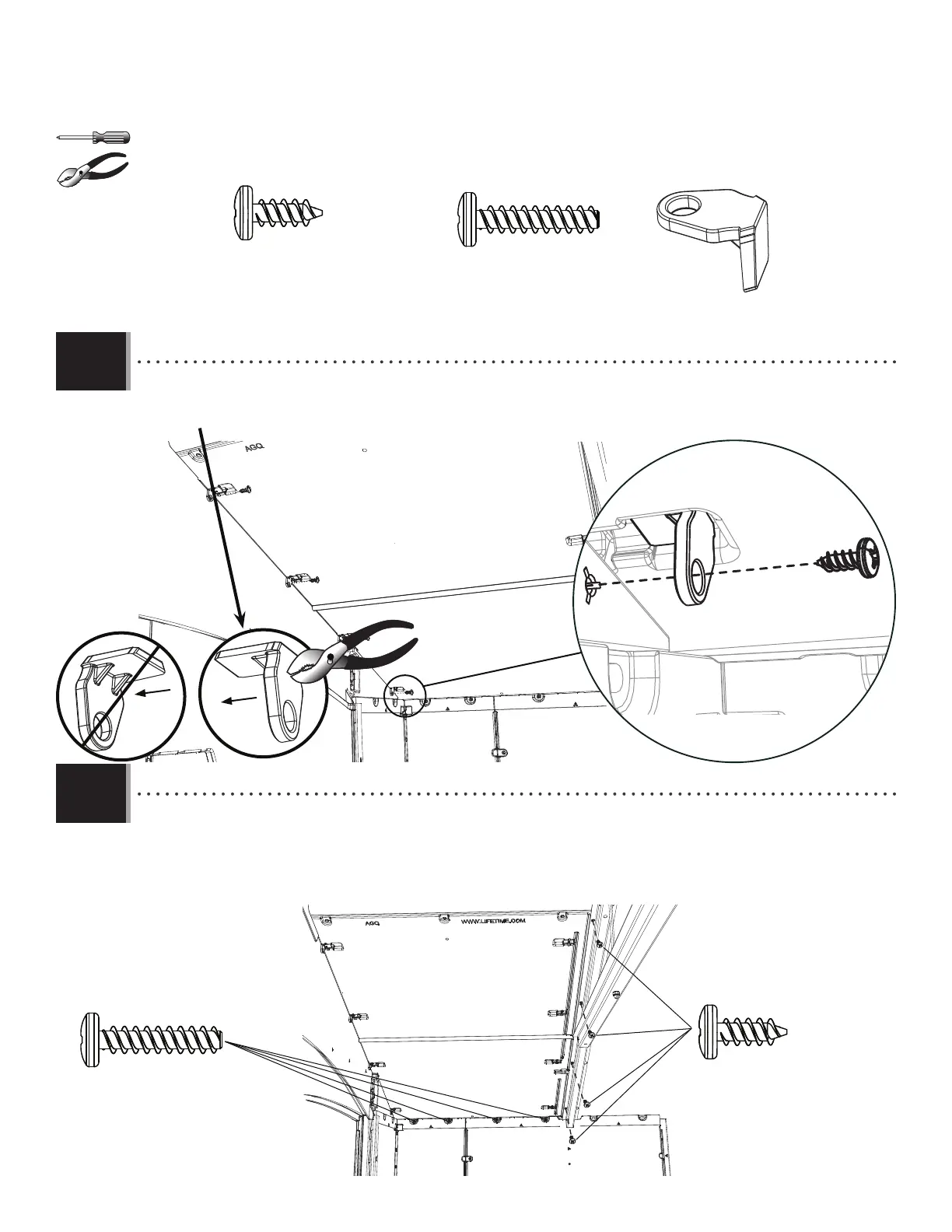

TOOLS AND HARDWARE REQUIRED
X SECTION 10 (CONTINUED)
10.4
10.5
ADZ (x5)
ADV (x4)
ADV
ADZ
• Insert four (4) long Screws (ADV) along the top edge of the Wall Panel and four (4) short Screws (ADZ) along the Truss as
shown.
BYT (x1)
ADZ
BYT
• Orient the bottom-most Clip (BYT) as shown in this image, and insert it into the location indicated.
BYT
