27
TOOLS & HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS
X SECTION 2 (CONTINUED) / SECTION 2 (SUITE) / SECCIÓN 2 (CONTINUACIÓN)
2.7
HDR
HDR
DXW
DXW
HDR
HDR
HDR (x4)
DWJ (x2)
DWJ
DWJ

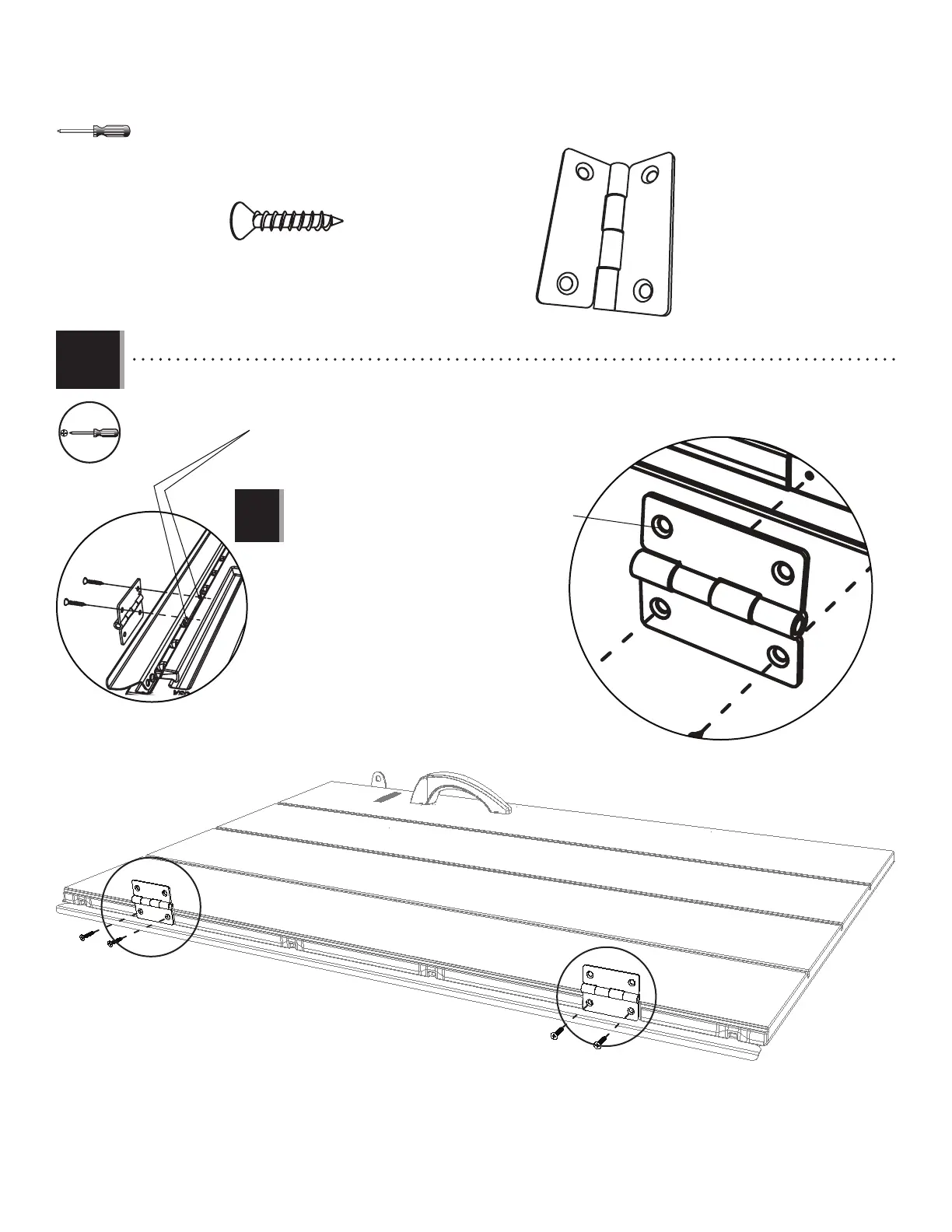

• These Screws (HDR) go through the Hinge, Door, and through the holes in the Channel.
• Ces vis (HDR) vont à travers la charnière, la porte, et les trous dans le canal.
• Estos tornillos (HDR) atravesan la bisagra, la puerta, y los agujeros en el canal.
Note: Chamfered side faces away from Door.
Remarque : Le côté chanfreiné doit être opposé à la porte.
Nota: El lado biselado debe dar la espalda a la puerta.
!
