Lifetime 6417 - Page 33

33
TOOLS AND HARDWARE REQUIRED FOR THIS PAGE
SEC
AFQ
AAK
ADJ
AFH
AFQ
AAK (x4)
ADJ (x4)
7/16”Y
SEC
SEC

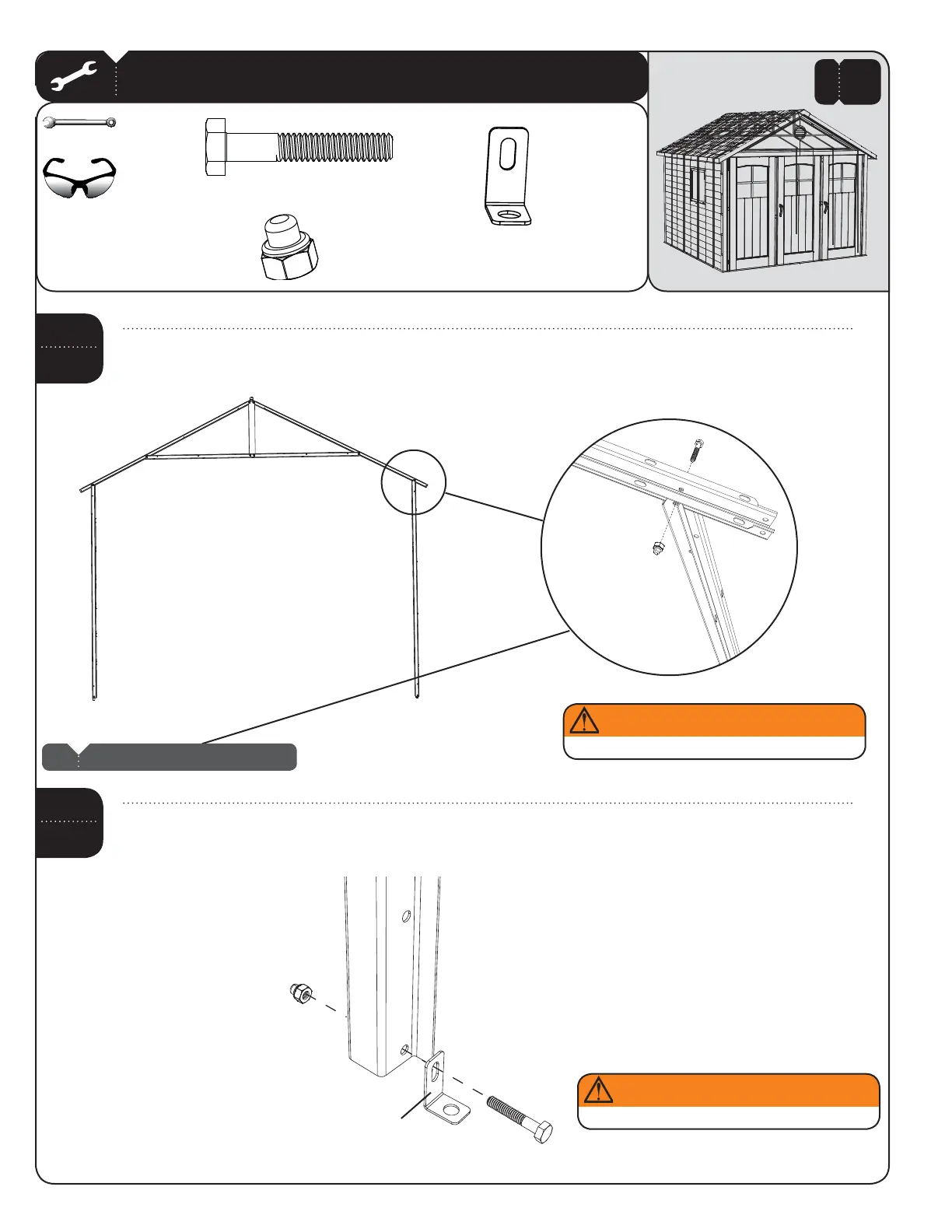

Attach Truss Assembly to two Wall Support Channels (AFQ) using 1/4” x 1 1/2” Hex Bolts (AAK) and 1/4” Cap Nuts (ADJ).
Do not completely tighten the Cap Nut until after Truss is secured to the Wall.
Attach one Floor Bracket (AHT) to the bottom of each Wall Support Channel and to the Floor. Tighten all hardware.
:PVOFFEPOMZEPUIJTTUFQJGZPVQMBOUPBODIPSZPVS4IFE4FFUIFi"ODIPSJOHUIF4IFEwTUFQBUUIFFOEPG
your Owner’s Manual.
Note: Only fi nger tighten hardware.
!
WARNING
Do not overtighten the Cap Nut.
ADJ
AFQ
AHT
AAK
WARNING
Do not overtighten the Cap Nut.
AHTY
(Not to scale)
3
3.3
3.4
REPEAT THIS SECTION FOR REMAINING TRUSSES
