Lifetime 6417 - Page 40

TOOLS AND HARDWARE REQUIRED FOR THIS PAGE
40
SEC
ADZ (x64)
SEC
5.1
SEC
5.2

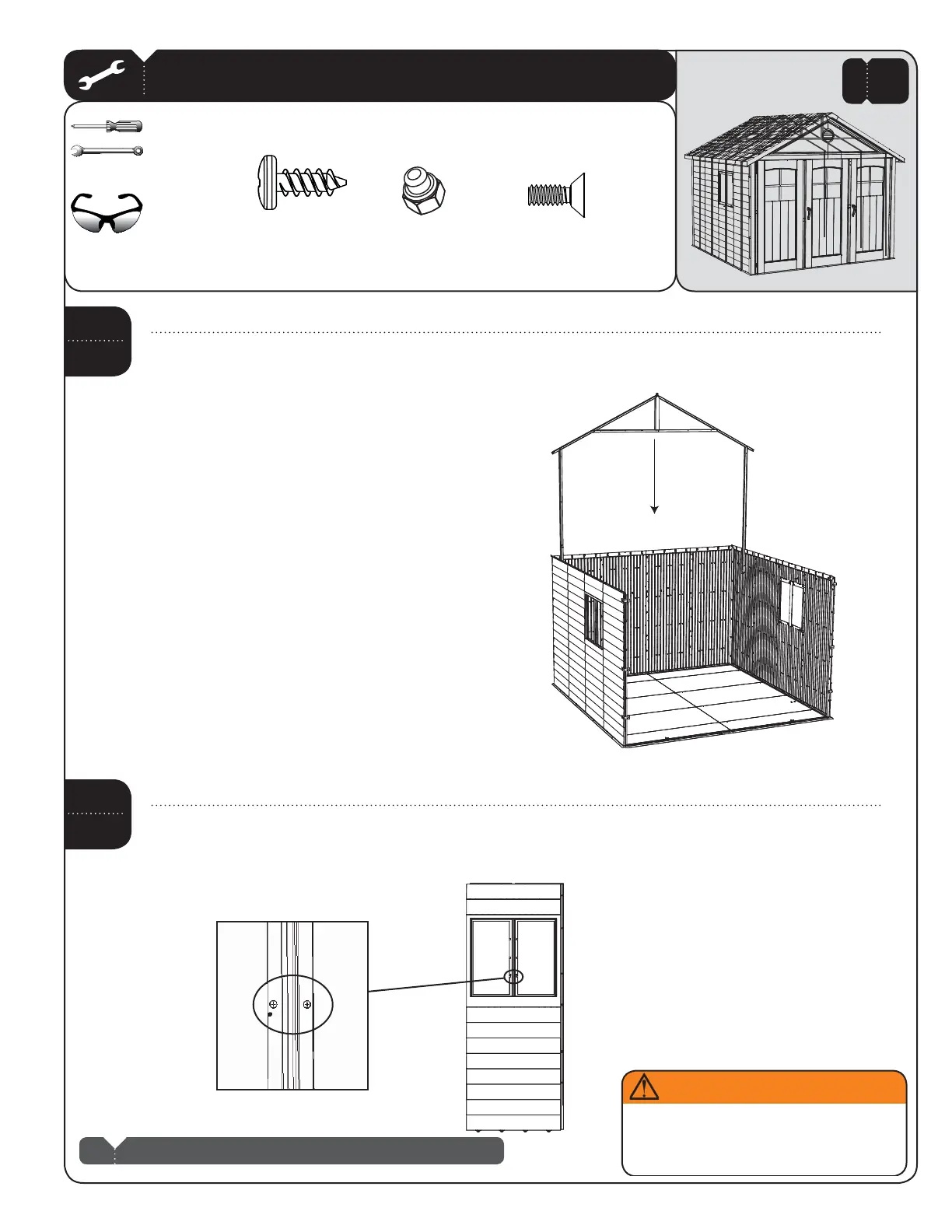

Starting at the back of the Shed, secure a Truss Frame Assembly to the center of each Left and Right Wall
Panel with the 1/4” x 5/8” Pan-Head Screws (ADZ). DO NOT use the 1/4” x 5/8” Pan-Head Screws (ADZ) to secure
the Truss Frame Assembly to the center divider in the Window Wall Panel.
4FDVSFUIF5SVTT'SBNF"TTFNCMZUPUIFDFOUFSEJWJEFSJOUIF8JOEPX8BMM1BOFMXJUIUXP#10 x 3/8” Flat-
Head Screws (ACD) through the holes in the center of the Window Wall Panels, and secure the Truss Frame
"TTFNCMZUPUIFDFOUFSEJWJEFSXJUIUXP#10 Cap Nuts (ADK). Repeat this step for second Window Wall Panel.
TRUSS INSTALLATION
5
Note: After installing Truss Assembly, tighten nuts completely.
!
ADK (x4)
ACD (x4)
WARNING
Do not overtighten the Cap Nut. If the end of
the Bolt breaks through the plastic cap, call our
Customer Service Department. Exposed threads
on the end of the Bolt may cause serious injuries.
3/8” Y
