Lifetime 6417 - Page 41

41
TOOLS AND HARDWARE REQUIRED FOR THIS PAGE
SEC
ADZY
ADJ (x8)
AAK (x8)

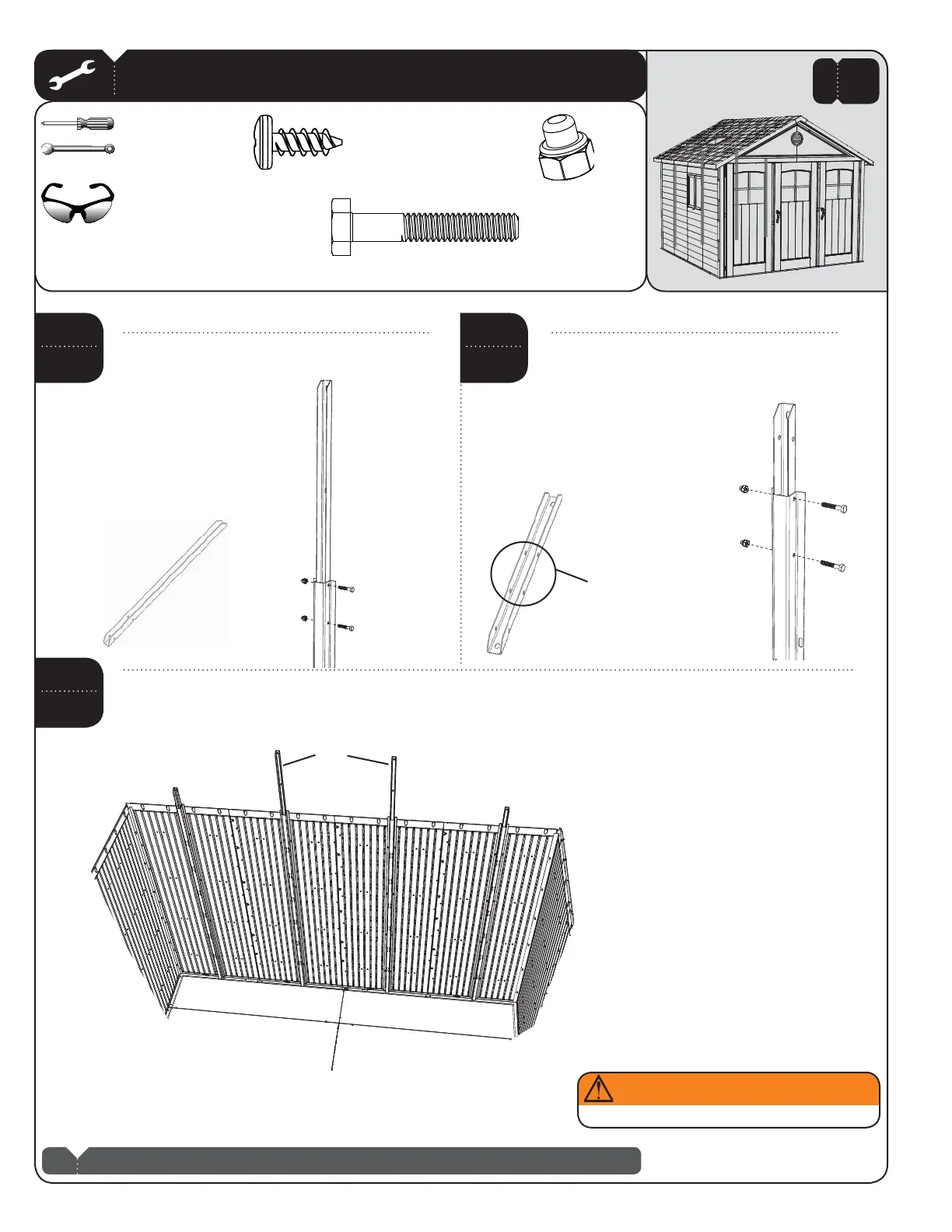

REAR GABLE SUPPORT INSTALLATION
Note: A second adult should apply pressure to the opposite side of the wall for easy insertion of screws.
!
SEC SEC
SEC
AAK
AAK
ADJ
ADJ
AFJ
AFJ
AFQ
Attach a Long Vertical Extension Channel (AFJ) to a
Wall Support Channel (AFQ). Repeat.
Attach a Short Vertical Extension Channel (AFN) to
a Wall Support Channel. Ensure Extension
Channel is installed in the correct direction.
Repeat.
Use these holes to
Attach the Wall Support
Channel
AFN
ADJ
ADJ
AAK
AAK
AFN
AFQ
4FDVSF8BMM4VQQPSUTUPSFBS8BMMVTJOHUIJSUZUXP1/4” x 5/8” Phillips Pan-Head Screws (ADZ). Position the
shorter Supports with Channels at the far left and far right Wall Panels. The long Supports are placed in the
NJEEMFQPTJUJPOT%POPUDPNQMFUFMZUJHIUFOUIF4DSFXTVOUJMBGUFSUIFSFBS(BCMFJTJOTUBMMFE
AFN
AFN
AFJ
WARNING
Do not overtighten the Cap Nut.
7/16”Y
5.5
5.3 5.4
5
