TOOLS AND HARDWARE REQUIRED FOR THIS PAGE
SEC
7.1
7.1
SEC
SEC

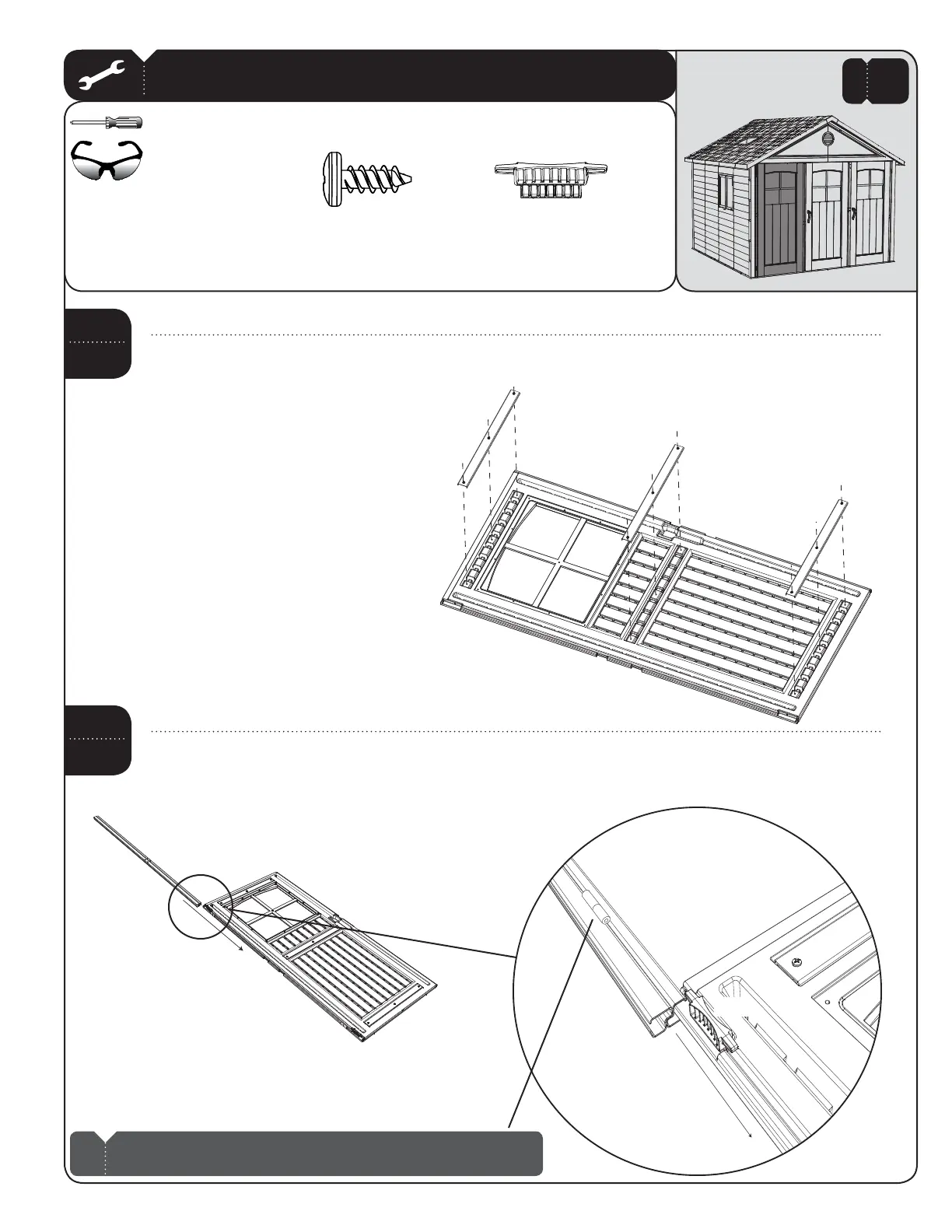

4FDVSFUISFFDoor Braces (AFB) to the inside of the Left Door (AGO) using the required hardware.
ADZ (x9)
AHM (x1)
(Not to scale)
AFB
AHM
BKZ
AFB
AGO
AFB
Place a Dead Bolt Latch (AHM) in the notch at the top of the door as shown. Orient a Center Hinge Assembly (BKZ) as
shown, and slide the Center Hinge Assembly down over the bottom lip of the Dead Bolt Latch and the end of
the Left Door.
Note: Ensure the Center Hinge Assembly (BKZ) is oriented as shown. The hinge
goes toward the back of the door.
!
LEFT DOOR ASSEMBLY
7
7.1
7.2
