Lifetime 6417 - Page 47

47
TOOLS AND HARDWARE REQUIRED FOR THIS PAGE
SEC
7.1
7.1
SEC
SEC

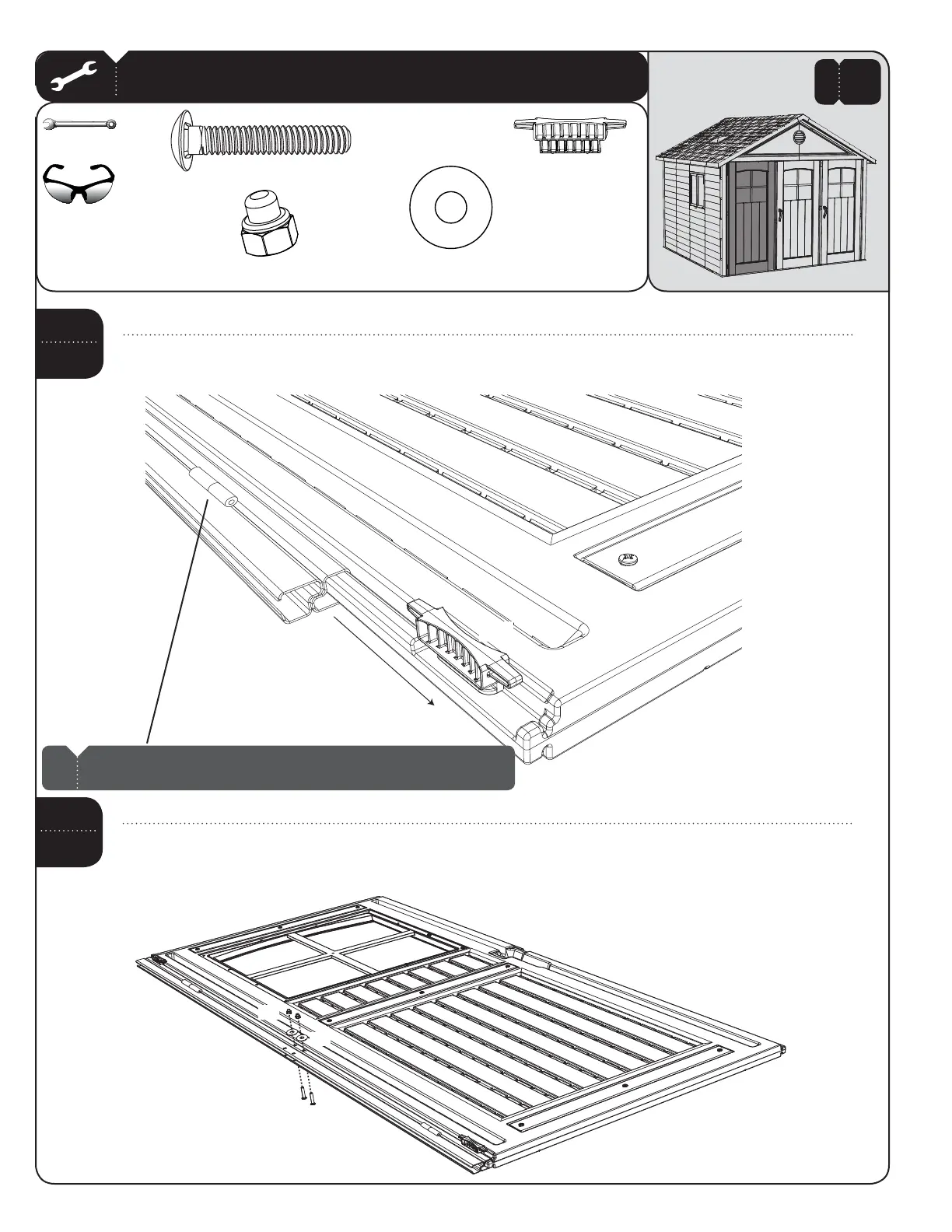

Place a second Dead Bolt Latch (AHM) in the notch at the bottom of the Left Door, and continue sliding the Center
Hinge Assembly (BKZ) over the Left Door and over bottom lip of the second Dead Bolt Latch.
Align the holes in the center of the Center Hinge Assembly with the notch in the edge of the Left Door. Secure
The Center Hinge Assembly to the Left Door using the required hardware.
AHM (x1)
(Not to scale)
ABUY
7/16”
AHM
BKZ
ABU
ADJ
AEB
ADJY
Note: Ensure the Center Hinge Assembly (BKZ) is oriented as shown. The hinge
goes toward the back of the door.
!
AEBY
7
7.3
7.4
