57
TOOLS AND HARDWARE REQUIRED FOR THIS PAGE
SEC
ADW (x1)
AHW (x1)
(Not to scale)
AHW
AHY (x1)
7.1
7.1
SEC
SEC

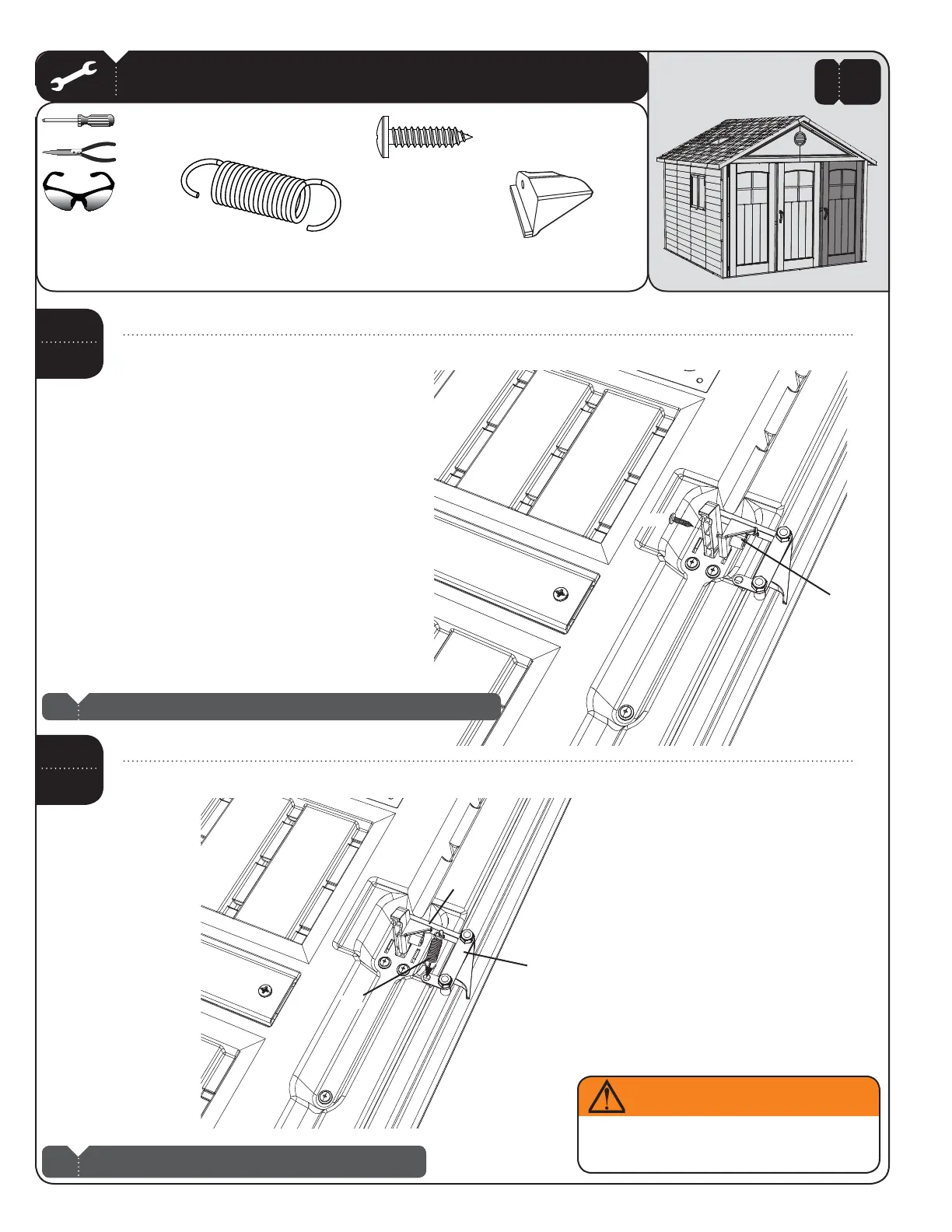

Connect the Thumb Lever Extension (AHW) to the Thumb Lever with one (1) #10 x 3/4” Phillips Pan-Head Screw (ADW).
Connect the Latch Spring (AHY) to the Extended Door Latch (AHV) and Latch Cover Plate (AHX).
ADW
Note: The lip of the Thumb Lever Extension (AHW) fi ts under the Thumb Lever .
!
Note: Use pliers to pull spring down and hook into bottom hole.
!
WARNING
While performing this step, each person
should use protective eye glasses to help
prevent serious eye injury.
AHY
AHV
AHX
9
9.6
9.7
To Next Page
