TOOLS AND HARDWARE REQUIRED FOR THIS PAGE
71
SEC
8.4
8.4
8.1
8.1
7.1
7.1
SEC
10.21
SEC
10.22

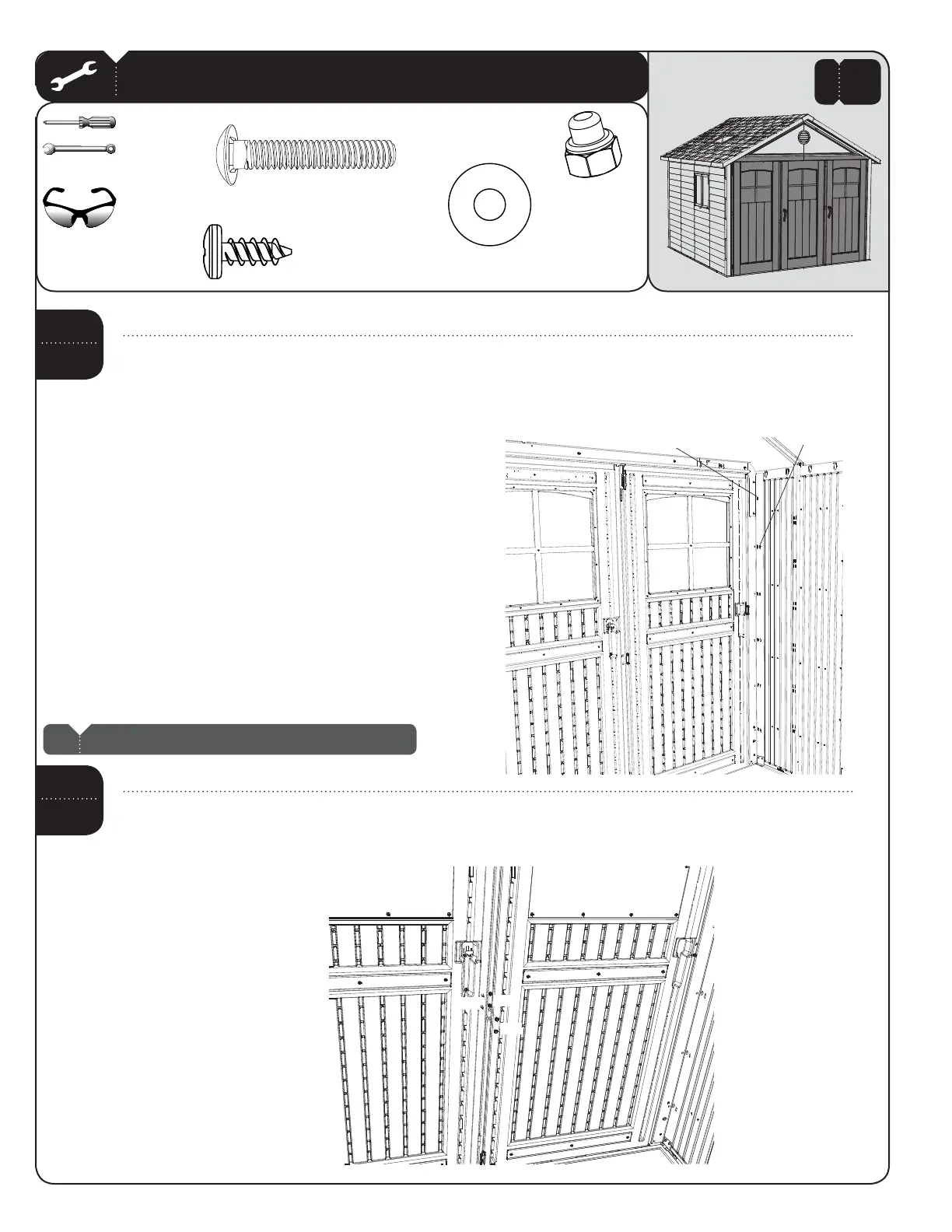

There are two columns of holes along the Corner Frames. Align the column of six (6) holes (Column 1) in the
left Corner Frame with those near the end of the Wall Panel. While at least one adult holds the Door/Frame
Assembly in place, connect the left Corner Frame to the Wall Panel using six (6) 1/4” x 5/8” Pan-Head Screws (ADZ).
Align the holes in the Door Hinge End Channel with the notch in the Center Door and secure the Center Door to
the Hinge using the required hardware.
Column 2
Column 1
Column 2Column 1
Note: Use the first column of holes in from the Left Door.
!
ADJ
AEB
ABU
AT LEAST TWO ADULTS REQUIRED FOR THIS STEP
7/16”
ADJY
ADZ (x6)
ABUY
10
AEBY
