Lifetime 6417 - Page 72

TOOLS AND HARDWARE REQUIRED FOR THIS PAGE
72
SEC
8.48.1
7.1
SEC
10.23

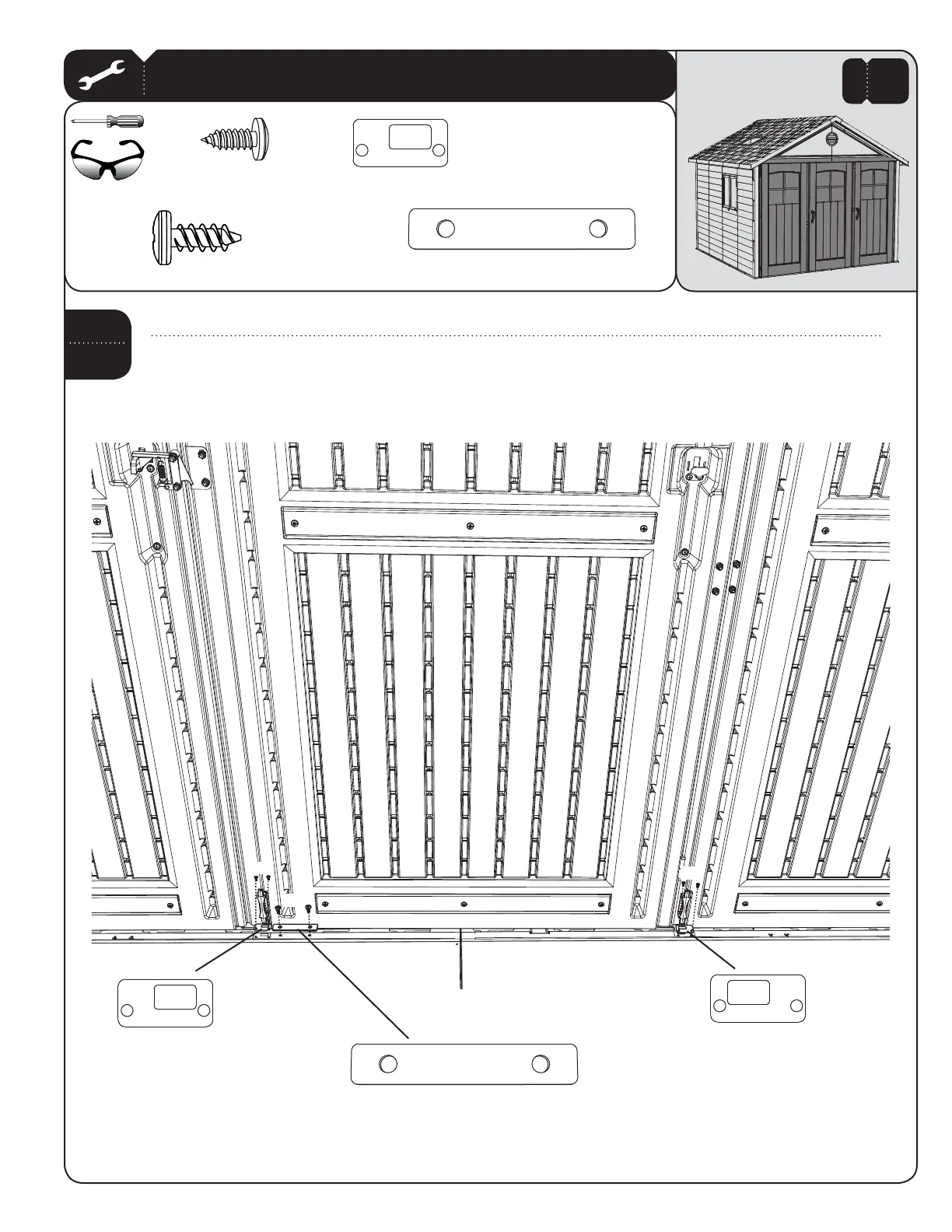

1MBDFUIFUXPDead Bolt Strike Plates (AHL) in the indentations on the Floor Panels at the locations shown.
0SJFOUUIF'MPPS4USJLF1MBUFTTPUIFIPMFTNBUDIUIPTFJOUIF'MPPS1BOFMTBOETFDVSFXJUIUXP#10 x 1/2”
Pan-Head Screws (ADX). Finally, secure the 4” Floor Strike Plate (BBJ)BUUIFMPDBUJPOTIPXOVTJOHUXP1/4” x 5/8”
Pan-Head Screws (ADZ).
ADZ
ADX
ADX
ADZY
ADX (x4)
BBJ
BBJ (x1)
AHL
AHL
AHLY
