Lifetime 6417 - Page 93

93
TOOLS AND HARDWARE REQUIRED FOR THIS PAGE
SEC
ACF ACF
AIE
AIN
ADX
AEE
AEE
AIV AIV
AIN
AIN
AIE
AIN
ADXY
AINY
(Not to scale)
AEEY
ACFY
SEC
SEC

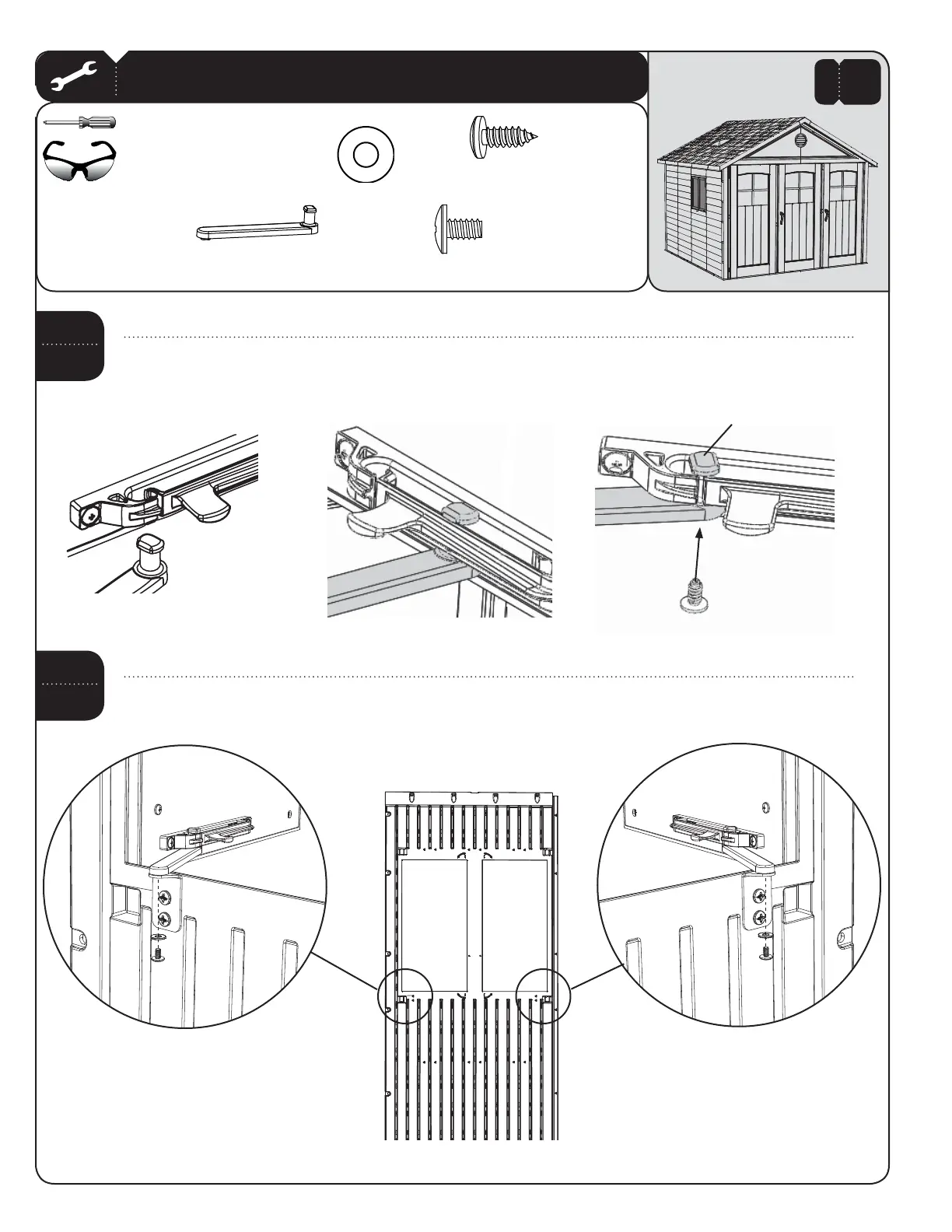

Fit a Sliding Window Stay (AIN) into the Mounted Window Stay. To add rigidity to the nub of the Sliding Window
Stays, insert #10 x 1/2” Pan-Head Screws (ADX) as shown.
Attach a Sliding Window Stay (AIN) to the Window Stay Bracket (AIV) using the required hardware.
15
15.5
15.6
