Lifetime 6417 - Page 94

94
TOOLS AND HARDWARE REQUIRED FOR THIS PAGE
SEC
Notch
Ridge
ACB (x4)
ACB
ACB
AIU
AIU
AIT
AIT
AIT (x4)
(Not to scale)
AIU (x4)
(Not to scale)
SEC

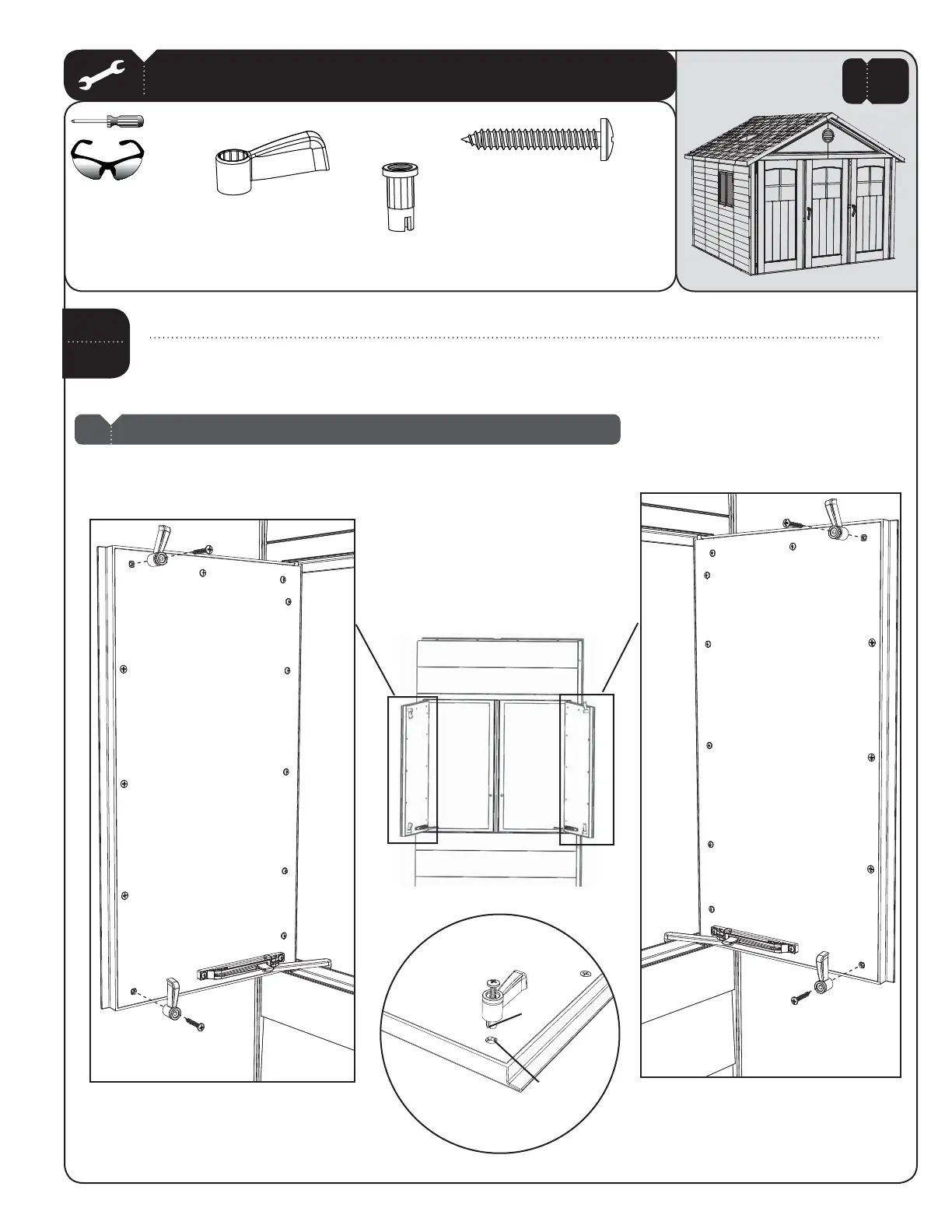

Fit a Window Latch Bearing (AIU) into a Window Latch (AIT). Attach the Window Latch to the upper latch location with a
#10 x 1 1/4” Pan-Head Screw (ACB). Repeat for other Window Latches.
Note: Ensure notch in Window Latch Bearing fi ts over the plastic ridge in the Window Frame.
!
15
15.7
