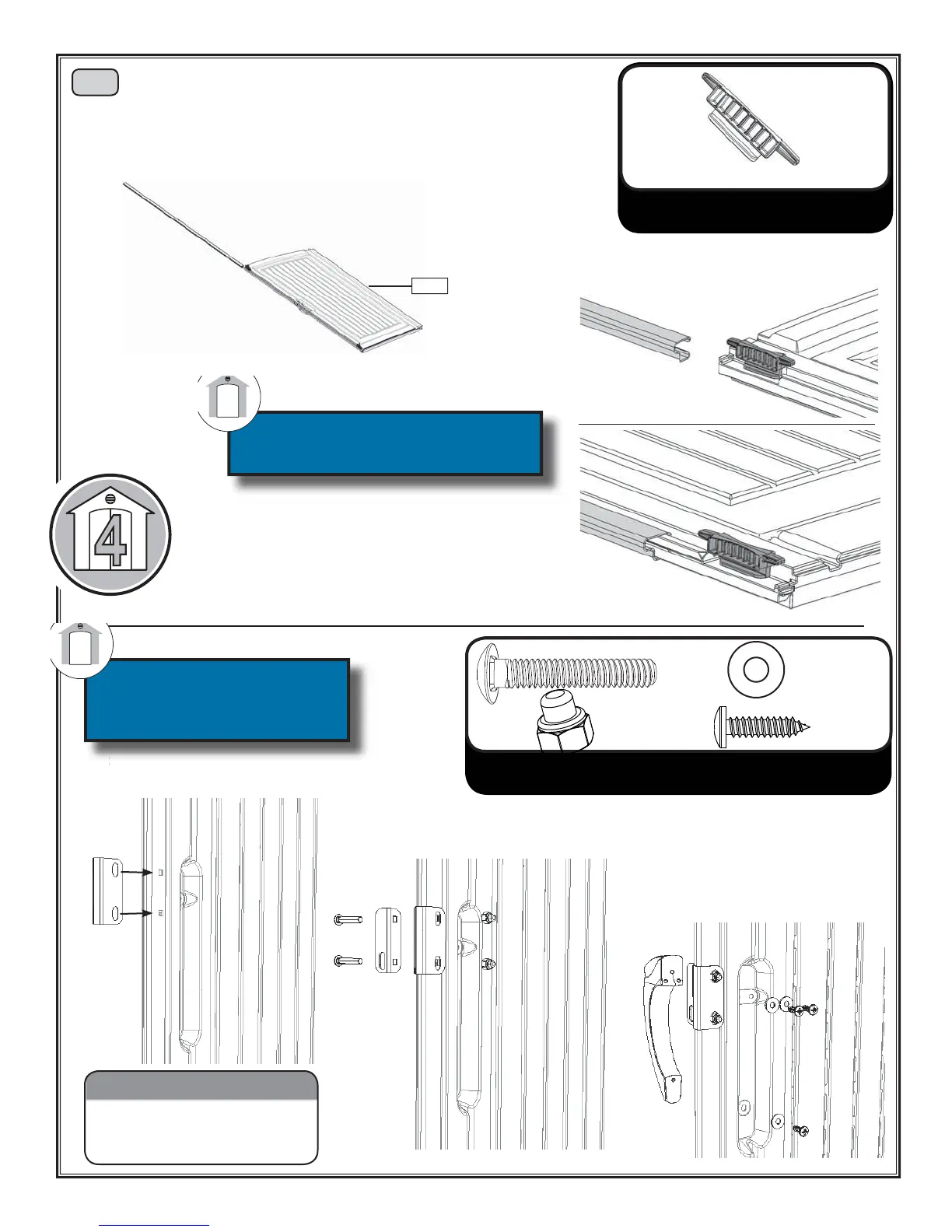

Left Door Assembly
7.1: Rest Left Door (118) with front side down. Position Deadbolt Latches
(HM) in slots at top and bottom of door then slide Door End Channel (AE)
onto the door.
7.2: Slip the Strike Plate (HW) over the Left Door
and align the holes.
7.3: Attach the Left Door Latch (HT) to
the Strike Plate with two (2) Carriage
Bolts (HC) and two (2) Cap Nuts (HL).
HL (2)
PB (3)
VC (3)
Hardware Bags:
1033168
7/16” Wrenches (2)
Hardware Bags:
1033168
Rubber Mallet
(Not Actual Size)
HM (2)
PB
PB
Door End Channel fi ts onto door
with the fl at side up (facing the
Dead bolt Latches).
CAUTION
Do not overtighten. Overtightening
may damage parts and void
warranty.
Back of
Door
7.
2:
S
lip the
S
trike Plate
(
HW
)
over the Le
You may need to nudge the
Door End Channel to make
the holes line up with the
gap in the door.
BC
VC
VC
HC (2)
7.4: Attach the Left Door handle
using three (3) Washers (VC) and
three (3) Screws (PB).
HLHC
HW
HT
Drill/Screwdriver
118
AE
TOP
BOTTOM
HM
HM
