Lifetime 6418 - Right Door Assembly; Attach Right Door Handle and Lever

14
8

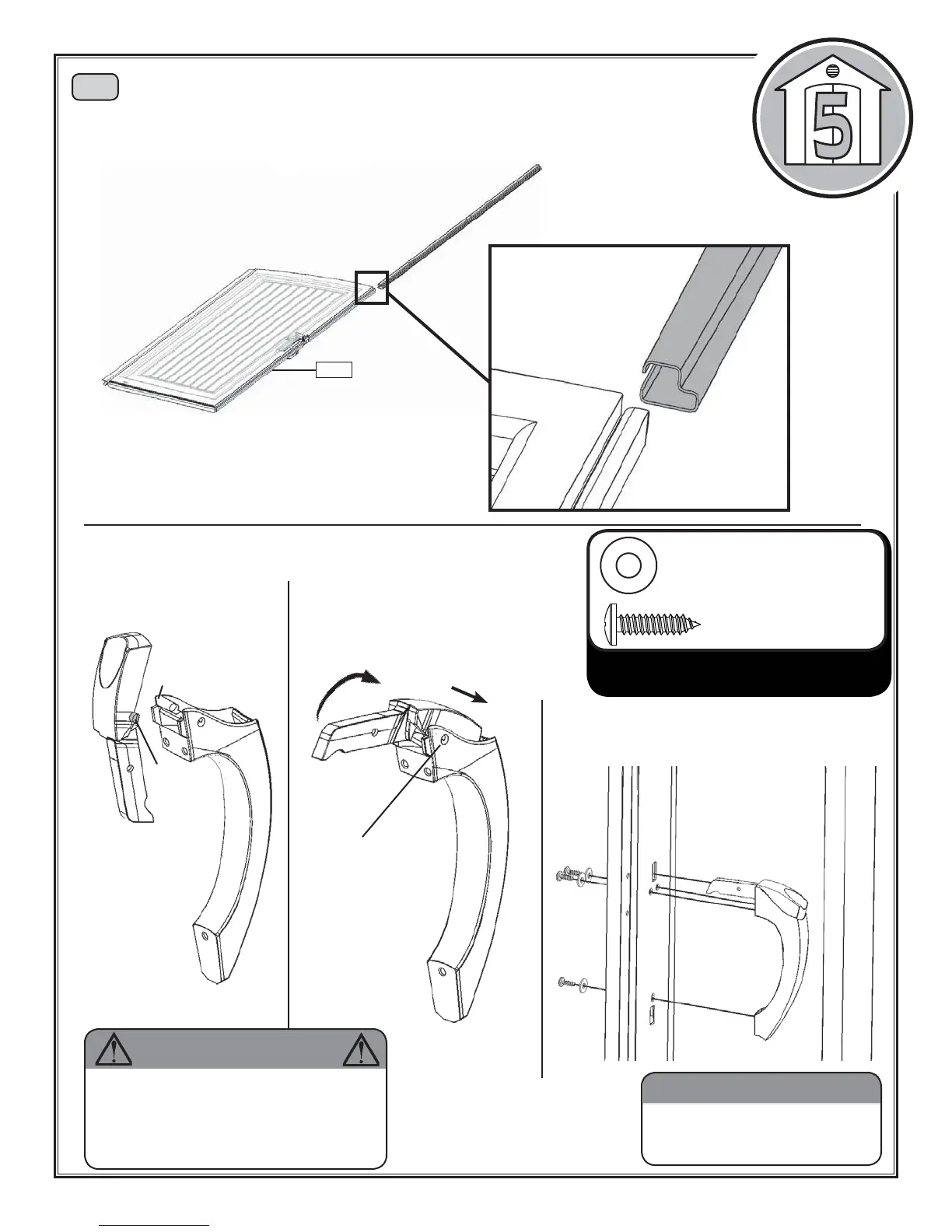

Right Door Assembly
8.1: Rest Right Shed Door (119) with front side down, then slide Door End Channel (AE)
onto the door.
PB (3)
VC (3)
Hardware Bags:
1033168
Drill/Screwdriver
Back of
Door
CAUTION
Do not overtighten. Overtightening
may damage parts and void
warranty.
8.2: Fit Thumb Lever
Knobs into Handle Grooves.
8.3: Rotate the Thumb Lever into
the handle and slide forward until
the knobs fi t into the holes in the
handle.
8.4: Attach the Handle and Thumb Lever to
the Door using three (3) Washers (VC) and
three (3) Screws (PB).
PB
VC
PB
VC
HG
BB
HG
BB
Knobs snap into
Holes
HG
BB
Knob
Groove
AE
119
WARNING
Do not overtighten the Cap Nut. If the end
of the Bolt breaks through the plastic cap,
call our Customer Service Department.
Exposed threads on the end of the Bolt
may cause serious injuries.
