15
Hardware Bags:
1033168
7/16” Wrenches (2) Screwdriver
HH (2)
HI
HA
HS
You may need to nudge the Door
End Channel to make the holes
line up with the gap in the door.
HH
HR
HB

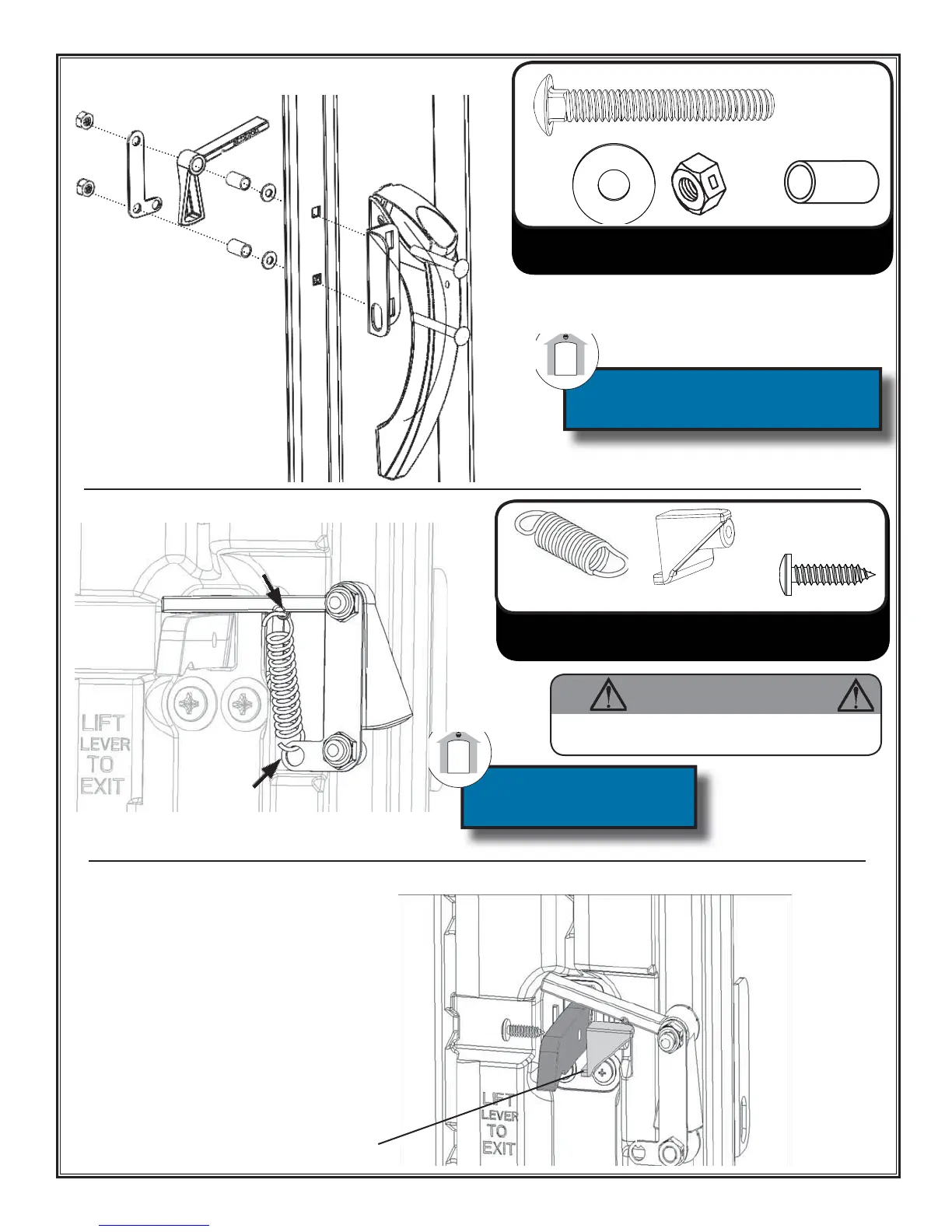

HB (2)8.5: Attach Door Handle hardware to Right Door.
HX
HX (2) HR (2)
8.6: Attach Door Spring (HD) to handle assembly. Set
the door aside.
Hardware Bag: 1033072
(Not Actual Size)
Use pliers to pull spring
down and hook into
bottom hole.
HA
HI
8.7: Line up the hole in the Latch Block (XX) with the hole in the Thumb Lever (HG) and screw into place.
Note: The Spring is not shown in this
illustration in order to better show the cor-
rect placement of the Latch Block.
HD (1)
PB
XX
The lip of the Latch Block (XX) fi ts under the
Thumb Lever (HG).
HG
PB (1)
XX (1)
(Not Actual Size)
HD
WARNING
When pulling on spring, use protective eye
glasses to help prevent serious eye injury.
Screwdriver
Safety Glasses
To Next Page
