Lifetime 6418 - Front Gable Assembly; Install Gable Support and Vent

16
9

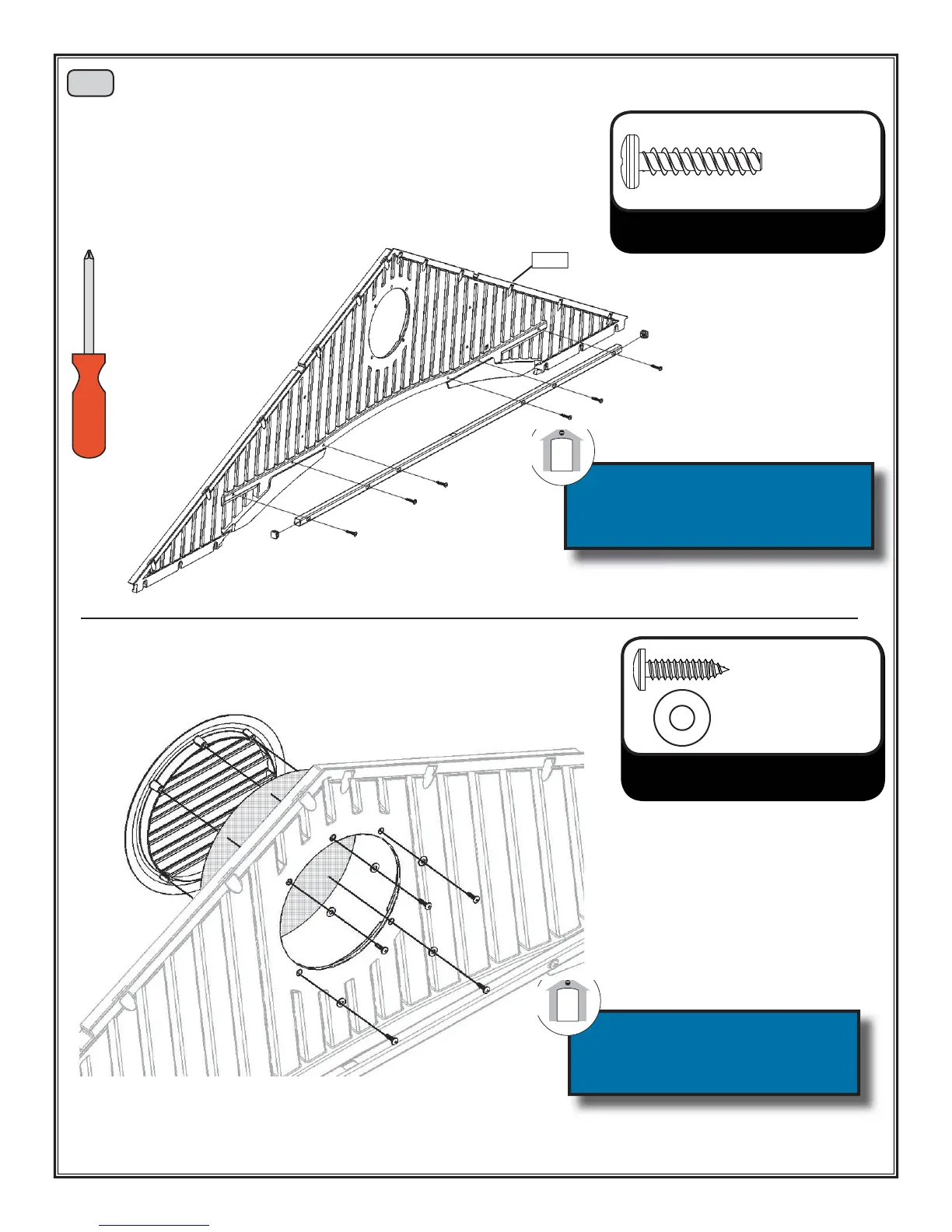

9.1: Insert End Plugs (GB) into ends of Gable Support Square Tube (AF).
Attach Gable Support Square Tube to Front Gable (111), and secure with
Screws (GA).
9.2: Install Vent (VA) and Screen (VB) into the Front Gable using Screws
(PB) and Washers (VC).
Hardware Bags:
1020803
GA (6)
Hardware Bags:
HH11900
PB (5)
VC (5)
The Square Tube must be oriented
with the fl at rectangle hole up, and
the fl at oval holes facing away
from the gable.
Only use a hand
screwdriver on
this step
GB
AF
Second person should apply
pressure on opposite side of
the wall for easy insertion of
screws.
Front Gable Assembly
GA
GA
Drill/Screwdriver
Drill/Screwdriver
PB
VC
VB
VA
GB
111
