A. Keep the hardware bags and their contents separate. If any parts are missing, call our Customer Service
Department.
B. Test fit all Bolts by inserting them into their respective holes. If necessary, carefully scrape away any excess
powder coating buildup from inside the holes. Do not scrape away all of the powder coating. Bare metal may
rust. You may need to pound some Bolts into place with a hammer or mallet.
Funnel
Safety Glasses
(1)
7/16”
(2)
Scrap Wood
(1)
SandWater Source
BQB-Ball Pump
& Needle
(145 lbs. (66 kg))
*Two adults required to complete assembly*
PARTS & HARDWARE LIST
ID DESCRIPTION QTY
ALG Pole Section 3
AZM Base 1
AZX Base Plate 1
AZT Ball/Rope/Clasp Assembly 1
BUG TETHERBALL HARDWARE BAG
AZU 1/2” x 1.9” Metal Spacer 1
AAS 1/4”-20 x 2 3/4” Hex Bolt 1
AZP 1/4”-20 Nylock Nut 3
AZW 1/4”-20 x 5 1/2” Carriage Bolt 2
AZQ 2” Expanding Pole Cap 1
AZR 2” Pole Cap Wedge 1
BUF Washer Collar Link 1
ABD 5/16” Flat Washer 1
AYT 5/16”-18 Hex Nut 1
EQX 5/16”-18 x 3” Hex Bolt 1
AEF Base Plug 1
AZS Split Collar 2
BCA Top Cap 1
BQB Ball Pump and Needle 1
GGG Base Cap 1
GGG Rubber Gasket 1

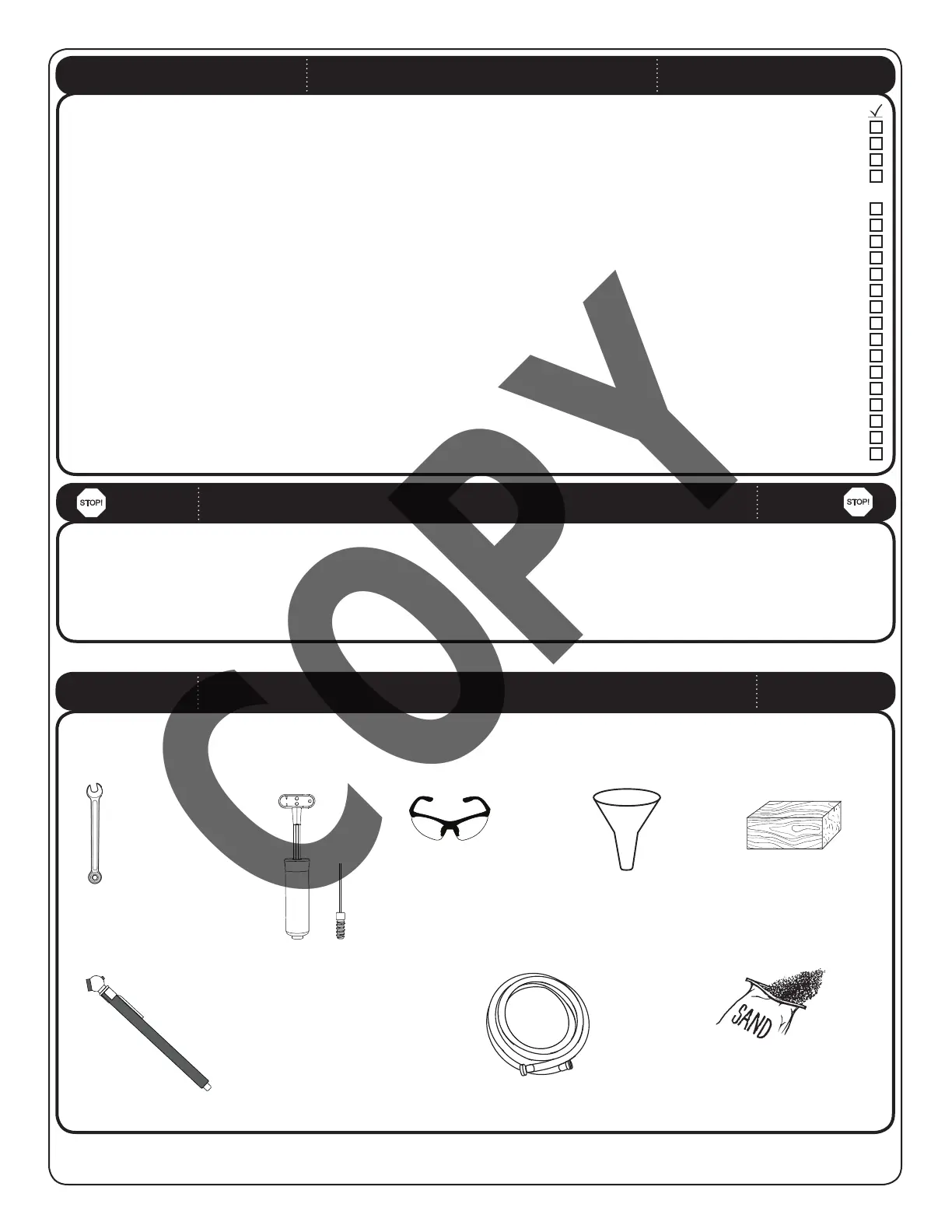

TOOLS & MATERIALS REQUIRED
BEFORE BEGINNING ASSEMBLY
(1 for each person)
Pressure Gauge
5
Tools & Materials not included unless otherwise indicated
(1, included)
To Next Page
