Important: before any installation, maintenance and clean the fixture, please
confirm the power supply is cut off!
Power supply connection
The power cord connection as follows:
L = (live wire) brown wire
E (ground) = yellow/green double color line
N =(middle line) blue line
Connecting power supply, please pay attention to the power supply voltage
and frequency should be marked on the voltage and frequency of fixture.
When more than one moving head light used at the same time, it is
recommended that the power of the fixture, respectively connection, this can
control the fixture ON/OFF separately.
Important: Connect to the power supply, the ground (yellow/green line)
should be safety grounding, electrical installation shall comply with all
relevant standards
2. Function Setting (LED display instruction)

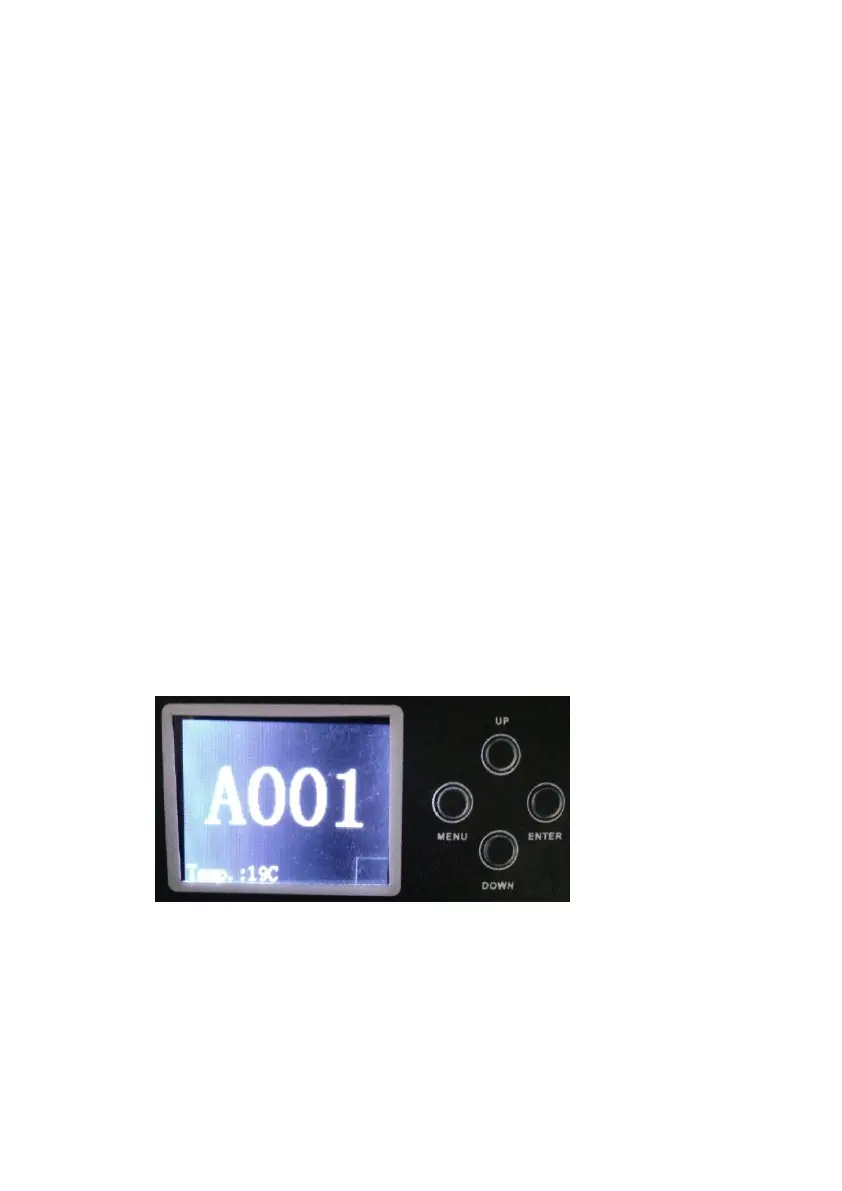

Mode 1: A001 is factory default setting. In this mode receive DMX512 signal
control. Press ENTER to set ID address. Use UP or DOWN to change the
value of ID address, then press ENTER to save.
