Operation:
All connections of the device should be made before switching on. Use only high-quality cables that
are as short as possible for the connections.
DMX mode:

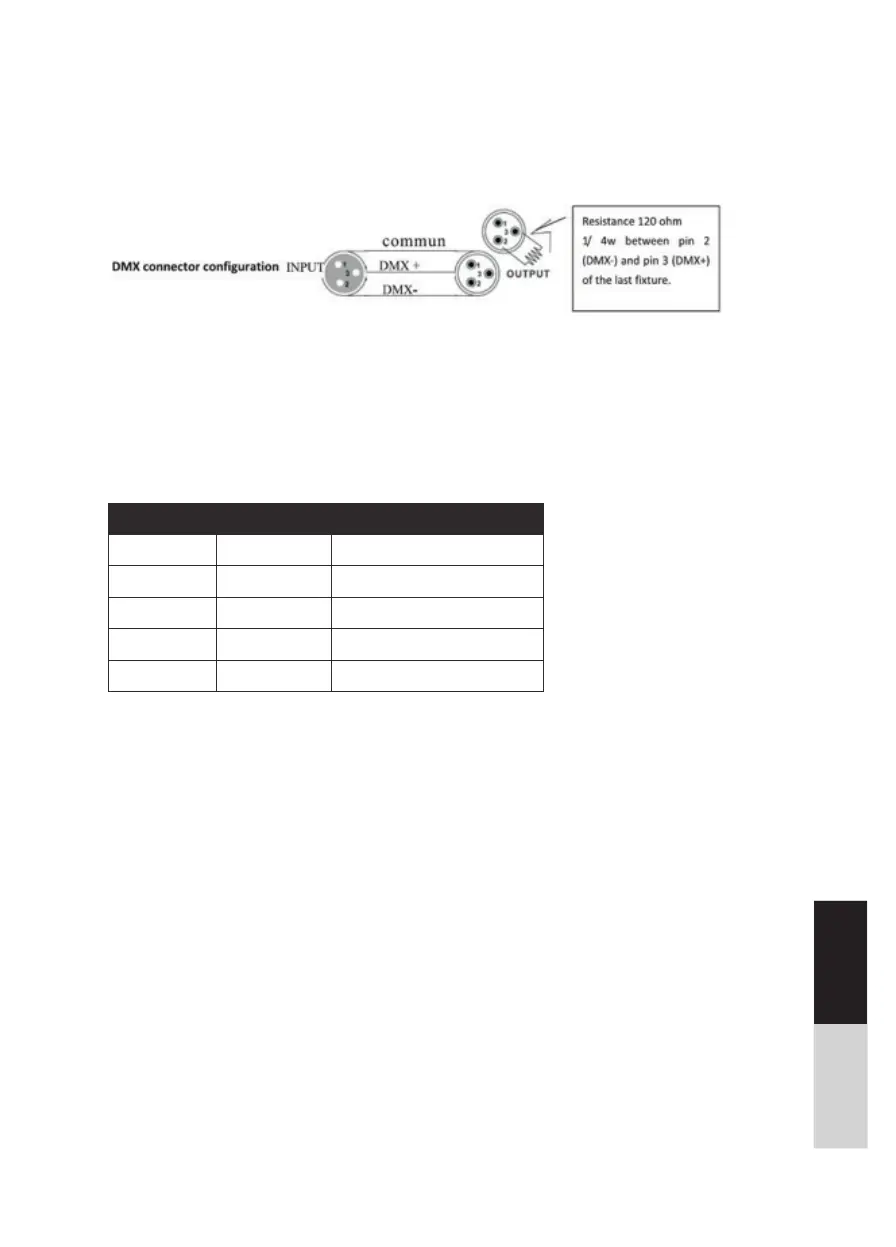

Connect the DMX input of your device to the DMX output of your DMX controller, your DMX
software or the DMX output of a device already in your DMX chain. Always use DMX cable with a
110 Ohm resistor for this connection. Address the device according to your DMX confi guration. The
following tables show the respective DMX modes of the individual devices with the corresponding
values and functions:
5-Channel DMX Mode:
Channel Value Function
1 000-255 Master Dimmer
2 000-255 Red Dimmer
3 000-255 Green Dimmer
4 000-255 Blue Dimmer
5 000-255 White Dimmer
