6 Installation
Installation
The Lytemode ILS Network consists of a single CAT5e cable
connecting all ILS modules in a daisy chain manner. All units
connect to the network using a 9-pin connector (included).
To install:
Step 1. Unpack unit and inspect for any signs of shipping damage.
Ensure that two mounting screws are included.
Step 2. Connect ILS Network Cable to 9-pin connector at back of
Classic Digital Keypad.

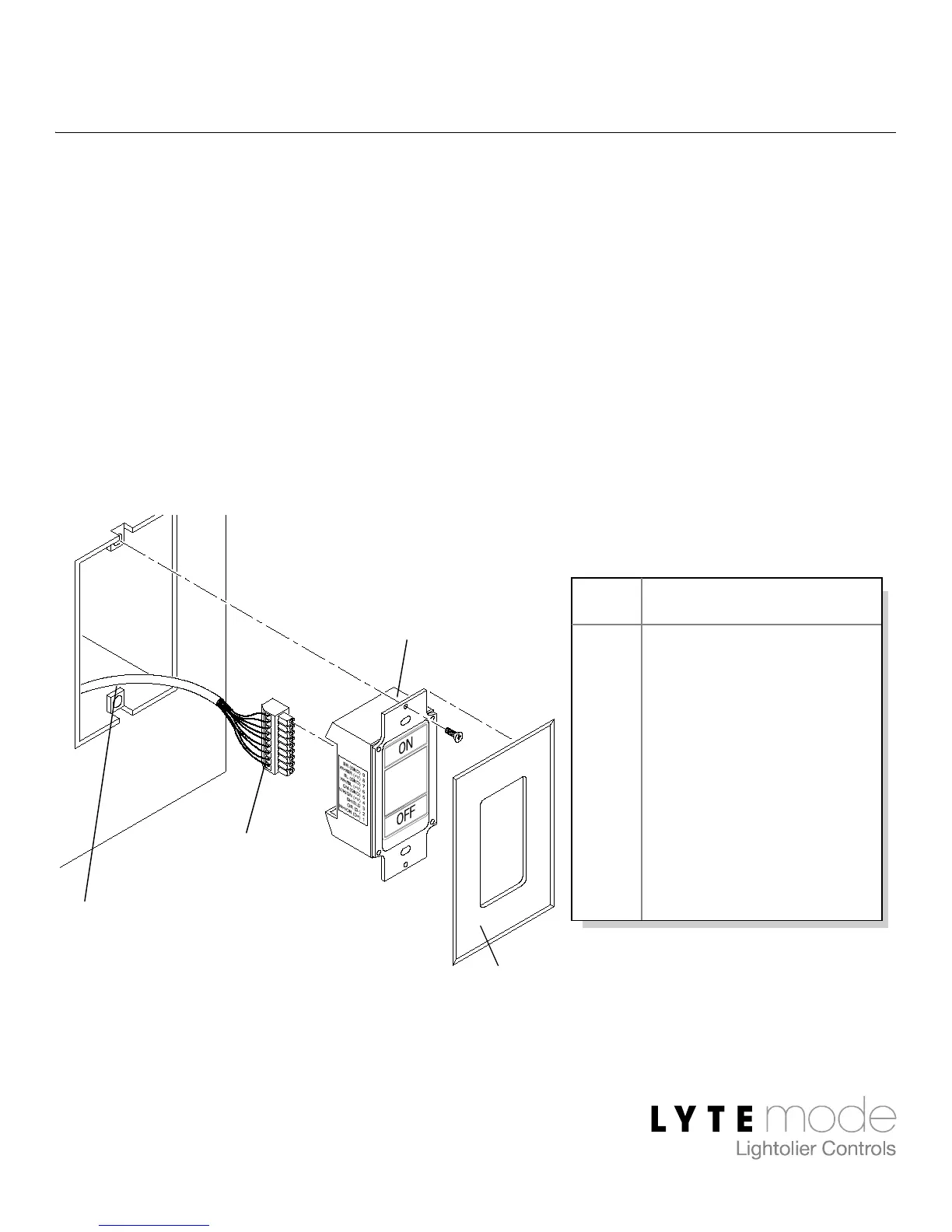

Step 3. Insert unit into single-gang, standard deep box (not
included). Secure with two supplied mounting screws.
1WH/OR (+ Data)
2 OR (- Data)
3SHIELD
4WH/GN (+ Volts)
5 GN (Ground)
6WH/BL (+ Volts)
7 BL (Ground)
8WH/BR (+ Volts)
9 BR (Ground)
9-Pin Connector Wiring
PIN SIGNAL
9-Pin
Faceplate
Connector
Classic
Digital Keypad
Single-Gang, Standard
Deep Box (not included)
To Next Page
