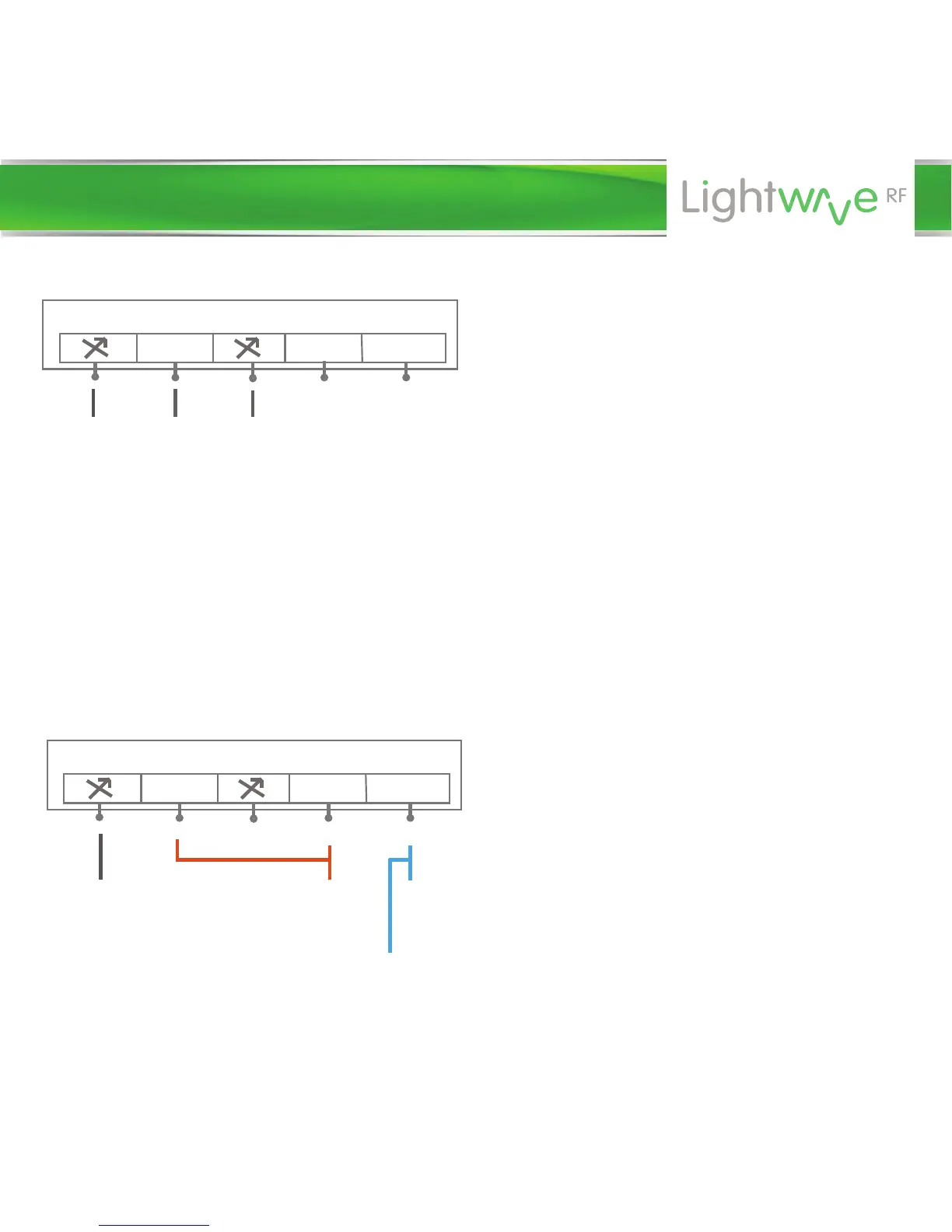

Installation
COM L N
L N
If the relay is being used to control
(interupt) a mains powered circuit
(max 500W load), then power
must be taken from the relay’s
main live terminal via a jumper
connection to the common
terminal (see diagram).
The neutral terminal must now also
accommodate an incoming and
outgoing connection to the mains
circuit.
COM L N
L N
NOTE: Because of the extra ‘stop’
command, a LightwaveRF ‘On
/o/stop Switch’ or the
LightwaveRF App and Lightwave
Link will be required to operate this
setup.
Connecting the Inline Relay to a circuit requiring mains power
Circuit
live wire
Circuit
switched
live 1 (to
device)
Circuit
switched
live 2 (to
device)
Circuit
live wire
Circuit
switched
live 1 (to
device)
Mains
neutral
Mains
live
Neutral
from
device
